Version 3.0.0 Extended Release Notes

These are the extended release notes. The official release notes are found here.

Purpose and scope of pywatershed version 3.0.0

These notes summarize the more detailed What’s New for version 3.0.0 in the documentation.

The primary new capabilities introduced in this release are stream temperature simulation following the PRMS methodology and simulation of irrigated agriculture based on GSFLOW. Supporting and additional new capabilities include energy budgets (alongside the existing mass budgets), dynamic transpiration and frost processes, model restart, and a flexible Output class for output collection and statistics.

Stream temperature

The new PRMSStreamTemp and PRMSStreamTempHumidityCBH classes simulate stream temperature using the PRMS stream temperature methodology, computing water temperatures based on energy balance in stream segments. The latter class accepts time-varying humidity inputs on the HRUs while the former accepts a mean monthly humidity for each segment. Optional energy flux tracking and budgeting (on by default) computes 11 energy flux components including advective heat transport, surface energy exchange, and internal sources.

The stream temperature classes take a stream shade class as input on initialization, either PRMSStreamShadeConstant, which works from summer and winter shade fractions and segment latitude, or PRMSStreamShadeDynamic, which computes shade dynamically from topographic and vegetation parameters using solar geometry calculations, the default PRMS behavior when stream_temp_shade_flag = 0.

The stream temperature classes also require one of PRMSHydraulicGeometryFull or PRMSHydraulicGeometryWidthOnly as an upstream process to provide the hydraulic geometry variables needed for the energy balance. The former computes flow-dependent width, depth, area, and velocity using power-law relationships; the latter uses PRMS default values for the depth parameters, matching PRMS 5.2.1 behavior.

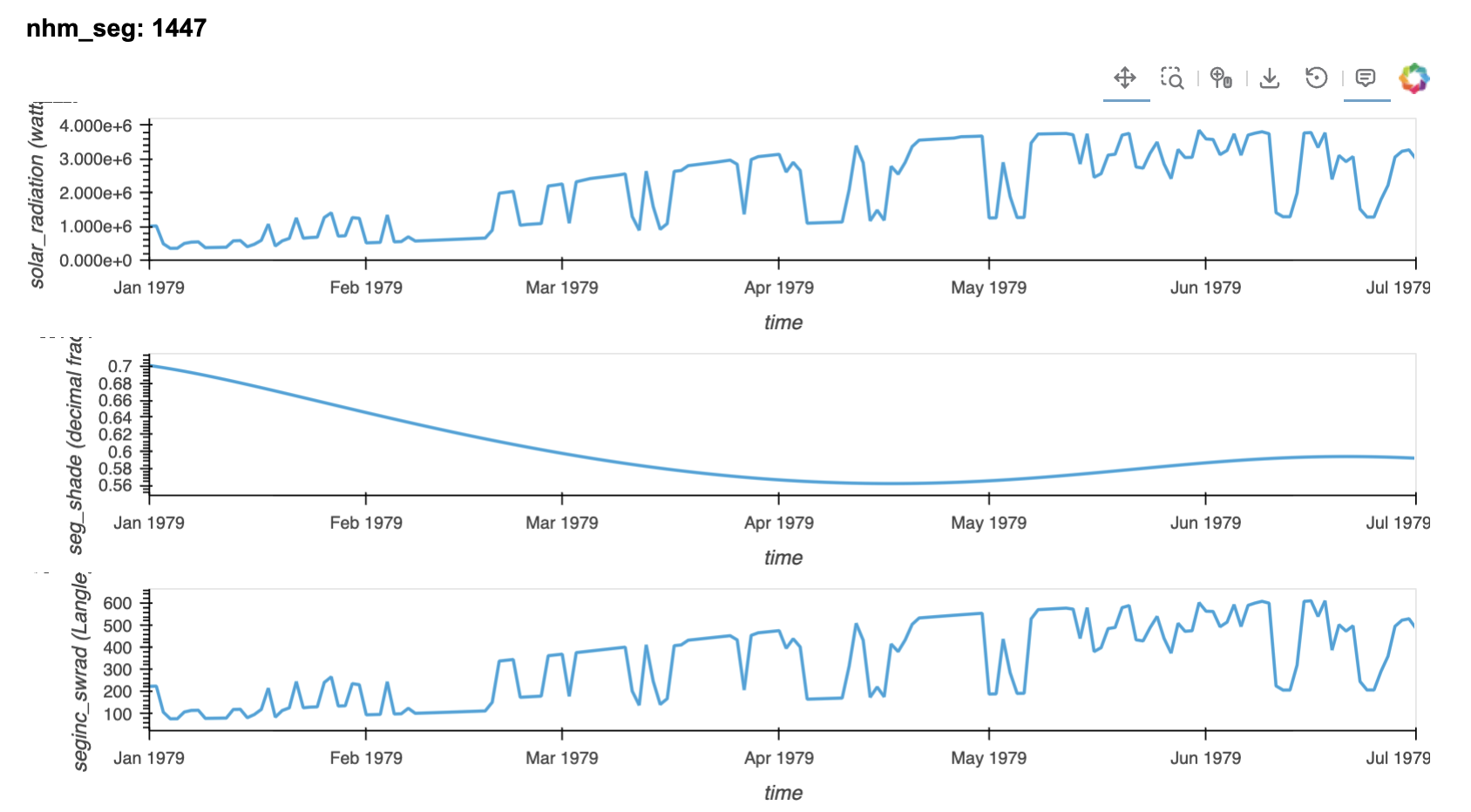

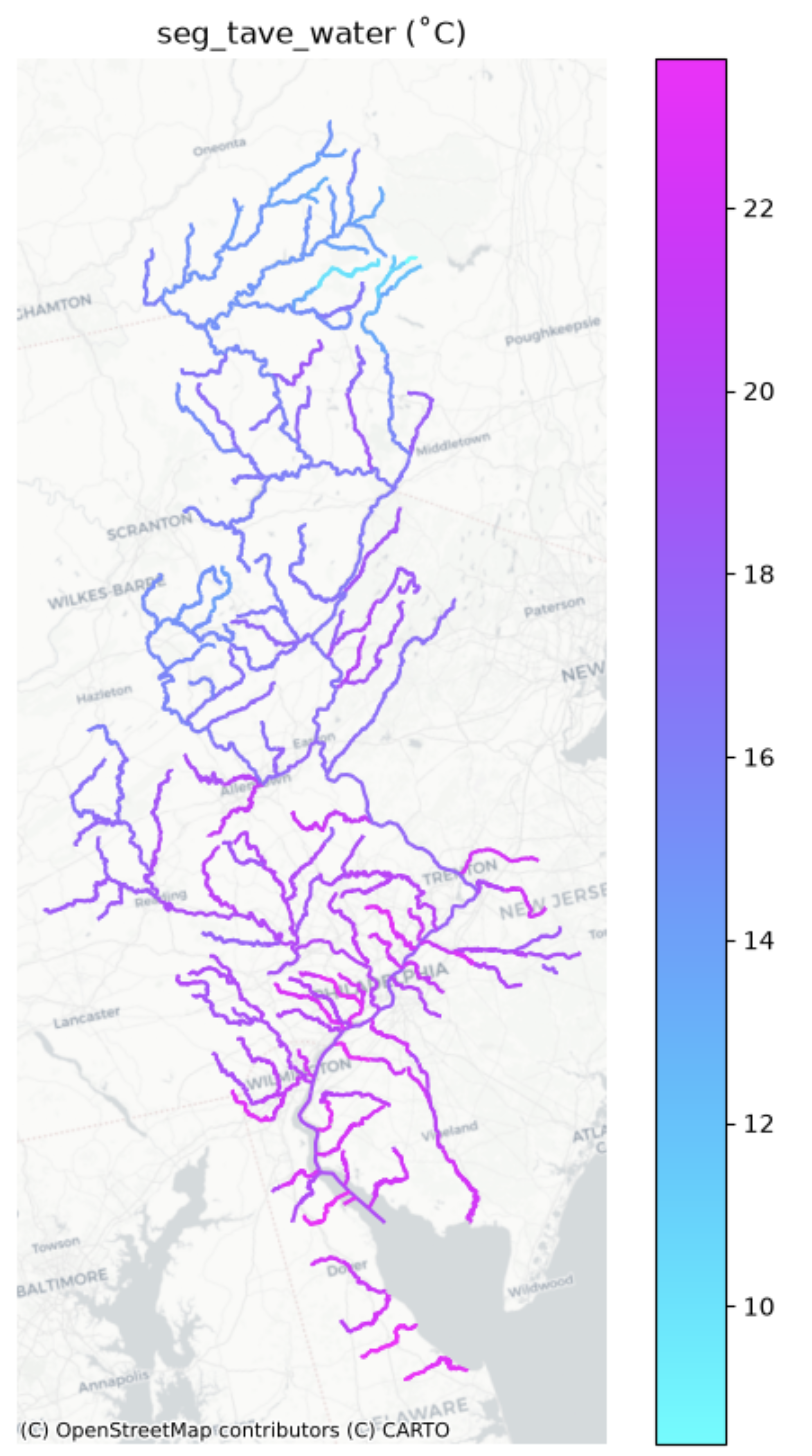

These capabilities are demonstrated as part of the NHM configuration in notebooks 01_multi-process_models.ipynb and 02_prms_legacy_models.ipynb. The figures below show example output created by these notebooks: mean stream temperature on the Delaware River Basin (left) and time series of shade and radiation terms for a single segment (right).

In the course of this work, several bugs were found and corrected in the stream temperature code of PRMS 5.2.1.1: humidity CBH files were skipped when selected for use, seg_humid was not zeroed each timestep and erroneously accumulated, and division by HRU area was repeated multiple times. The PRMS source contained in the pywatershed repository was corrected and pywatershed matches the corrected code.

Agricultural water use

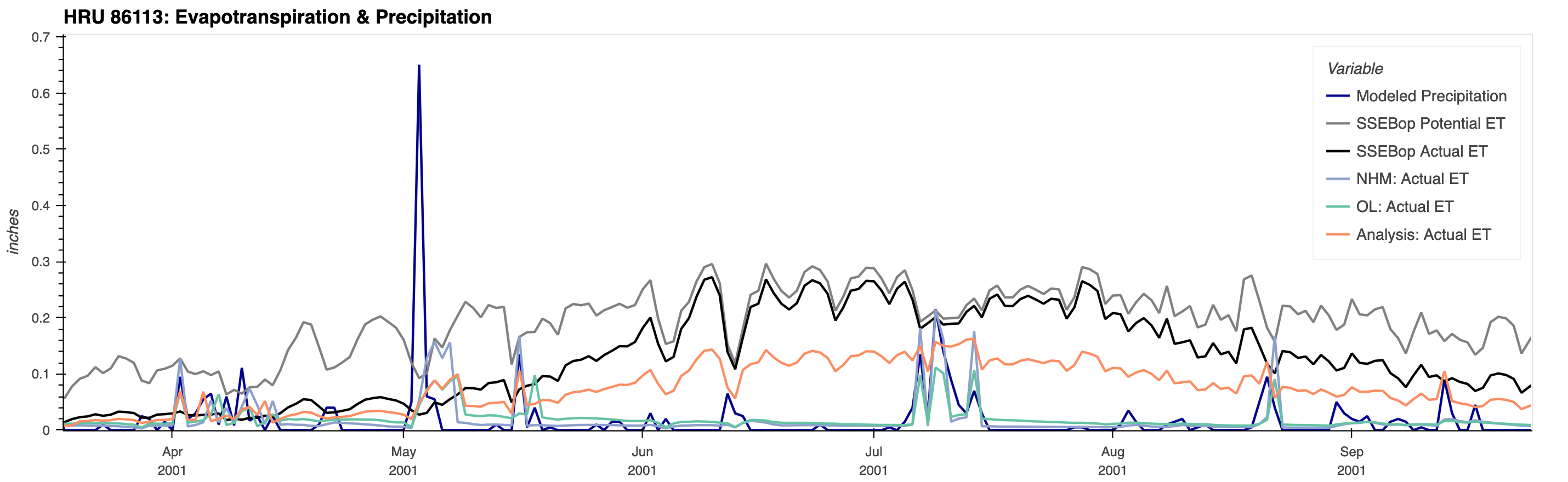

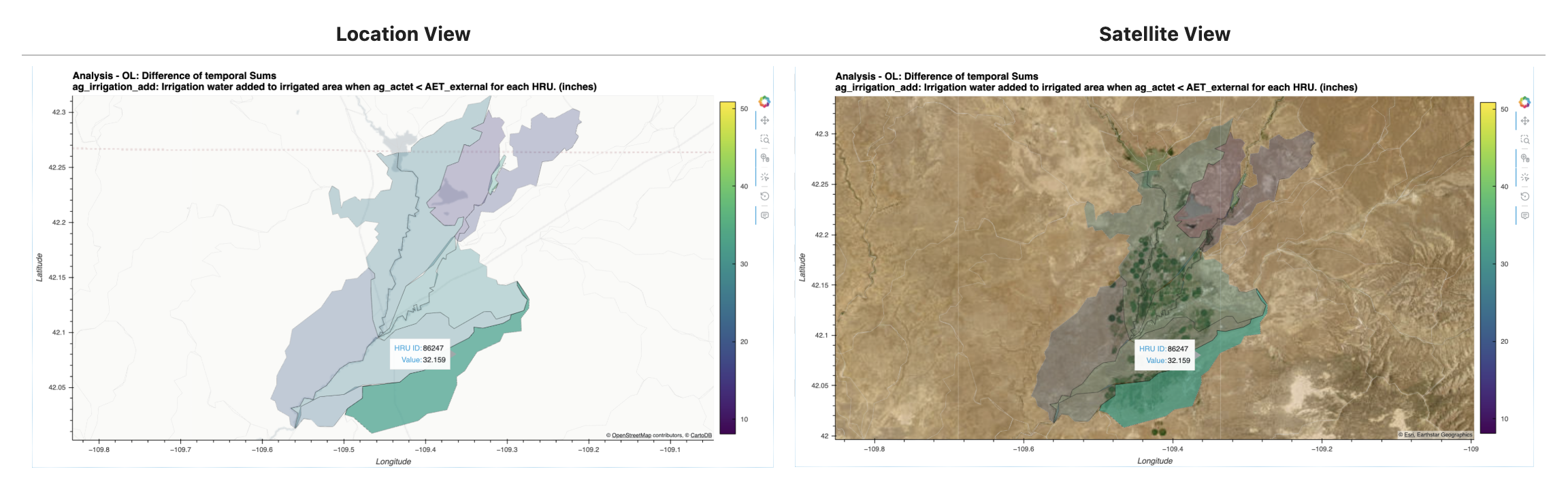

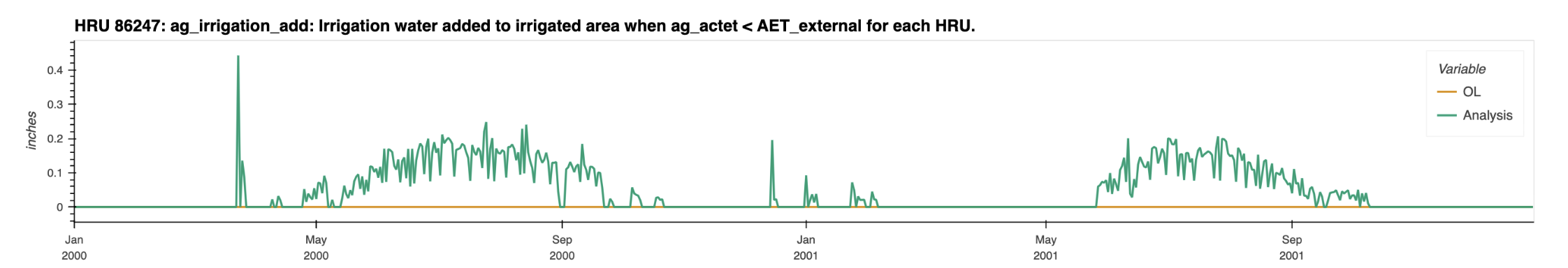

New agricultural water use classes enable simulation of irrigated agriculture based on GSFLOW. PRMSRunoffAg extends PRMSRunoff to calculate infiltration separately for pervious and agricultural areas. PRMSSoilzoneAgObsET provides dual-area soil moisture accounting with iterative adjustment of irrigation to match observed actual evapotranspiration. PRMSSoilzoneAg is a simplified version without the observed ET iteration, suitable when ET observations are not available. These capabilities are demonstrated in a new example notebook, 10_ag_irrigation_use.ipynb. The figures below show example output created by this notebook for an irrigated agricultural domain. The first shows location and satellite views of the difference of temporal sums of irrigation water added for each HRU: the “Analysis” (using the observed-modeled ET iteration) minus the open-loop run (“OL”, where ET observations are not used to estimate agricultural water use). The second shows the daily irrigation time series for a single HRU with (“Analysis”) and without (“OL”) the iteration. The third figure shows, for one HRU, simulated actual ET (NHM, “OL”, and “Analysis”) alongside precipitation and SSEBop potential and actual ET. The SSEBop actual ET serves as the “observed” ET targeted by the iteration, though it is itself the output of another model rather than a direct observation.

Energy budgets

The ConservativeProcess class now supports both mass and energy budgets. The new mass_budget and energy_budget properties provide explicit access to each budget type. The legacy budget property is deprecated and will be removed in the next major release; use mass_budget instead.

Transpiration and frost

PRMSAtmosphereTranspFrost implements the transp_frost module of PRMS. PRMSAtmosphereTranspFrostDynamic extends it to accept dynamic (time-varying) fall and spring frost dates from PRMS dynamic parameter files, reproducing PRMS/GSFLOW runs with dyn_fallfrost_flag and/or dyn_springfrost_flag set.

Output collection and statistics

The new Output class provides flexible output collection and statistical analysis for models, supporting HRUs of interest, segments/nodes of interest, and monthly accumulations. It includes Zarr chunked output for efficient large-scale data writing (roughly 6x faster than NetCDF). See the new example notebook 09_model_output.ipynb.

Model restart

The Process class and its subclasses have a new restart capability, allowing runs to be split and continued. See the new example notebook 08_restart_streamflow.ipynb.

Additional FlowGraph functionality

• A new SourceSinkFlowNode class adds or removes flow above some minimum flow parameter as specified by an input data file.
• The StarfitSourceSinkFlowNode allows sources and sinks to interact with storage of a Starfit reservoir/FlowNode.
• The FlowGraph class has a new method plot to show an abstract plot of the FlowGraph.

Additional Model and parameter functionality

• The new staticmethod Model.solve_inputs determines where each process input comes from — another process or a file — from a process list or model dictionary, without instantiating a Model. This is useful for determining the file inputs a model configuration requires, for example when forcing a sub-model from another model’s outputs.
• The Model class can read all inputs from a single NetCDF file as an alternative to the existing option of a directory containing multiple NetCDF files.
• The load() method of PrmsParameters supports reading multiple parameter files, treated as addenda to the first parameter file which contains the dimension information.
• The Control class has a new method set_init_start_times to manage changing these times.

Breaking Changes

The budget_type parameter has been renamed to imbalance_behavior in ConservativeProcess and all its subclasses, in FlowGraph, and in control options. The new name clarifies what the parameter does and is intentionally distinct from the budget quantity. Budget NetCDF output filenames now include the quantity type: mass budgets are named ProcessName_mass_budget.nc instead of ProcessName_budget.nc, and energy budgets use ProcessName_energy_budget.nc.
