Examples of using the lsmaker.utils module to export and visualize results from a GFLOW simulation

[1]:
from pathlib import Path
import matplotlib.pyplot as plt
import rasterio
import lsmaker
import geopandas as gpd

plt.rcParams['figure.figsize'] = 10, 10
[2]:
# GFLOW model parameters for test case
solver_x0 = 671467.1 # origin of GFLOW solver coordinates in NAD 27 UTM 15
solver_y0 = 4997427.91
epsg = 26715 # projected coordinate system reference
inpath = Path('../lsmaker/tests/data/')
dem = inpath / 'dem.tif' # dem for model area
clipto = inpath / 'testnearfield.shp' # extent for output rasters
grd = inpath / 'test.grd' # Surfer GRD file from GFLOW solution
xtr = inpath / 'test.xtr' # Extract file from GFLOW solution
output_folder = Path('temp') # folder for writing output rasters

# make the output folder if it doesn't exist
output_folder.mkdir(exist_ok=True)

output_streamflow_shapefile = output_folder / 'streamflow.shp'

make a shapefile of the streamflow results

[3]:
lsmaker.utils.write_streamflow_shapefile(xtr, outshp=output_streamflow_shapefile,
                                         solver_x0=solver_x0, solver_y0=solver_y0, epsg=epsg)
/home/runner/work/linesink-maker/linesink-maker/lsmaker/utils/gflow_results.py:202: UserWarning: Column names longer than 10 characters will be truncated when saved to ESRI Shapefile.
  gdf.to_file(outshp, **kwargs)

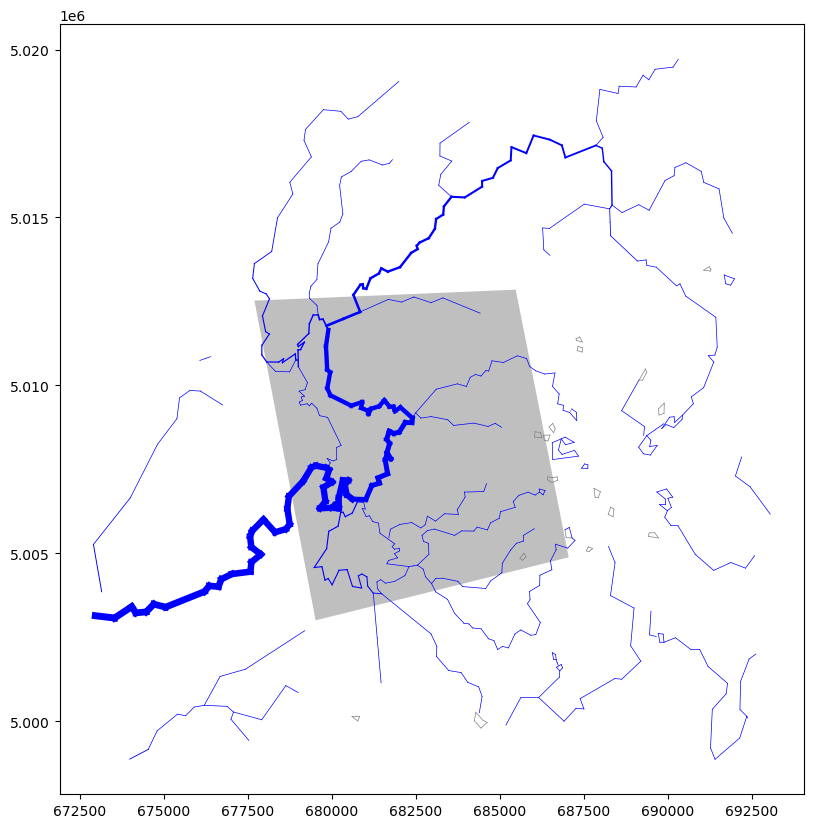

read in and plot the streamflow

[4]:
df = gpd.read_file(output_streamflow_shapefile)
df.head()
[4]:
x1 y1 x2 y2 spec_head calc_head discharge width resistance depth baseflow overlandfl BC_pct_err label geometry
0 687767.261456 5.005139e+06 687666.619544 5.005053e+06 1457.01 1456.764 -6.366638 7.766733 0.3 3.0 0.0 0.0 0.042977 LS_000061_0101 LINESTRING (687767.261 5005139.240, 687666.620...
1 687666.619544 5.005053e+06 687582.238712 5.005071e+06 1457.01 1456.474 -13.887300 7.766733 0.3 3.0 0.0 0.0 0.042901 LS_000061_0201 LINESTRING (687666.620 5005053.399, 687582.239...
2 687582.238712 5.005071e+06 687634.670408 5.005190e+06 1457.00 1456.602 -10.304160 7.766711 0.3 3.0 0.0 0.0 0.043006 LS_000061_0301 LINESTRING (687582.239 5005071.270, 687634.670...
3 687634.670408 5.005190e+06 687768.261200 5.005140e+06 1457.00 1456.892 -2.787542 7.766711 0.3 3.0 0.0 0.0 0.043086 LS_000061_0401 LINESTRING (687634.670 5005189.700, 687768.261...
4 688403.589368 5.006317e+06 688378.269632 5.006088e+06 1463.90 1463.847 -1.363574 7.781718 0.3 3.0 0.0 0.0 0.044174 LS_000068_0101 LINESTRING (688403.589 5006316.649, 688378.270...
[5]:
fig, ax = plt.subplots()
maxflow = df.baseflow.max()

def scale(baseflow, lw, min_lw=0.5):
    lw = lw * baseflow/maxflow
    return min_lw if lw < min_lw else lw

def color(baseflow, wet='b', dry='0.5'):
    return wet if baseflow > 0 else dry

# first plot clipto area where flooded heads will be plotted
cp = gpd.read_file(clipto)
cp.plot(ax=ax, color='0.5', alpha=0.5, zorder=-1)

# plot the lines, scaled by baseflow
for i, r in df.iterrows():
    x, y = r.geometry.xy
    ax.plot(x, y, lw=scale(r.baseflow, 5), c=color(r.baseflow))
../_images/notebooks_GFLOW_results_visualization_7_0.png

Make a raster comparing simulated heads to a DEM

  • this can also be examined in a GIS with other data (wetland coverages, dem, etc.)

[6]:
lsmaker.utils.plot_flooding(grd, dem=dem, epsg=epsg, clipto=clipto,
                                  outpath=output_folder,
                                  solver_x0=solver_x0, solver_y0=solver_y0, scale_xy=0.3048,
                                  dem_mult=1/.3048, resolution=(30, 30))
reading ../lsmaker/tests/data/test.grd...
wrote temp/heads_prj.tif.
reprojecting temp/heads_prj.tif...
from:
EPSG:26715, res: 1.31e+02, 1.32e+02
to:
EPSG:26715, res: 3.00e+01, 3.00e+01...
wrote temp/tmp/heads_rs.tif.
reprojecting ../lsmaker/tests/data/dem.tif...
from:
EPSG:4269, res: 9.25e-04, 9.27e-04
to:
EPSG:26715, res: 3.00e+01, 3.00e+01...
wrote temp/tmp/dem_rs.tif.
input raster crs:
EPSG:26715

 clip feature crs:
EPSG:26715

clipping temp/tmp/dem_rs.tif...
wrote temp/tmp/dem_cp.tif
Done.
input raster crs:
EPSG:26715

 clip feature crs:
EPSG:26715

clipping temp/tmp/heads_rs.tif...
wrote temp/heads_cp.tif
Done.
wrote temp/dtw.tif
wrote temp/flooding.tif
/home/runner/micromamba/envs/lsmaker_ci/lib/python3.12/site-packages/numpy/ma/core.py:1020: RuntimeWarning: overflow encountered in multiply
  result = self.f(da, db, *args, **kwargs)

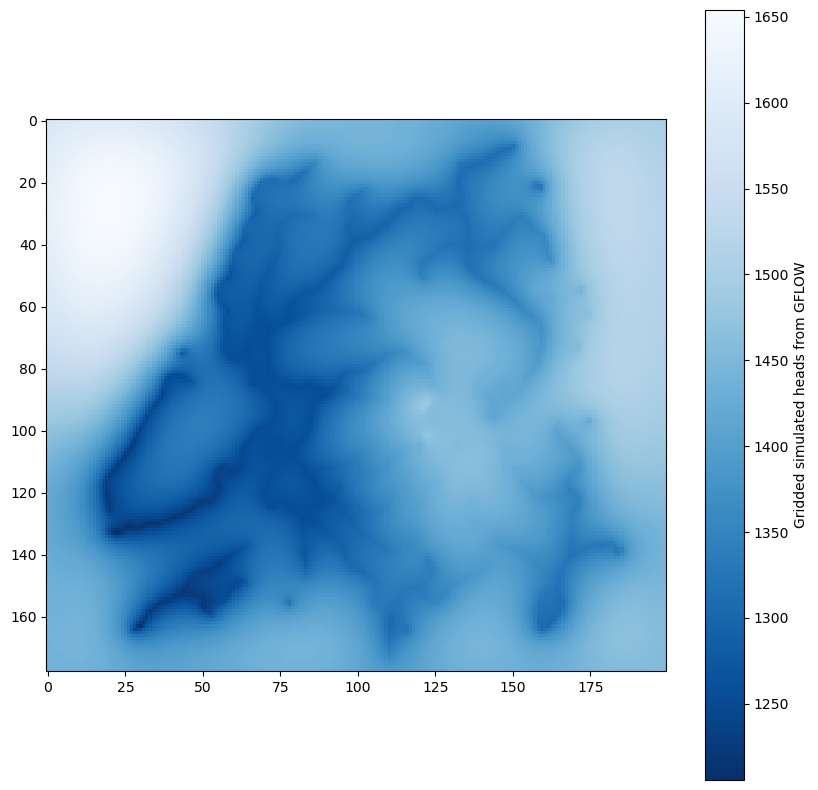

Plot the gridded heads from GFLOW

  • GFLOW limits the resolution to 200 pixels on a side

  • the plot_flooding macro downsamples these to a specified x,y resolution (resolution argument; default is (30, 30), so that information from the DEM is retained when comparing the rasters

  • heads_prj is the projected, but unclipped heads

[7]:
with rasterio.open(output_folder / 'heads_prj.tif') as rst:
    hds = rst.read()
    plt.imshow(hds[0, :, :], cmap='Blues_r', interpolation='none')
    plt.colorbar(label='Gridded simulated heads from GFLOW')
../_images/notebooks_GFLOW_results_visualization_11_0.png

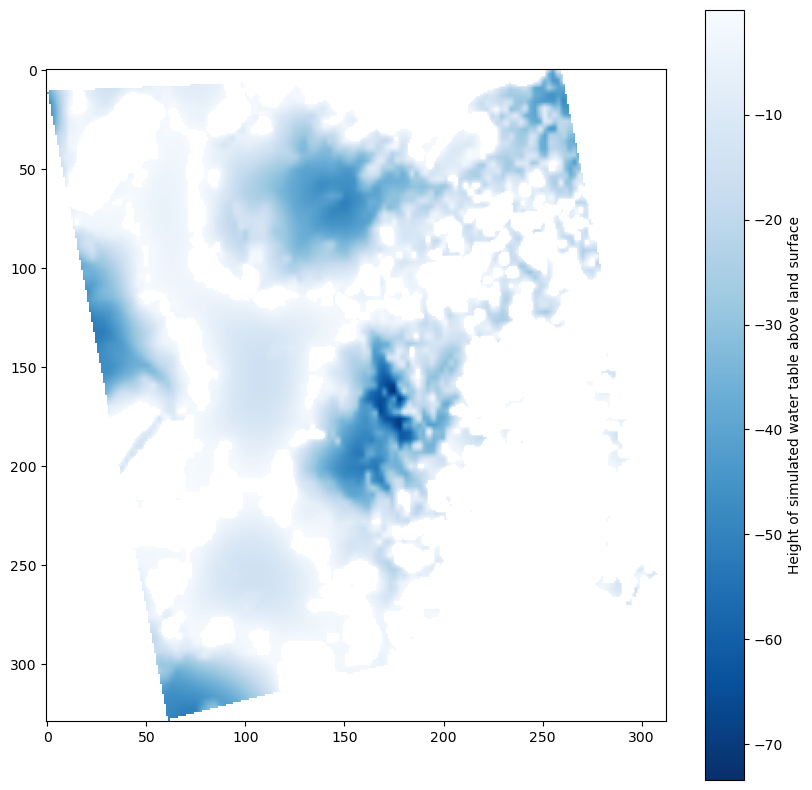

Plot raster of simulated flooded heads

[8]:
with rasterio.open(output_folder / 'flooding.tif') as rst:
    fld = rst.read(masked=True)
    plt.imshow(fld[0, :, :], cmap='Blues_r')
    plt.colorbar(label='Height of simulated water table above land surface')
../_images/notebooks_GFLOW_results_visualization_13_0.png

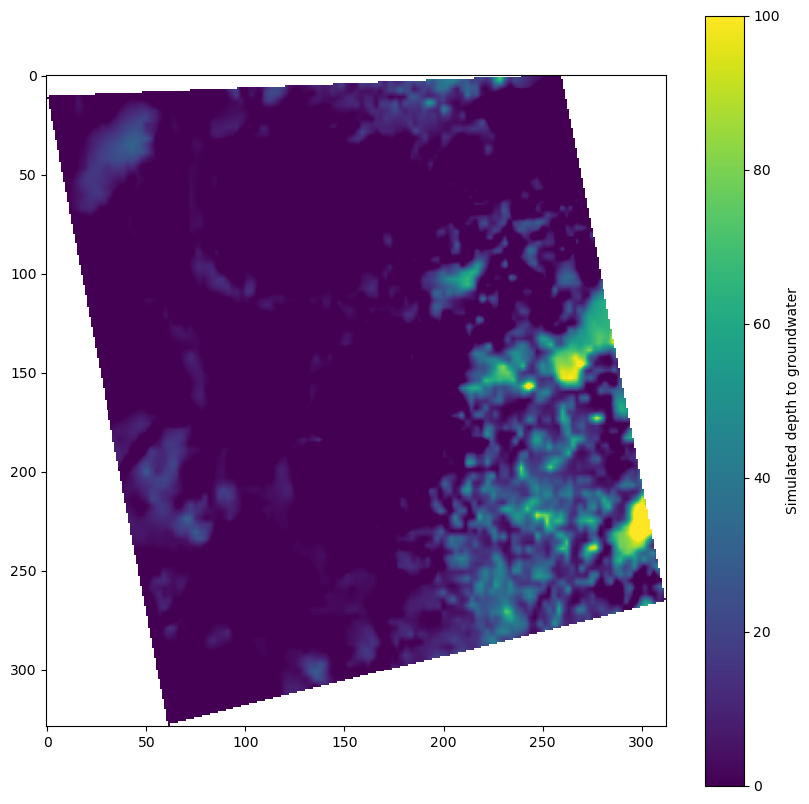

Plot raster of simulated depth to groundwater

[9]:
with rasterio.open(output_folder / 'dtw.tif') as rst:
    dtw = rst.read(masked=True)
    plt.imshow(dtw[0, :, :], vmin=0, vmax=100)
    plt.colorbar(label='Simulated depth to groundwater')
../_images/notebooks_GFLOW_results_visualization_15_0.png
[ ]:
