Drainage Area Estimation

Source: vignettes/articles/drainage_area_estimation.Rmd

A fully rendered version of this vignette with figures is available at https://doi-usgs.github.io/nhdplusTools/articles/drainage_area_estimation.html.

get_drainage_area_estimates() combines Watershed Boundary Dataset (WBD) delineations and non-surface-contributing area estimates with National Hydrography Dataset Plus version 2 (NHDPlusV2) catchment areas for the gap between a basin outlet and the nearest upstream HU12. Non-contributing areas captured in HU12 boundaries are included.

This vignette shows output of the function on five basins that span a range of hydrologic settings – from basins where topographic signal dominates to arid, glacial, and endorheic settings where it does not.

How get_drainage_area_estimates() Works

The function produces drainage area estimates by stitching together two kinds of spatial data: HU12 polygon areas for the bulk of the upstream basin and NHDPlusV2 catchment areas for the gap between the gage (or other outlet) and the nearest upstream HU12 boundaries. Because HU12 polygons carry a non-contributing area attribute (ncontrb_a) and non-surface-contributing HU12s can be retrieved from HU10 or HU8 groupings, the estimates separate total drainage area from surface network contributing drainage area.

Algorithm Steps

  1. Resolve the start feature. A Network Linked Data Index (NLDI) feature list (e.g. featureSource = "nwissite", featureID = "USGS-05406500") is resolved to an NHDPlusV2 COMID via the NLDI. An sfc_POINT inside a waterbody triggers a waterbody lookup to find all outlet flowlines.

  2. Negotiate the outlet catchment. For gage-based starts, the function computes where the gage sits along its outlet flowline as a 0–100 measure. This measure determines whether the outlet catchment needs to be split (see Catchment splitting below).

  3. Fetch the upstream network and HU12 pour points. The full upstream flowline network is retrieved along with all HU12 pour points on that network. These pour points mark the downstream outlet of each HU12 watershed unit that drains to the gage.

  4. Identify immediate HU12 outlets. A network navigation finds which HU12 outlets are directly upstream of the gage with no intervening HU12 outlet. These define the boundary between the “HU zone” (covered by HU12 polygon areas) and the “gap zone” (covered by individual catchment areas).

  5. Fetch and assemble HU12 polygons. HU12 polygons are retrieved at three query levels: the specific NLDI-identified HU12 IDs, all HU12s within upstream HU10 boundaries, and all HU12s within upstream HU8 boundaries. The broader queries can capture HU12s that share a parent HU but lack an on-network pour point – common in prairie-pothole and playa-dominated landscapes. A disconnect filter removes HU12s pulled incidentally by the broader queries that are not hydrologically connected. Each level is a superset of the narrower level, and each produces both a total and a contributing-only area estimate.

  6. Compute gap area. Catchment areas between the gage and the immediate HU12 outlets are summed. Split-catchment logic is applied at both the HU12 outlets and (optionally) the gage point.

  7. Assemble scalar estimates. Six drainage area estimates are computed: total and contributing at the HU12, HU10, and HU8 query levels. Each equals the HU12 polygon area sum plus the gap area. A seventh scalar, network_da_sqkm, is the NHDPlusV2 cumulative drainage area at the outlet – a comparison baseline.

  8. NHDPlus High Resolution (NHDPlusHR) estimate (optional). When nhdplushr = TRUE, the function fetches NHDPlusHR flowlines and catchments for the basin bounding box, indexes the start point to the HR network (disambiguating by drainage area), navigates upstream, and sums catchment areas.

Catchment Splitting

When a gage sits partway along a flowline rather than at its outlet, the downstream portion of the catchment does not contribute to the gage. The function calls the NLDI split-catchment service to divide the catchment at the gage point and counts only the upstream portion. The outlet_split_threshold_m parameter (default 100 m) sets the minimum gage-to-outlet distance before splitting is performed; if the gage is closer than this threshold, the full catchment is used.

A parallel split occurs at HU12 outlets: the HU boundary cuts through a catchment, and the portion upstream of the pour point overlaps with HU12 area already counted. The split-catchment service divides this catchment and the upstream overlap is excluded from the gap area to avoid double-counting.

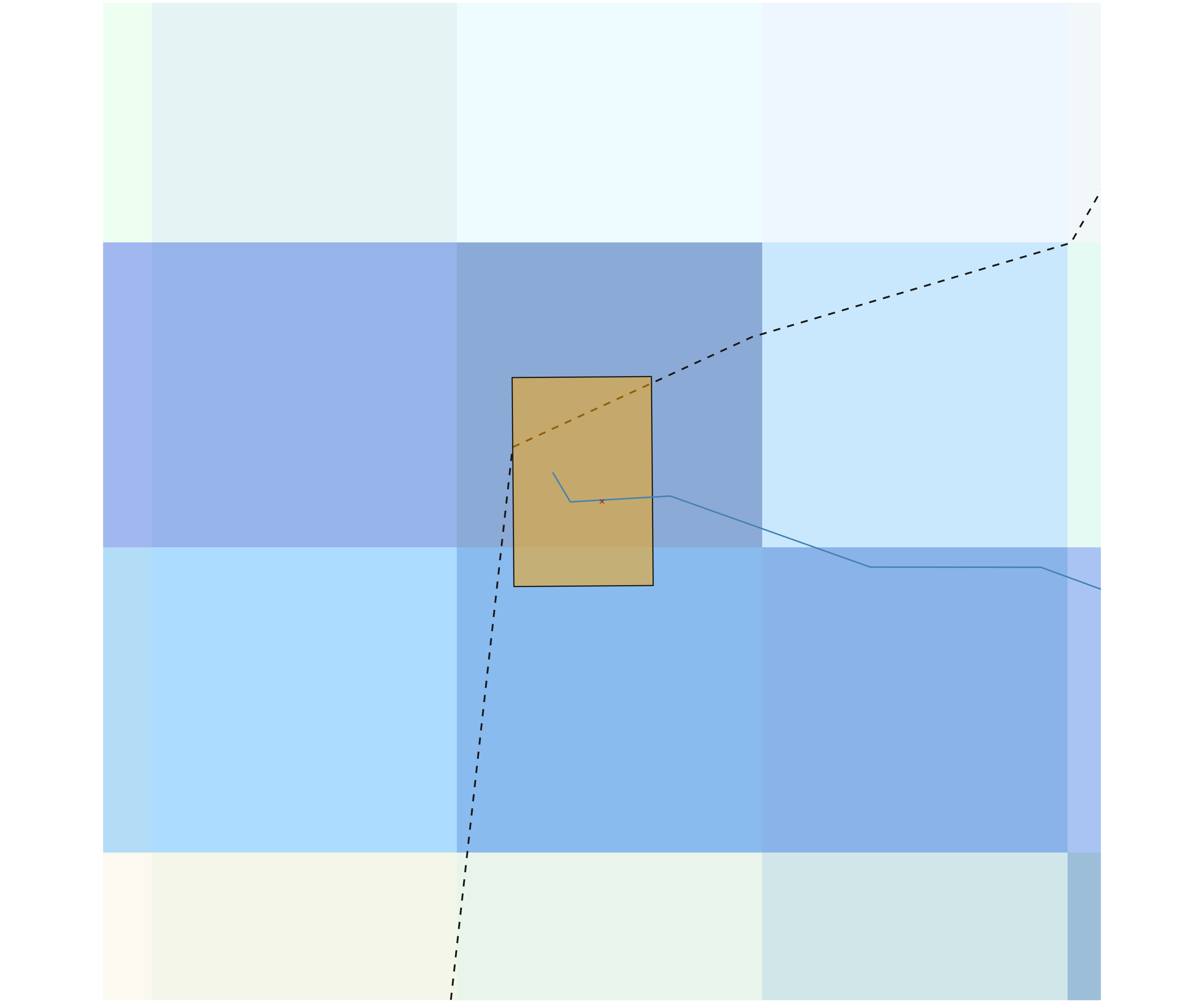

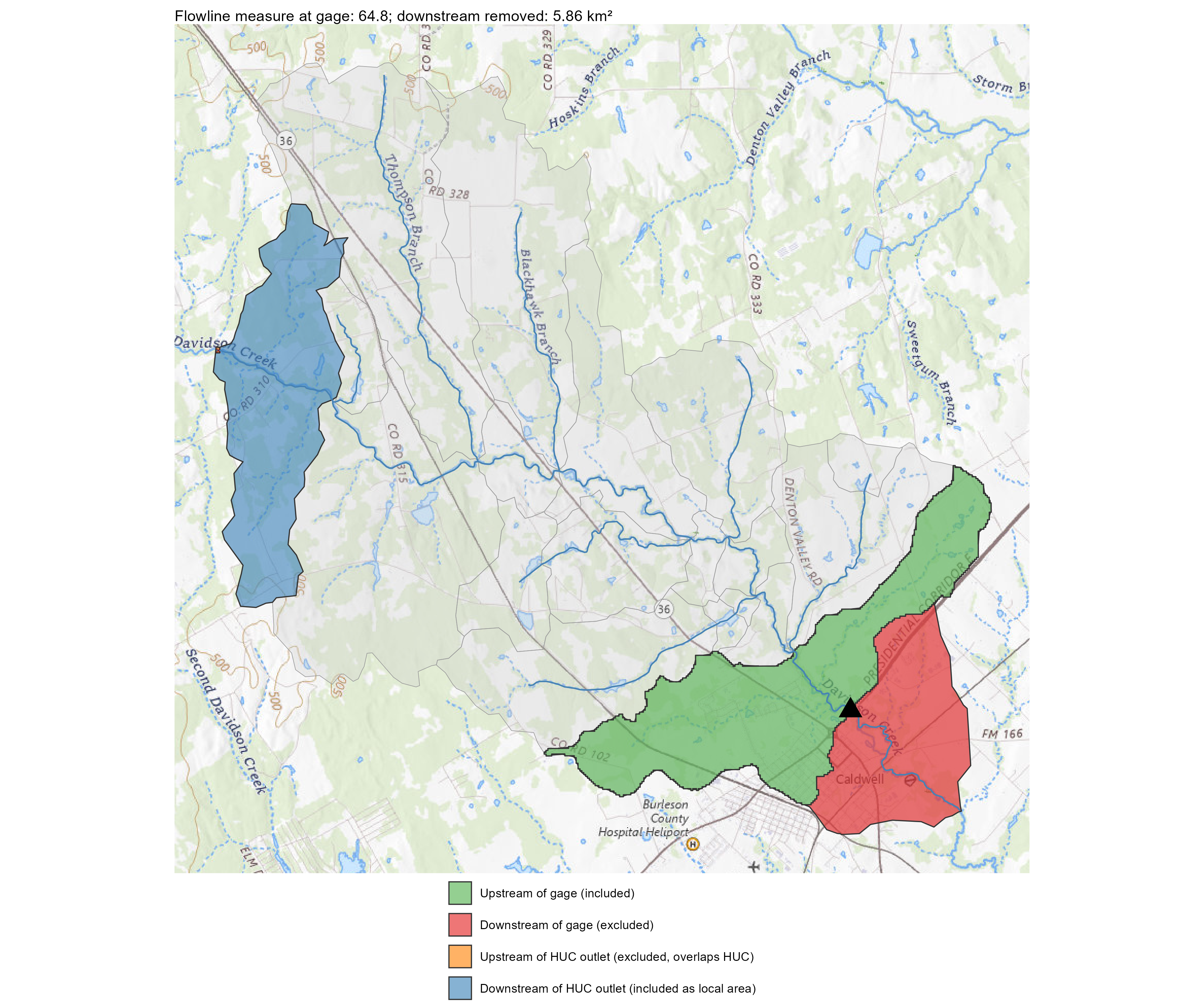

The Outlet Catchment Splitting section later in this vignette illustrates both splits using Davidson Creek (USGS streamgage 08110075).

Running with Local Data

Three parameters reduce dependence on web services:

  • local_navigation = TRUE loads the NHDPlusV2 Value Added Attributes via get_vaa() for network navigation and flowline attribute lookups. Only HU12 pour points are still fetched from the NLDI.

  • huc12_data accepts a pre-loaded sf data.frame of HU12 polygons (e.g. from the WBD National Geodatabase). When provided, all HU12 polygon queries are resolved by subsetting this table locally instead of calling WBD web services. The table must include huc_12 and ncontrb_a columns (case-insensitive).

  • huc12_outlets accepts either a path to a GPKG or a pre-loaded sf data.frame of on-network HU12 pour points. A national CONUS file is available from Blodgett, D.L., 2022, Mainstem Rivers of the Conterminous United States (ver. 3.0, February 2026): U.S. Geological Survey data release, doi:10.5066/P13LNDDQ – use the hu_points layer of finalwbd_outlets.gpkg. The function renames COMID and FinalWBD_HUC12 to comid and identifier and filters the table to the upstream network automatically. When supplied, no NLDI huc12pp queries are issued.

Using all three together eliminates all WBD and NLDI huc12pp calls and most flowline attribute calls. The offline call looks like:

result <- get_drainage_area_estimates(
  start, local_navigation = TRUE,
  huc12_data = wbd_sf,
  huc12_outlets = "path/to/finalwbd_outlets.gpkg"
)

Web Services and Performance

By default the function contacts several web services. Each adds latency and is subject to rate limits or outages:

  • NLDI (findNLDI): resolves the start feature, navigates the upstream network, and retrieves HU12 pour points. The huc12pp query is skipped when huc12_outlets is supplied.

  • NHDPlusV2 OGC API (get_nhdplus): fetches flowline attributes, catchment geometries in the gap zone, and (when catchments = TRUE) the full upstream catchment polygon set. Skipped for flowline attributes when local_navigation = TRUE.

  • WBD / HU service (get_huc, get_huc12_by_huc): fetches HU12 polygons by ID or by parent HU. Skipped when huc12_data is provided.

  • Split-catchment service (get_split_catchment): divides catchments at HU12 outlets and at the gage point. Always called.

  • NHDPlusHR service (get_nhdphr): fetches high-resolution flowlines and catchments for the basin bounding box. Skipped when nhdplushr = FALSE.

For large basins (e.g. the Brazos at Rosharon) the cumulative time for these calls can be substantial. Setting nhdplushr = FALSE eliminates the most expensive single call. Providing huc12_data and using local_navigation = TRUE together can reduce total run time to a fraction of the default, at the cost of requiring local data files. The vignette’s fetch_or_load wrapper caches results as RDS files so that repeated runs avoid repeating the web service calls entirely.

Fetch and Cache Results

Each basin result is stored in a separate RDS file in the hydrogeofetch data directory so that subsequent runs skip the web service calls.

library(sf)
#> Linking to GEOS 3.14.1, GDAL 3.12.1, PROJ 9.7.1; sf_use_s2() is TRUE

data_dir <- hydrogeofetch_data_dir()
dir.create(data_dir, recursive = TRUE, showWarnings = FALSE)

# On-network HU12 pour points from the Mainstem Rivers data release
# (Blodgett 2022, doi:10.5066/P13LNDDQ). Downloaded once and cached so
# subsequent builds reuse the local file instead of hitting the NLDI.
outlets_path <- file.path(data_dir, "finalwbd_outlets.gpkg")
outlets_url <- paste0(
  "https://prod-is-usgs-sb-prod-publish.s3.amazonaws.com/",
  "65cbc0b3d34ef4b119cb37e9/finalwbd_outlets.gpkg")
if(!file.exists(outlets_path)) {
  message("Downloading HU12 outlets GPKG to ", outlets_path)
  download.file(outlets_url, outlets_path, mode = "wb")
}
#> Downloading HU12 outlets GPKG to C:\Users\dblodgett\AppData\Roaming/R/data/R/hydrogeofetch/finalwbd_outlets.gpkg

# Define the six study sites
sites <- list(
  black_earth = list(featureSource = "nwissite",
    featureID = "USGS-05406500"),
  french_broad = list(featureSource = "nwissite",
    featureID = "USGS-03451500"),
  brazos = list(featureSource = "nwissite",
    featureID = "USGS-08116650"),
  james = list(featureSource = "nwissite",
    featureID = "USGS-06468000"),
  malheur = st_sfc(st_point(c(-118.8, 43.3)), crs = 4326),
  purgatoire = list(featureSource = "nwissite",
    featureID = "USGS-07128500"),
  davidson = list(featureSource = "nwissite",
    featureID = "USGS-08110075")
)

# Skip NHDPlusHR for large basins to keep fetch times reasonable
hr_basins <- c("black_earth", "french_broad", "davidson", "purgatoire",
  "james")

fetch_or_load <- function(name, start) {
  rds_path <- file.path(data_dir,
    paste0("da_est_", name, ".rds"))
  if(file.exists(rds_path)) {
    message("Loading cached: ", name)
    return(readRDS(rds_path))
  }
  message("Fetching: ", name)
  result <- tryCatch(
    get_drainage_area_estimates(start, catchments = TRUE,
      huc12_data = huc12,
      huc12_outlets = outlets_path,
      waterbody_data = waterbody_data,
      catchment_data = catchment_data,
      local_navigation = TRUE,
      nhdplushr = name %in% hr_basins),
    error = function(e) {
      warning("Failed for ", name, ": ", conditionMessage(e),
        call. = FALSE)
      NULL
    })
  if(!is.null(result)) saveRDS(result, rds_path)
  result
}

da_results <- Map(fetch_or_load, names(sites), sites)
#> Fetching: black_earth
#> Loading NHDPlusV2 VAA for local navigation...
#> Resolving start feature via NLDI...
#>   Outlet catchment flowline measure: 8.19
#>   Distance to outlet: 110 m (threshold 100 m => split needed)
#> Subsetting upstream network from VAA...
#>   70 flowlines, totdasqkm = 114.34
#>   Found 1 HUC12 outlets
#> Finding immediately-upstream HUC12 outlets...
#>   1 immediately-upstream HUC12 outlets (of 1 total)
#> Inferred type 'huc12_nhdplusv2' from ID length and version suffix
#>   HUC12 query: 1 HUC12s, total = 65.66 sq km, contributing = 65.66 sq km
#> Splitting catchments at 1 HUC12 outlet(s)...
#> Navigating network upstream of HUC12 outlets...
#>   31 extra catchments between outlet and HUC12 outlets
#> Splitting outlet catchment at gage point...
#>   Outlet split: full=1.07 km2, upstream=1.05 km2, removed=0.01 km2
#> Fetching extra catchment geometries...
#>   HUC12 DA = 118.03, contributing = 118.03
#>   Network DA = 114.34
#> Computing NHDPlusHR drainage area estimate...
#>   Fetching NHDPlusHR network for full AOI...
#>   Fetched 294 HR flowlines
#> defaulting to comid rather than permanent_identifier
#>   HR outlet NHDPlusID = 22001100015000 (TotDASqKM = 107.07950025)
#>   Navigating upstream on HR network...
#> defaulting to comid rather than permanent_identifier
#>   Found 139 HR flowlines upstream
#>   Fetching NHDPlusHR catchments...
#>   NHDPlusHR DA = 107.08
#> Fetching network catchment geometries...
#> Fetching: french_broad
#> Loading NHDPlusV2 VAA for local navigation...
#> Resolving start feature via NLDI...
#>   Outlet catchment flowline measure: 55.83
#>   Distance to outlet: 697 m (threshold 100 m => split needed)
#> Subsetting upstream network from VAA...
#>   1576 flowlines, totdasqkm = 2446.89
#>   Found 30 HUC12 outlets
#> Finding immediately-upstream HUC12 outlets...
#>   1 immediately-upstream HUC12 outlets (of 30 total)
#> Inferred type 'huc12_nhdplusv2' from ID length and version suffix
#>   Fetching HUC12s for 1 huc_10 IDs...
#>   Fetching HUC12s for 6 huc_10 IDs...
#>   Backfill (HUC10): 4 HUC12s in outlet HUC10
#>   Superset union: adding 1 HUC12s from base estimate
#>   HUC12 query: 30 HUC12s, total = 2417.27 sq km, contributing = 2417.27 sq km
#>   HUC10 query: 30 HUC12s, total = 2417.27 sq km, contributing = 2417.27 sq km
#> Splitting catchments at 1 HUC12 outlet(s)...
#> Navigating network upstream of HUC12 outlets...
#>   16 extra catchments between outlet and HUC12 outlets
#> Splitting outlet catchment at gage point...
#>   Outlet split: full=1.3 km2, upstream=0.72 km2, removed=0.58 km2
#> Fetching extra catchment geometries...
#>   HUC12 DA = 2446.03, contributing = 2446.03
#>   HUC10 DA = 2446.03, contributing = 2446.03
#>   Network DA = 2446.89
#> Computing NHDPlusHR drainage area estimate...
#>   Fetching NHDPlusHR network for full AOI...
#> Getting features 0 to 2000 of 101150
#> Getting features 2000 to 4000 of 101150
#> Getting features 4000 to 6000 of 101150
#> Getting features 6000 to 8000 of 101150
#> Getting features 8000 to 10000 of 101150
#> Getting features 10000 to 12000 of 101150
#> Getting features 12000 to 14000 of 101150
#> Getting features 14000 to 16000 of 101150
#> Getting features 16000 to 18000 of 101150
#> Getting features 18000 to 20000 of 101150
#> Getting features 20000 to 22000 of 101150
#> Getting features 22000 to 24000 of 101150
#> Getting features 24000 to 26000 of 101150
#> Getting features 26000 to 28000 of 101150
#> Getting features 28000 to 30000 of 101150
#> Getting features 30000 to 32000 of 101150
#> Getting features 32000 to 34000 of 101150
#> Getting features 34000 to 36000 of 101150
#> Getting features 36000 to 38000 of 101150
#> Getting features 38000 to 40000 of 101150
#> Getting features 40000 to 42000 of 101150
#> Getting features 42000 to 44000 of 101150
#> Getting features 44000 to 46000 of 101150
#> Getting features 46000 to 48000 of 101150
#> Getting features 48000 to 50000 of 101150
#> Getting features 50000 to 52000 of 101150
#> Getting features 52000 to 54000 of 101150
#> Getting features 54000 to 56000 of 101150
#> Getting features 56000 to 58000 of 101150
#> Getting features 58000 to 60000 of 101150
#> Getting features 60000 to 62000 of 101150
#> Getting features 62000 to 64000 of 101150
#> Getting features 64000 to 66000 of 101150
#> Getting features 66000 to 68000 of 101150
#> Getting features 68000 to 70000 of 101150
#> Getting features 70000 to 72000 of 101150
#> Getting features 72000 to 74000 of 101150
#> Getting features 74000 to 76000 of 101150
#> Getting features 76000 to 78000 of 101150
#> Getting features 78000 to 80000 of 101150
#> Getting features 80000 to 82000 of 101150
#> Getting features 82000 to 84000 of 101150
#> Getting features 84000 to 86000 of 101150
#> Getting features 86000 to 88000 of 101150
#> Getting features 88000 to 90000 of 101150
#> Getting features 90000 to 92000 of 101150
#> Getting features 92000 to 94000 of 101150
#> Getting features 94000 to 96000 of 101150
#> Getting features 96000 to 98000 of 101150
#> Getting features 98000 to 100000 of 101150
#> Getting features 100000 to 101150 of 101150
#>   Fetched 101136 HR flowlines
#> defaulting to comid rather than permanent_identifier
#>   HR outlet NHDPlusID = 25000400296206 (TotDASqKM = 2446.3217943)
#>   Navigating upstream on HR network...
#> defaulting to comid rather than permanent_identifier
#>   Found 63903 HR flowlines upstream
#>   Fetching NHDPlusHR catchments...
#> Getting features 0 to 2000 of 61606
#> Getting features 2000 to 4000 of 61606
#> Getting features 4000 to 6000 of 61606
#> Getting features 6000 to 8000 of 61606
#> Getting features 8000 to 10000 of 61606
#> Getting features 10000 to 12000 of 61606
#> Getting features 12000 to 14000 of 61606
#> Getting features 14000 to 16000 of 61606
#> Getting features 16000 to 18000 of 61606
#> Getting features 18000 to 20000 of 61606
#> Getting features 20000 to 22000 of 61606
#> Getting features 22000 to 24000 of 61606
#> Getting features 24000 to 26000 of 61606
#> Getting features 26000 to 28000 of 61606
#> Getting features 28000 to 30000 of 61606
#> Getting features 30000 to 32000 of 61606
#> Getting features 32000 to 34000 of 61606
#> Getting features 34000 to 36000 of 61606
#> Getting features 36000 to 38000 of 61606
#> Getting features 38000 to 40000 of 61606
#> Getting features 40000 to 42000 of 61606
#> Getting features 42000 to 44000 of 61606
#> Getting features 44000 to 46000 of 61606
#> Getting features 46000 to 48000 of 61606
#> Getting features 48000 to 50000 of 61606
#> Getting features 50000 to 52000 of 61606
#> Getting features 52000 to 54000 of 61606
#> Getting features 54000 to 56000 of 61606
#> Getting features 56000 to 58000 of 61606
#> Getting features 58000 to 60000 of 61606
#> Getting features 60000 to 61606 of 61606
#>   NHDPlusHR DA = 2446.32
#> Fetching network catchment geometries...

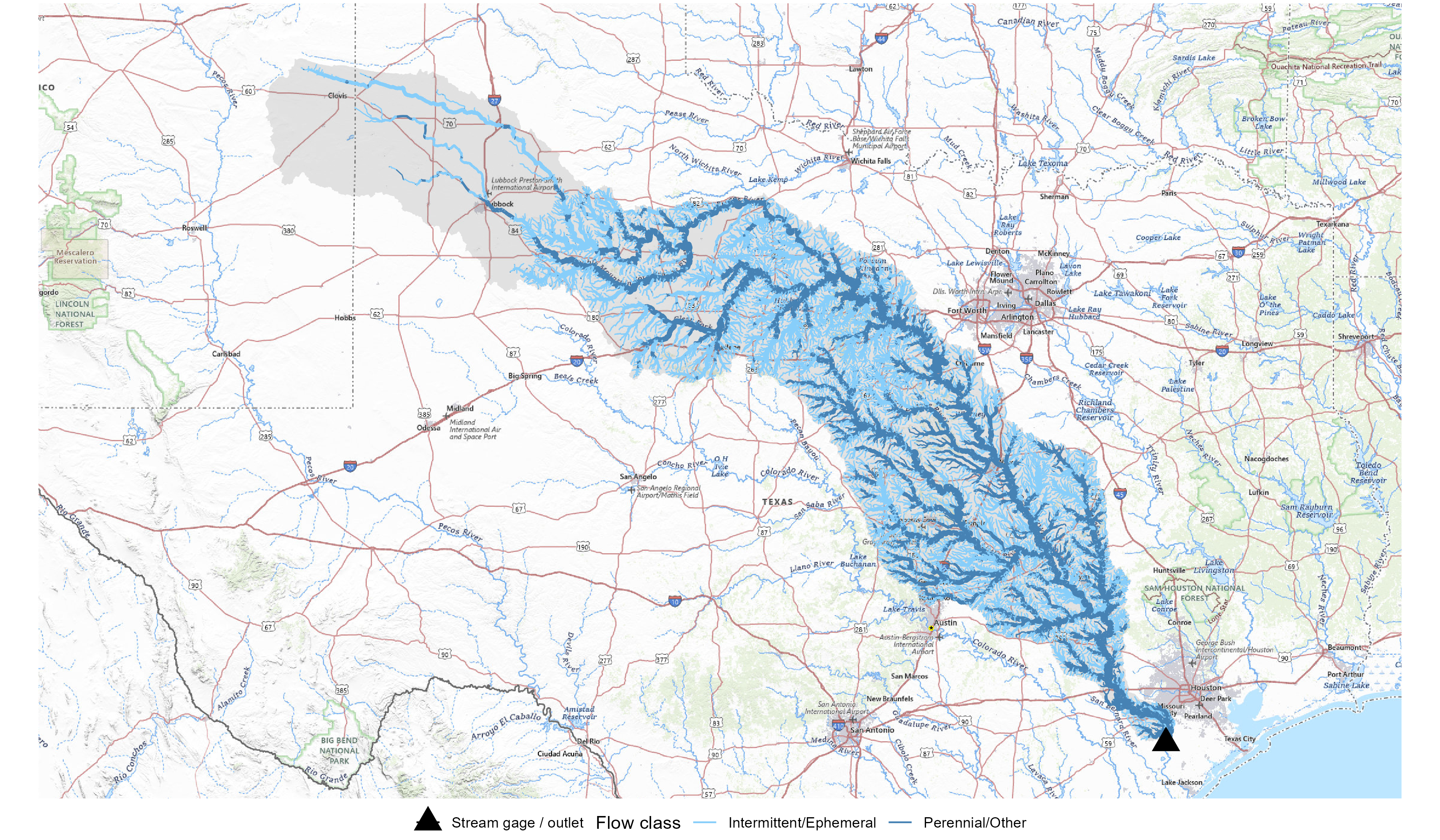

#> Fetching: brazos
#> Loading NHDPlusV2 VAA for local navigation...
#> Resolving start feature via NLDI...
#>   Outlet catchment flowline measure: 15.09
#>   Distance to outlet: 559 m (threshold 100 m => split needed)
#> Subsetting upstream network from VAA...
#>   14245 flowlines, totdasqkm = 103578.18
#>   Found 915 HUC12 outlets
#> Finding immediately-upstream HUC12 outlets...
#>   3 immediately-upstream HUC12 outlets (of 915 total)
#> Inferred type 'huc12_nhdplusv2' from ID length and version suffix
#>   Fetching HUC12s for 1 huc_10 IDs...
#>   Fetching HUC12s for 25 huc_8 IDs...
#>   Fetching HUC12s for 3 huc_10 IDs...
#>   HUC10 from HUC08: 961 HUC12s reused, 27 fetched separately
#>   Backfill (HUC08): 7 HUC12s in outlet HUC10
#>   Backfill (HUC10): 7 HUC12s in outlet HUC10
#>   Filtered 5 disconnected HUC12s from broader query
#>   Filtered 3 disconnected HUC12s from broader query
#>   Superset union: adding 2 HUC12s from base estimate
#>   Superset union: adding 2 HUC12s from base estimate
#>   HUC12 query: 915 HUC12s, total = 99377.35 sq km, contributing = 98765.71 sq km
#>   HUC10 query: 992 HUC12s, total = 108644.38 sq km, contributing = 101299.12 sq km
#>   HUC08 query: 1071 HUC12s, total = 117812 sq km, contributing = 105948.91 sq km
#> Splitting catchments at 3 HUC12 outlet(s)...
#> Navigating network upstream of HUC12 outlets...
#>   99 extra catchments between outlet and HUC12 outlets
#> Splitting outlet catchment at gage point...
#>   Outlet split: full=2.53 km2, upstream=2.26 km2, removed=0.28 km2
#> Fetching extra catchment geometries...
#>   HUC12 DA = 99672.72, contributing = 99061.08
#>   HUC10 DA = 108939.75, contributing = 101594.49
#>   HUC08 DA = 118107.37, contributing = 106244.28
#>   Network DA = 103578.18
#> Fetching network catchment geometries...

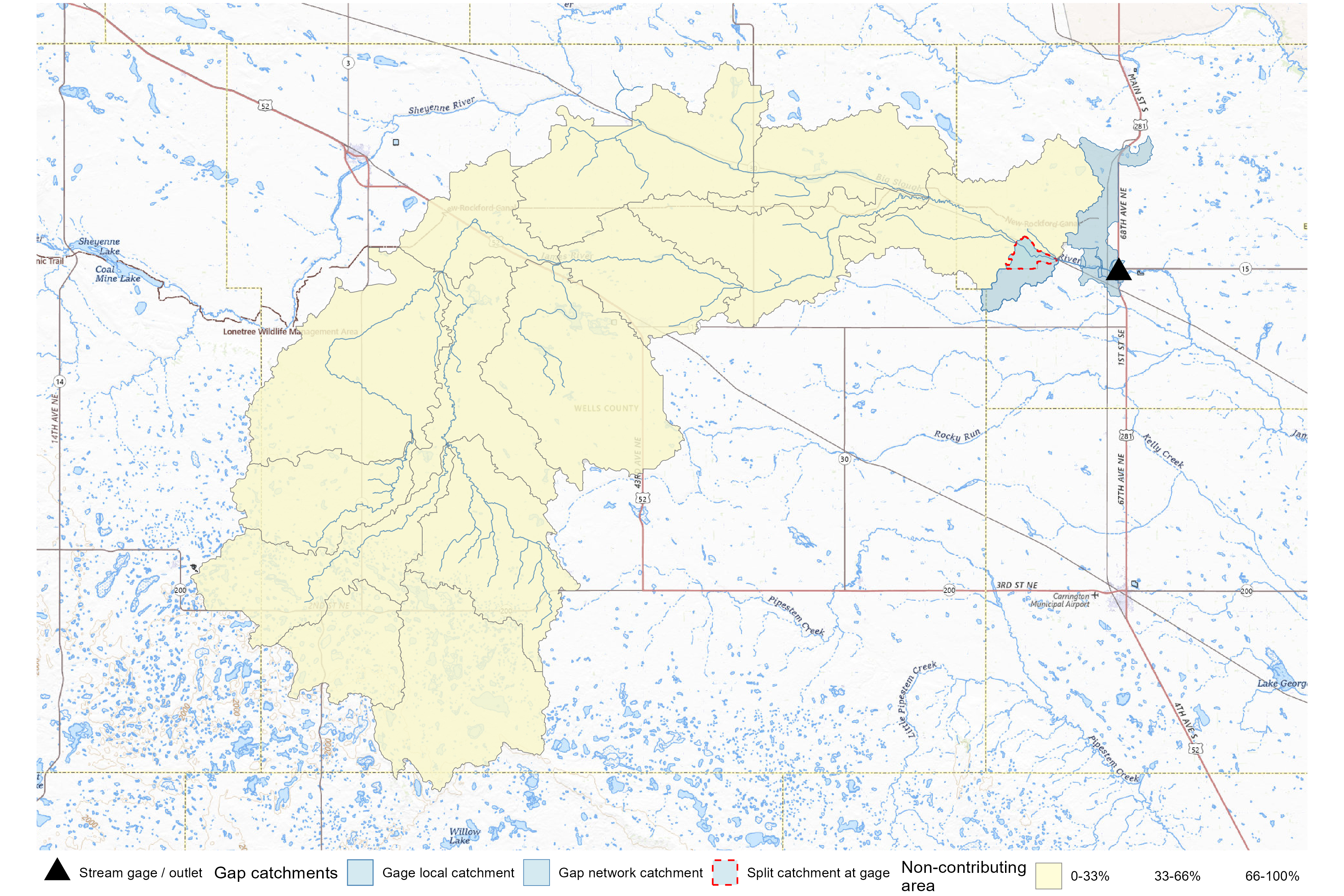

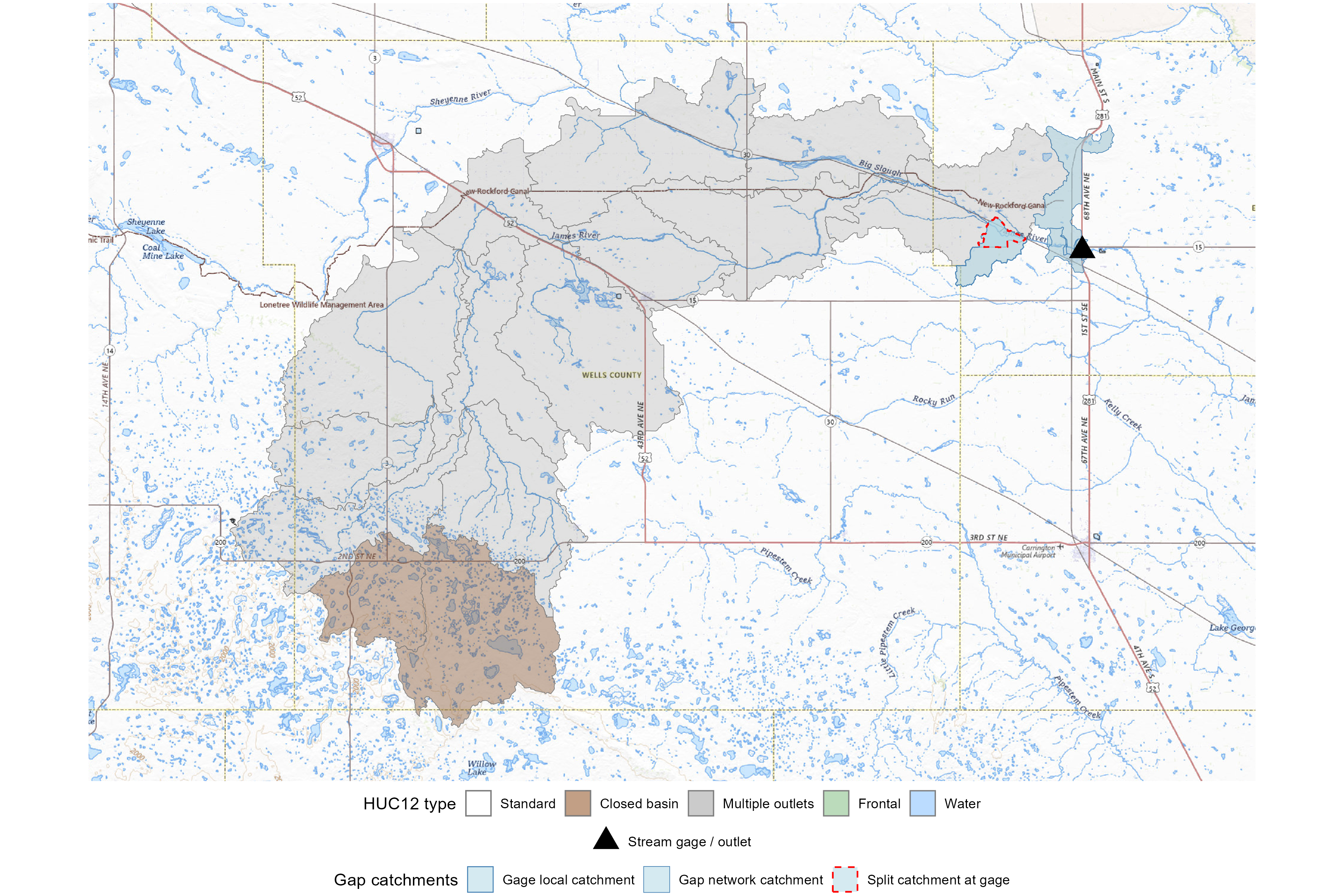

#> Fetching: james
#> Loading NHDPlusV2 VAA for local navigation...
#> Resolving start feature via NLDI...
#>   Outlet catchment flowline measure: 44.7
#>   Distance to outlet: 67 m (threshold 100 m => no split needed)
#> Subsetting upstream network from VAA...
#>   165 flowlines, totdasqkm = 1442.44
#>   Found 12 HUC12 outlets
#> Finding immediately-upstream HUC12 outlets...
#>   1 immediately-upstream HUC12 outlets (of 12 total)
#> Inferred type 'huc12_nhdplusv2' from ID length and version suffix
#>   Fetching HUC12s for 1 huc_10 IDs...
#>   Fetching HUC12s for 1 huc_10 IDs...
#>   Backfill (HUC10): 7 HUC12s in outlet HUC10
#>   Filtered 1 disconnected HUC12s from broader query
#>   Superset union: adding 1 HUC12s from base estimate
#>   HUC12 query: 12 HUC12s, total = 1393.78 sq km, contributing = 1393.78 sq km
#>   HUC10 query: 14 HUC12s, total = 1612.71 sq km, contributing = 1612.71 sq km
#> Splitting catchments at 1 HUC12 outlet(s)...
#> Navigating network upstream of HUC12 outlets...
#>   8 extra catchments between outlet and HUC12 outlets
#> Fetching extra catchment geometries...
#>   HUC12 DA = 1436.59, contributing = 1436.59
#>   HUC10 DA = 1655.51, contributing = 1655.51
#>   Network DA = 1442.44
#> Computing NHDPlusHR drainage area estimate...
#>   Fetching NHDPlusHR network for full AOI...
#>   Fetched 1740 HR flowlines
#> defaulting to comid rather than permanent_identifier
#>   HR outlet NHDPlusID = 23002400035342 (TotDASqKM = 620.39020054)
#>   Navigating upstream on HR network...
#> defaulting to comid rather than permanent_identifier
#>   Found 407 HR flowlines upstream
#>   Fetching NHDPlusHR catchments...
#>   NHDPlusHR DA = 620.39
#> Fetching network catchment geometries...

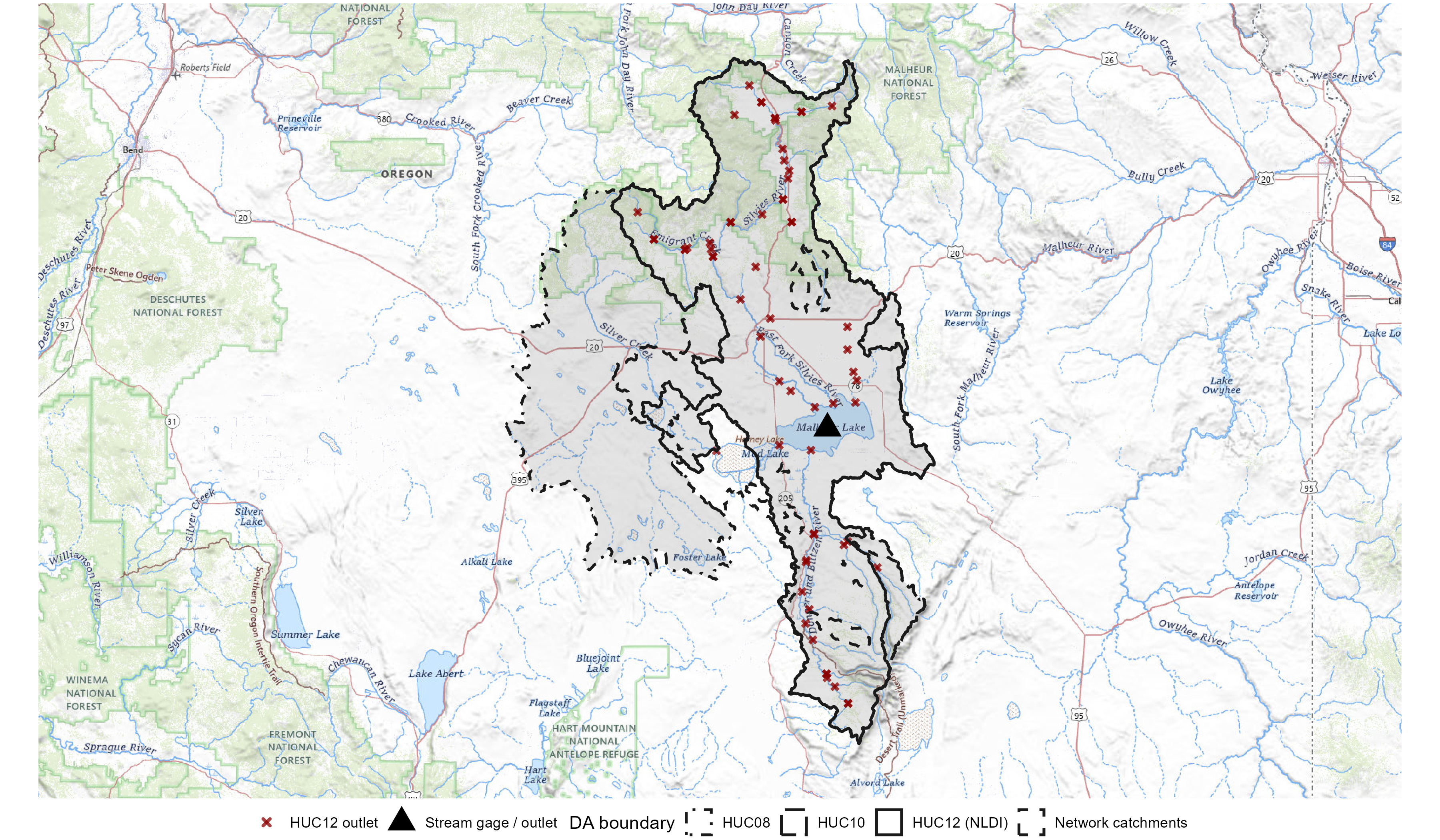

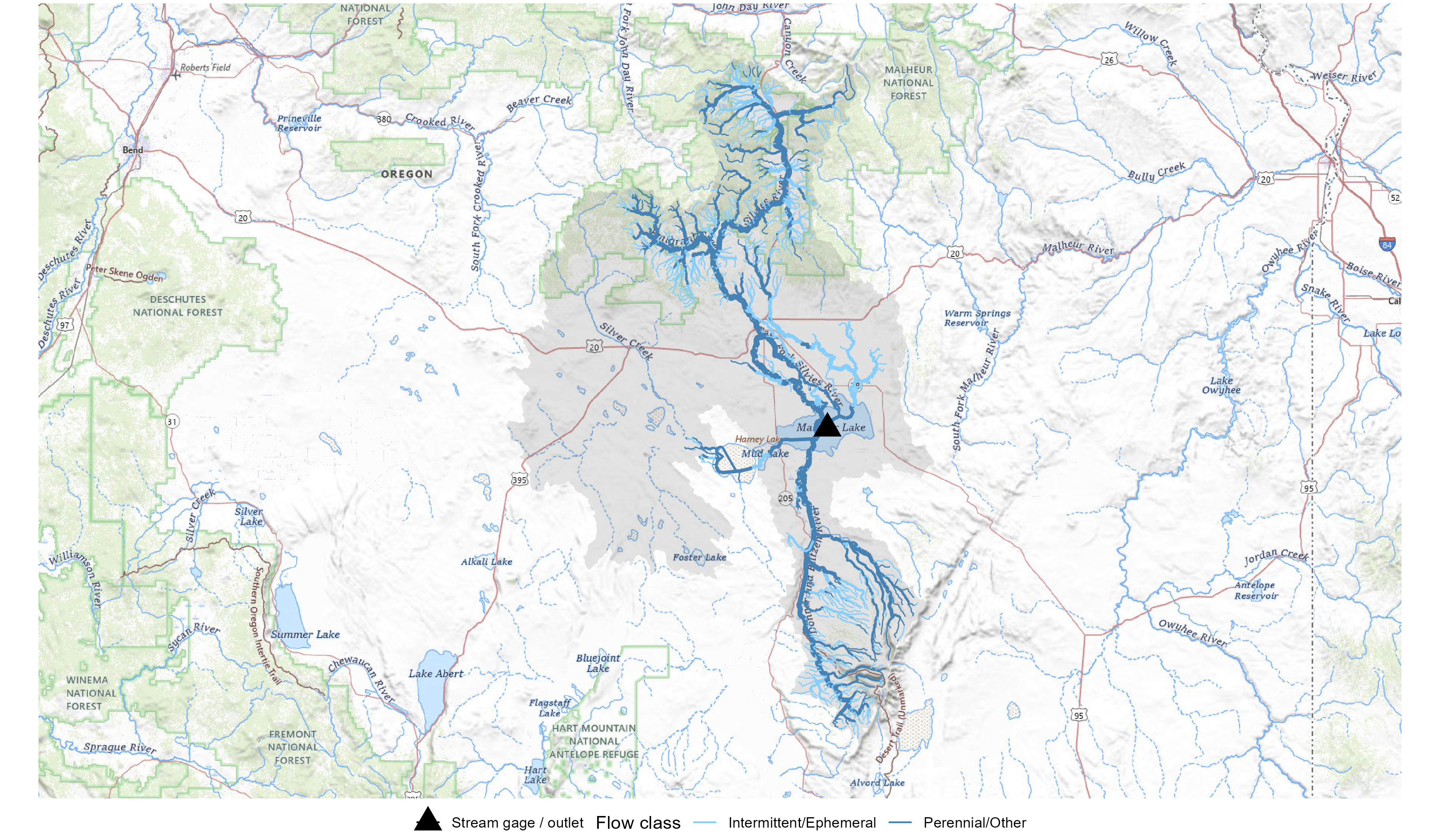

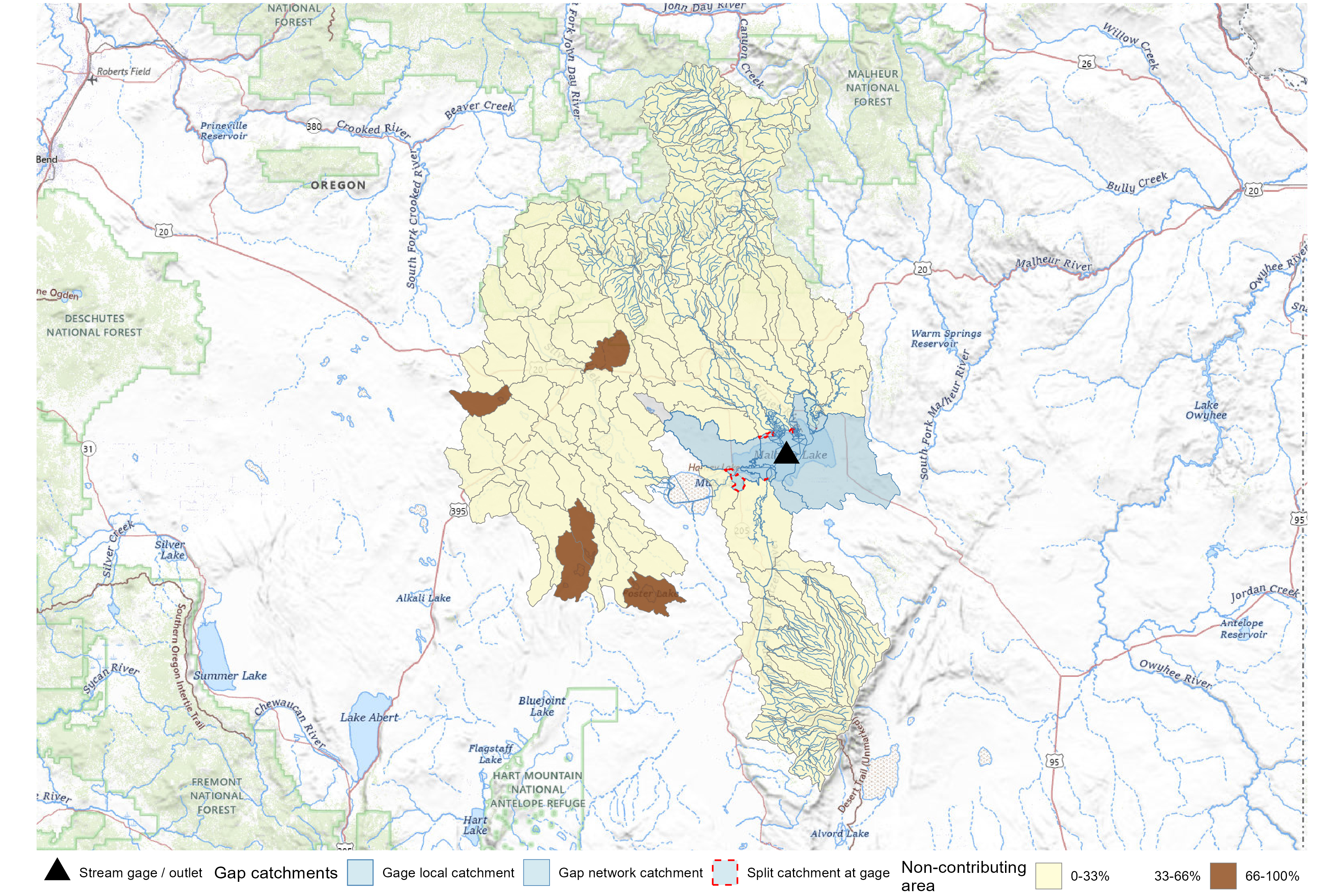

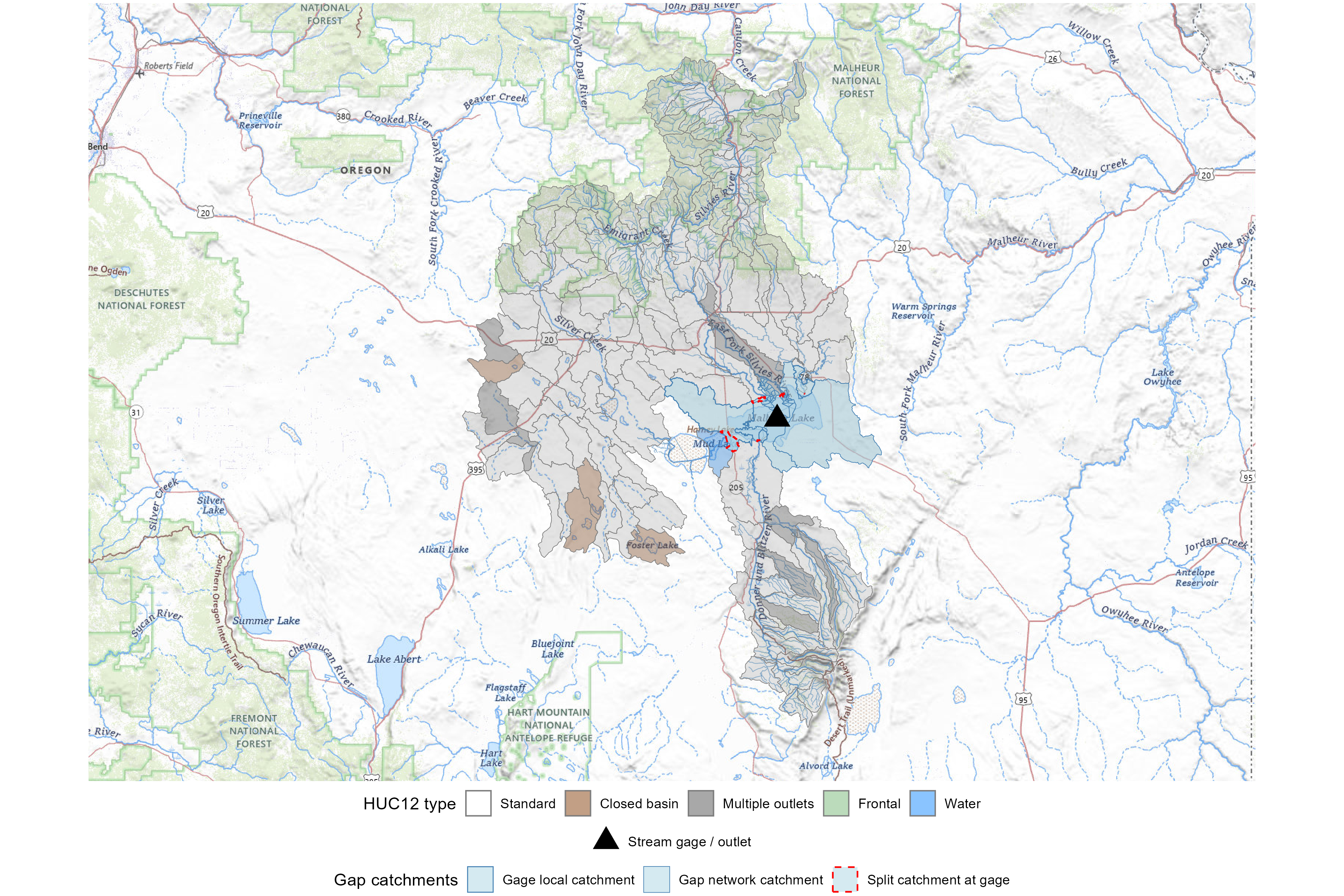

#> Fetching: malheur
#> Loading NHDPlusV2 VAA for local navigation...
#> Fetching waterbody...
#> Found 3 outlets for waterbody
#> Subsetting upstream network from VAA...
#>   1492 flowlines, totdasqkm = 4585.56
#>   Found 64 HUC12 outlets
#> defaulting to 2025 version of WBD
#> Start point HUC12 171200010710 has no flowline pour point (closed-basin-like); adding HUC10 1712000107 to HU_inclusion_override.
#> Finding immediately-upstream HUC12 outlets...
#>   5 immediately-upstream HUC12 outlets (of 64 total)
#> Inferred type 'huc12_nhdplusv2' from ID length and version suffix
#>   Fetching HUC12s for 4 huc_10 IDs...
#>   Fetching HUC12s for 1 huc_8 IDs...
#>   Fetching HUC12s for 10 huc_10 IDs...
#>   HUC10 from HUC08: 5 HUC12s reused, 61 fetched separately
#>   Backfill (HUC08): 16 HUC12s in outlet HUC10
#>   Backfill (HUC10): 16 HUC12s in outlet HUC10
#>   Superset union: adding 4 HUC12s from base estimate
#>   Superset union: adding 4 HUC12s from base estimate
#>   HUC12 query: 64 HUC12s, total = 6269.06 sq km, contributing = 6269.06 sq km
#>   HUC10 query: 86 HUC12s, total = 8057.84 sq km, contributing = 7930.97 sq km
#>   HUC08 query: 127 HUC12s, total = 11801.33 sq km, contributing = 11181.87 sq km
#> Splitting catchments at 5 HUC12 outlet(s)...
#> Navigating network upstream of HUC12 outlets...
#>   39 extra catchments between outlet and HUC12 outlets
#> Fetching extra catchment geometries...
#>   HUC12 DA = 7307.92, contributing = 7307.92
#>   HUC10 DA = 9096.7, contributing = 8969.83
#>   HUC08 DA = 12840.18, contributing = 12220.73
#>   Network DA = 4585.56
#> Fetching network catchment geometries...

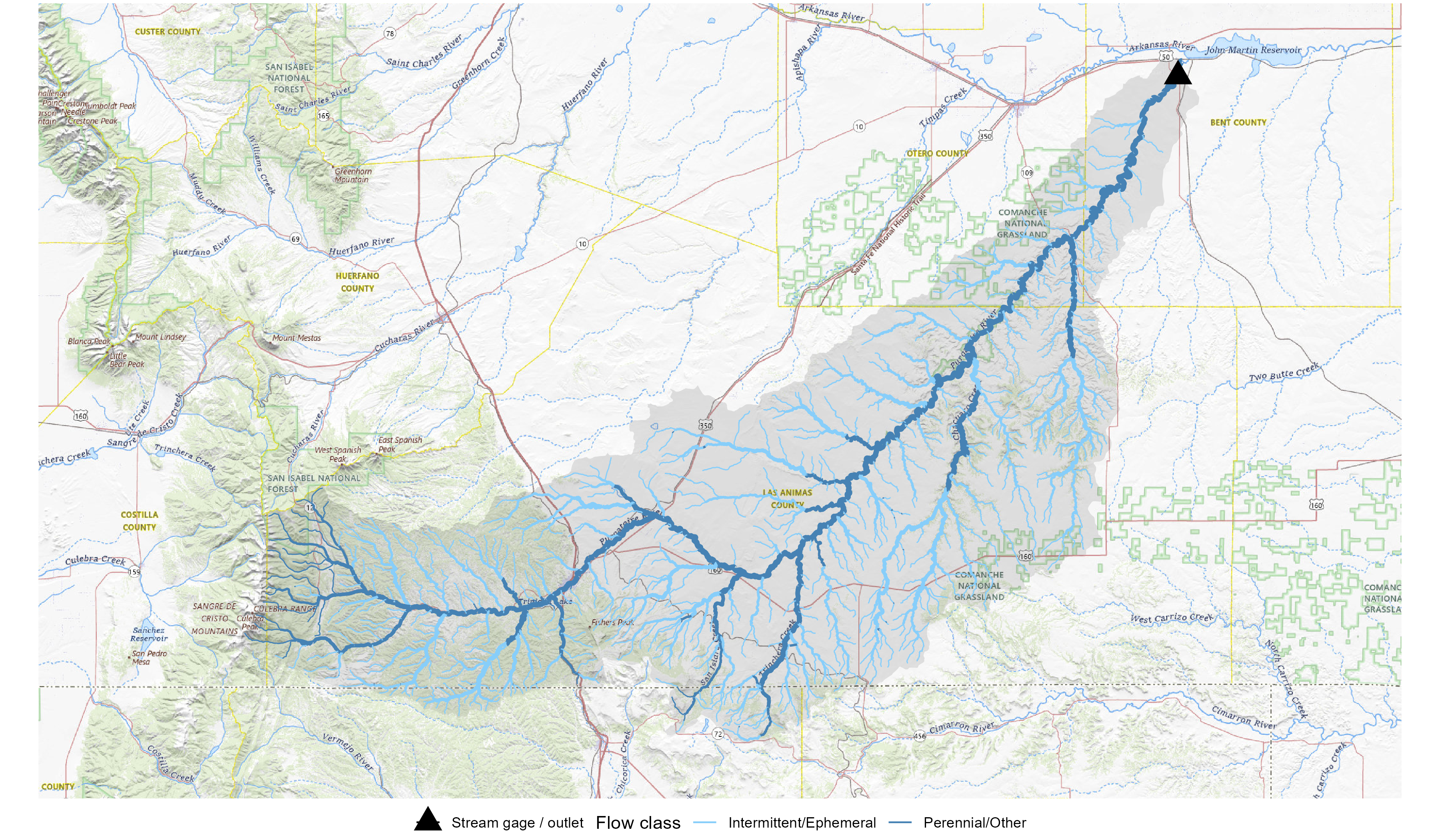

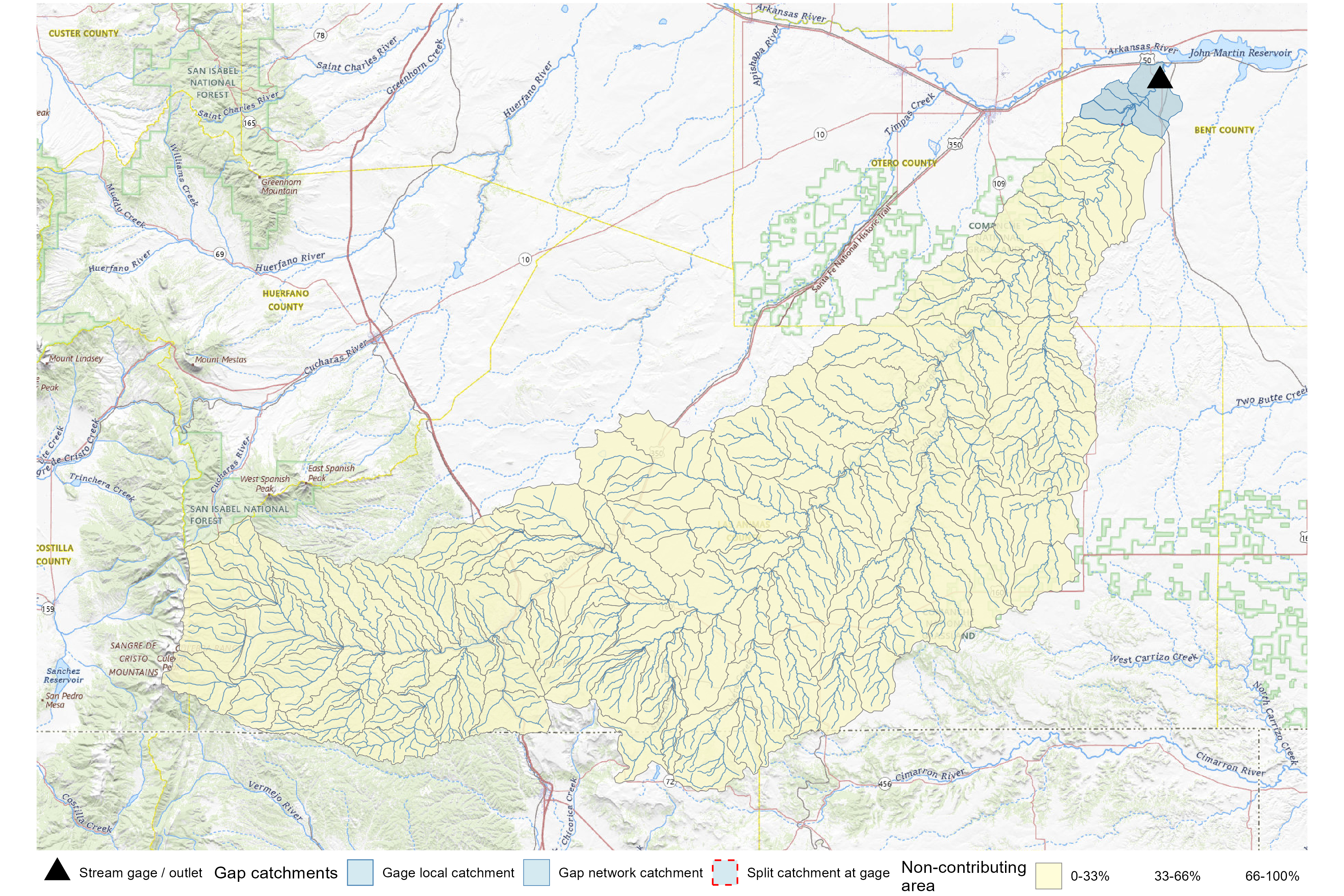

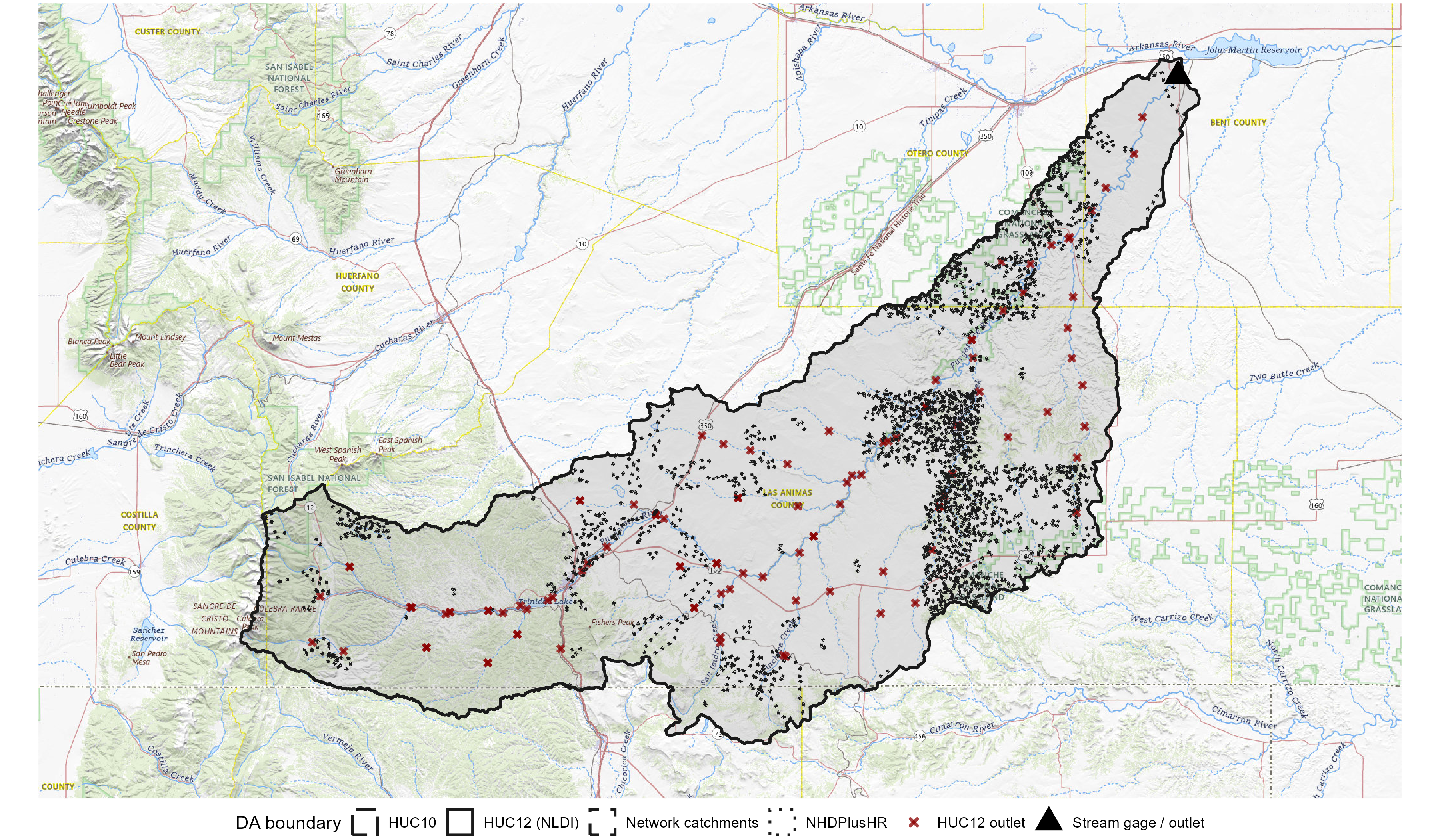

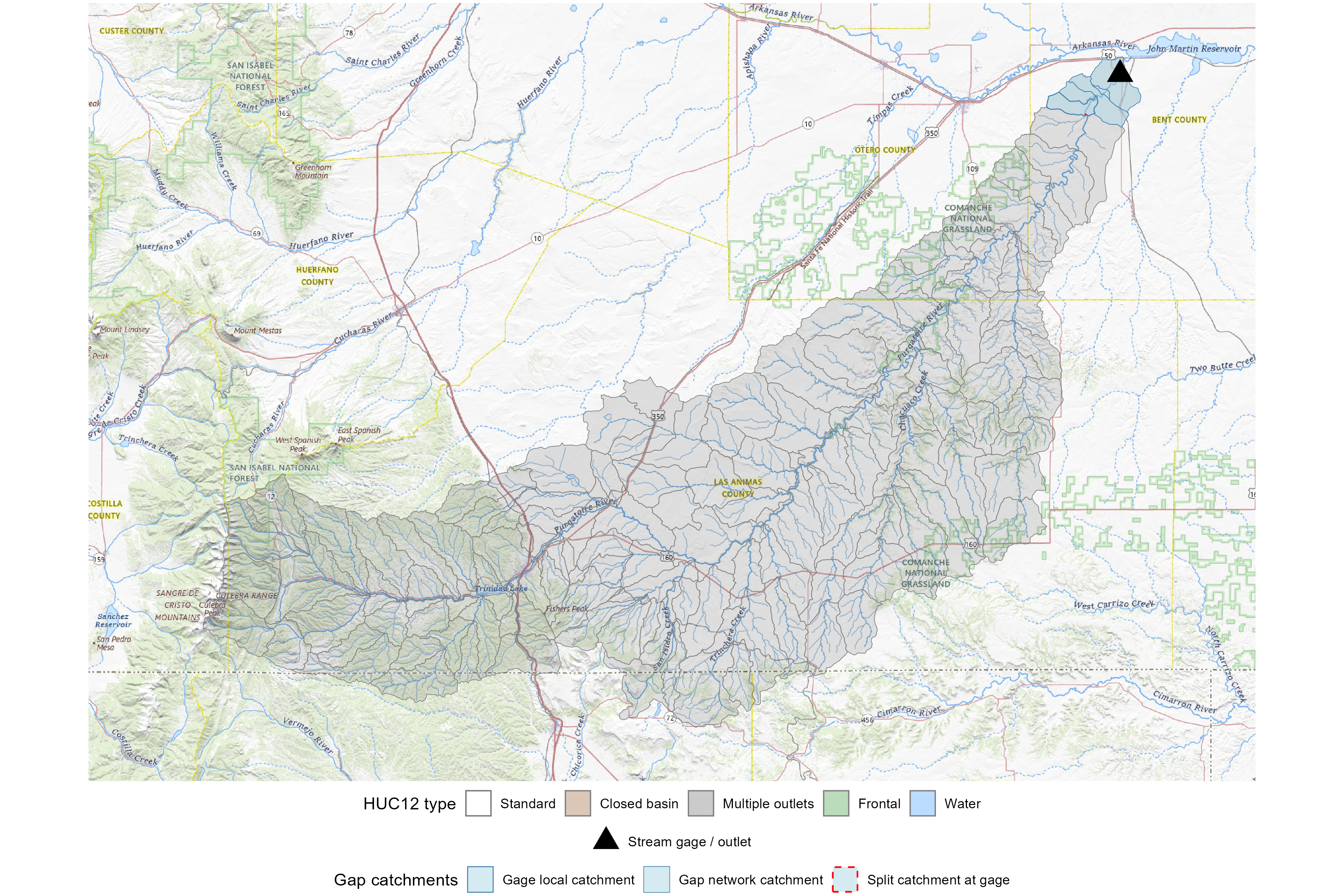

#> Fetching: purgatoire
#> Loading NHDPlusV2 VAA for local navigation...
#> Resolving start feature via NLDI...
#>   Outlet catchment flowline measure: 40.28
#>   Distance to outlet: 3421 m (threshold 100 m => split needed)
#> Subsetting upstream network from VAA...
#>   1340 flowlines, totdasqkm = 8930.02
#>   Found 104 HUC12 outlets
#> Finding immediately-upstream HUC12 outlets...
#>   1 immediately-upstream HUC12 outlets (of 104 total)
#> Inferred type 'huc12_nhdplusv2' from ID length and version suffix
#>   Fetching HUC12s for 1 huc_10 IDs...
#>   Fetching HUC12s for 18 huc_10 IDs...
#>   Backfill (HUC10): 2 HUC12s in outlet HUC10
#>   Superset union: adding 1 HUC12s from base estimate
#>   HUC12 query: 104 HUC12s, total = 8795.98 sq km, contributing = 8795.98 sq km
#>   HUC10 query: 104 HUC12s, total = 8795.98 sq km, contributing = 8795.98 sq km
#> Splitting catchments at 1 HUC12 outlet(s)...
#> Navigating network upstream of HUC12 outlets...
#>   4 extra catchments between outlet and HUC12 outlets
#> Splitting outlet catchment at gage point...
#>   Outlet split: full=55.33 km2, upstream=0.02 km2, removed=55.32 km2
#> Fetching extra catchment geometries...
#>   HUC12 DA = 8875, contributing = 8875
#>   HUC10 DA = 8875, contributing = 8875
#>   Network DA = 8930.02
#> Computing NHDPlusHR drainage area estimate...
#>   Fetching NHDPlusHR network for full AOI...
#> Getting features 0 to 2000 of 94510
#> Getting features 2000 to 4000 of 94510
#> Getting features 4000 to 6000 of 94510
#> Getting features 6000 to 8000 of 94510
#> Getting features 8000 to 10000 of 94510
#> Getting features 10000 to 12000 of 94510
#> Getting features 12000 to 14000 of 94510
#> Getting features 14000 to 16000 of 94510
#> Getting features 16000 to 18000 of 94510
#> Getting features 18000 to 20000 of 94510
#> Getting features 20000 to 22000 of 94510
#> Getting features 22000 to 24000 of 94510
#> Getting features 24000 to 26000 of 94510
#> Getting features 26000 to 28000 of 94510
#> Getting features 28000 to 30000 of 94510
#> Getting features 30000 to 32000 of 94510
#> Getting features 32000 to 34000 of 94510
#> Getting features 34000 to 36000 of 94510
#> Getting features 36000 to 38000 of 94510
#> Getting features 38000 to 40000 of 94510
#> Getting features 40000 to 42000 of 94510
#> Getting features 42000 to 44000 of 94510
#> Getting features 44000 to 46000 of 94510
#> Getting features 46000 to 48000 of 94510
#> Getting features 48000 to 50000 of 94510
#> Getting features 50000 to 52000 of 94510
#> Getting features 52000 to 54000 of 94510
#> Getting features 54000 to 56000 of 94510
#> Getting features 56000 to 58000 of 94510
#> Getting features 58000 to 60000 of 94510
#> Getting features 60000 to 62000 of 94510
#> Getting features 62000 to 64000 of 94510
#> Getting features 64000 to 66000 of 94510
#> Getting features 66000 to 68000 of 94510
#> Getting features 68000 to 70000 of 94510
#> Getting features 70000 to 72000 of 94510
#> Getting features 72000 to 74000 of 94510
#> Getting features 74000 to 76000 of 94510
#> Getting features 76000 to 78000 of 94510
#> Getting features 78000 to 80000 of 94510
#> Getting features 80000 to 82000 of 94510
#> Getting features 82000 to 84000 of 94510
#> Getting features 84000 to 86000 of 94510
#> Getting features 86000 to 88000 of 94510
#> Getting features 88000 to 90000 of 94510
#> Getting features 90000 to 92000 of 94510
#> Getting features 92000 to 94000 of 94510
#> Getting features 94000 to 94510 of 94510
#>   Fetched 94406 HR flowlines
#> defaulting to comid rather than permanent_identifier
#>   HR outlet NHDPlusID = 21000900134009 (TotDASqKM = 35842.08188761)
#>   Navigating upstream on HR network...
#> defaulting to comid rather than permanent_identifier
#>   Found 25091 HR flowlines upstream
#>   Fetching NHDPlusHR catchments...
#> Getting features 0 to 2000 of 24926
#> Getting features 2000 to 4000 of 24926
#> Getting features 4000 to 6000 of 24926
#> Getting features 6000 to 8000 of 24926
#> Getting features 8000 to 10000 of 24926
#> Getting features 10000 to 12000 of 24926
#> Getting features 12000 to 14000 of 24926
#> Getting features 14000 to 16000 of 24926
#> Getting features 16000 to 18000 of 24926
#> Getting features 18000 to 20000 of 24926
#> Getting features 20000 to 22000 of 24926
#> Getting features 22000 to 24000 of 24926
#> Getting features 24000 to 24926 of 24926
#>   NHDPlusHR DA = 8217.77
#> Fetching network catchment geometries...
#> Fetching: davidson
#> Loading NHDPlusV2 VAA for local navigation...
#> Resolving start feature via NLDI...
#>   Outlet catchment flowline measure: 64.82
#>   Distance to outlet: 3189 m (threshold 100 m => split needed)
#> Subsetting upstream network from VAA...
#>   33 flowlines, totdasqkm = 183.95
#>   Found 1 HUC12 outlets
#> Finding immediately-upstream HUC12 outlets...
#>   1 immediately-upstream HUC12 outlets (of 1 total)
#> Inferred type 'huc12_nhdplusv2' from ID length and version suffix
#>   HUC12 query: 1 HUC12s, total = 91.66 sq km, contributing = 91.66 sq km
#> Splitting catchments at 1 HUC12 outlet(s)...
#> Navigating network upstream of HUC12 outlets...
#>   18 extra catchments between outlet and HUC12 outlets
#> Splitting outlet catchment at gage point...
#>   Outlet split: full=16.27 km2, upstream=10.41 km2, removed=5.86 km2
#> Fetching extra catchment geometries...
#>   HUC12 DA = 176.03, contributing = 176.03
#>   Network DA = 183.95
#> Computing NHDPlusHR drainage area estimate...
#>   Fetching NHDPlusHR network for full AOI...
#>   Fetched 997 HR flowlines
#> defaulting to comid rather than permanent_identifier
#>   HR outlet NHDPlusID = 30000200083392 (TotDASqKM = 137.17980019)
#>   Navigating upstream on HR network...
#> defaulting to comid rather than permanent_identifier
#>   Found 518 HR flowlines upstream
#>   Fetching NHDPlusHR catchments...
#> Warning: Failed to get JSON from
#> https://hydro.nationalmap.gov/arcgis/rest/services/NHDPlus_HR/MapServer/10/query:
#> HTTP 504 Gateway Timeout.
#> Warning: No nhdpluscatchment features found in area of interest.
#> Warning: NHDPlusHR estimate failed: no HR catchments returned
#> Fetching network catchment geometries...
da_results <- Filter(Negate(is.null), da_results)
fetch_flowlines <- function(name, da_result) {
  rds_path <- file.path(data_dir, paste0("fl_", name, ".rds"))
  if(file.exists(rds_path)) {
    message("Loading cached flowlines: ", name)
    return(readRDS(rds_path))
  }
  message("Fetching flowlines: ", name)
  comids <- da_result$all_network$comid
  fl <- if(!is.null(flowlines_data)) {
    message("  Subsetting from local NHDFlowline_Network...")
    flowlines_data[flowlines_data$comid %in% comids, ]
  } else {
    tryCatch(
      get_nhdplus(comid = comids, realization = "flowline"),
      error = function(e) {
        warning("Flowline fetch failed for ", name, ": ",
          conditionMessage(e), call. = FALSE)
        NULL
      })
  }
  if(!is.null(fl) && nrow(fl) > 0) saveRDS(fl, rds_path)
  fl
}

flowlines <- Map(fetch_flowlines, names(da_results), da_results)
#> Fetching flowlines: black_earth
#> Fetching flowlines: french_broad
#> Fetching flowlines: brazos
#> Fetching flowlines: james
#> Fetching flowlines: malheur
#> Fetching flowlines: purgatoire
#> Fetching flowlines: davidson
flowlines <- Filter(Negate(is.null), flowlines)
# Fetch NWIS drainage area for sites with an nwissite featureSource
nwis_ids <- vapply(sites, function(s) {
  if(is.list(s) && identical(s$featureSource, "nwissite"))
    s$featureID else NA_character_
}, character(1))
nwis_ids <- nwis_ids[!is.na(nwis_ids)]

nwis_da <- if(length(nwis_ids) > 0) {
  tryCatch({
    ml <- dataRetrieval::read_waterdata_monitoring_location(
      unname(nwis_ids))
    # Match returned rows back to site names by monitoring_location_id
    idx <- match(nwis_ids, ml$monitoring_location_id)
    # drainage_area and contributing_drainage_area are in sq miles
    data.frame(
      name = names(nwis_ids),
      nwis_da_sqmi = ml$drainage_area[idx],
      nwis_contrib_da_sqmi = ml$contributing_drainage_area[idx],
      nwis_da_sqkm = ml$drainage_area[idx] * 2.58999,
      nwis_contrib_da_sqkm = ml$contributing_drainage_area[idx] *
        2.58999,
      stringsAsFactors = FALSE
    )
  }, error = function(e) {
    warning("NWIS site fetch failed: ", conditionMessage(e),
      call. = FALSE)
    NULL
  })
} else NULL
#> Requesting:
#> https://api.waterdata.usgs.gov/ogcapi/v0/collections/monitoring-locations/items?f=json&lang=en-US&limit=50000&id=USGS-05406500,USGS-03451500,USGS-08116650,USGS-06468000,USGS-07128500,USGS-08110075

Return Structure

Each result is a list with scalar drainage area estimates and spatial data frames. Here are the elements for Black Earth Creek:

names(da_results$black_earth)
#>  [1] "da_huc12_sqkm"            "da_huc10_sqkm"
#>  [3] "da_huc08_sqkm"            "contrib_da_huc12_sqkm"
#>  [5] "contrib_da_huc10_sqkm"    "contrib_da_huc08_sqkm"
#>  [7] "network_da_sqkm"          "nhdplushr_network_dasqkm"
#>  [9] "nhdplushr_boundary"       "start_feature"
#> [11] "hu12_by_huc12"            "hu12_by_huc10"
#> [13] "hu12_by_huc08"            "extra_catchments"
#> [15] "split_catchment"          "all_network"
#> [17] "all_catchments"           "outlet_flowline_measure"
#> [19] "outlet_split_catchment"   "hu12_outlet"

The scalar estimates (square kilometers) across all basins:

basin_labels <- c(
  black_earth = "Black Earth Creek",
  french_broad = "French Broad",
  brazos = "Brazos at Rosharon",
  james = "James River",
  malheur = "Malheur Lake",
  davidson = "Davidson Creek",
  purgatoire = "Purgatoire River"
)

summary_df <- data.frame(
  basin = basin_labels[names(da_results)],
  network_da = vapply(da_results, \(x) x$network_da_sqkm, numeric(1)),
  da_huc12 = vapply(da_results, \(x) x$da_huc12_sqkm, numeric(1)),
  da_huc10 = vapply(da_results,
    \(x) ifelse(is.na(x$da_huc10_sqkm), NA_real_, x$da_huc10_sqkm),
    numeric(1)),
  da_huc08 = vapply(da_results,
    \(x) ifelse(is.na(x$da_huc08_sqkm), NA_real_, x$da_huc08_sqkm),
    numeric(1)),
  nhdplushr = vapply(da_results,
    \(x) ifelse(is.na(x$nhdplushr_network_dasqkm), NA_real_,
      x$nhdplushr_network_dasqkm),
    numeric(1))
)

# Add NWIS drainage areas where available
if(!is.null(nwis_da)) {
  summary_df$nwis_da <- ifelse(
    names(da_results) %in% nwis_da$name,
    nwis_da$nwis_da_sqkm[match(names(da_results), nwis_da$name)],
    NA_real_)
  summary_df$nwis_contrib_da <- ifelse(
    names(da_results) %in% nwis_da$name,
    nwis_da$nwis_contrib_da_sqkm[match(names(da_results), nwis_da$name)],
    NA_real_)
} else {
  summary_df$nwis_da <- NA_real_
  summary_df$nwis_contrib_da <- NA_real_
}

knitr::kable(summary_df, digits = 1,
  col.names = c("Basin", "Network DA", "HU12 DA",
    "HU10 DA", "HU8 DA", "NHDPlusHR DA",
    "NWIS DA", "NWIS Contributing DA"),
  caption = "Drainage area estimates (sq km) by basin and method")
Drainage area estimates (sq km) by basin and method
Basin Network DA HU12 DA HU10 DA HU8 DA NHDPlusHR DA NWIS DA NWIS Contributing DA
black_earth Black Earth Creek 114.3 118.0 NA NA 107.1 118.1 110.9
french_broad French Broad 2446.9 2446.0 2446.0 NA 2446.3 2447.5 NA
brazos Brazos at Rosharon 103578.2 99672.7 108939.7 118107.4 NA 117427.6 92651.7
james James River 1442.4 1436.6 1655.5 NA 620.4 1849.3 722.6
malheur Malheur Lake 4585.6 7307.9 9096.7 12840.2 NA NA NA
purgatoire Purgatoire River 8930.0 8875.0 8875.0 NA 8217.8 8912.2 8881.6
davidson Davidson Creek 183.9 176.0 NA NA NA 178.5 178.5

Basin Vignettes

French Broad River at Asheville

Well-determined basin with strong topographic signal (USGS streamgage 03451500). Contributing area essentially equals total drainage area across all sources.

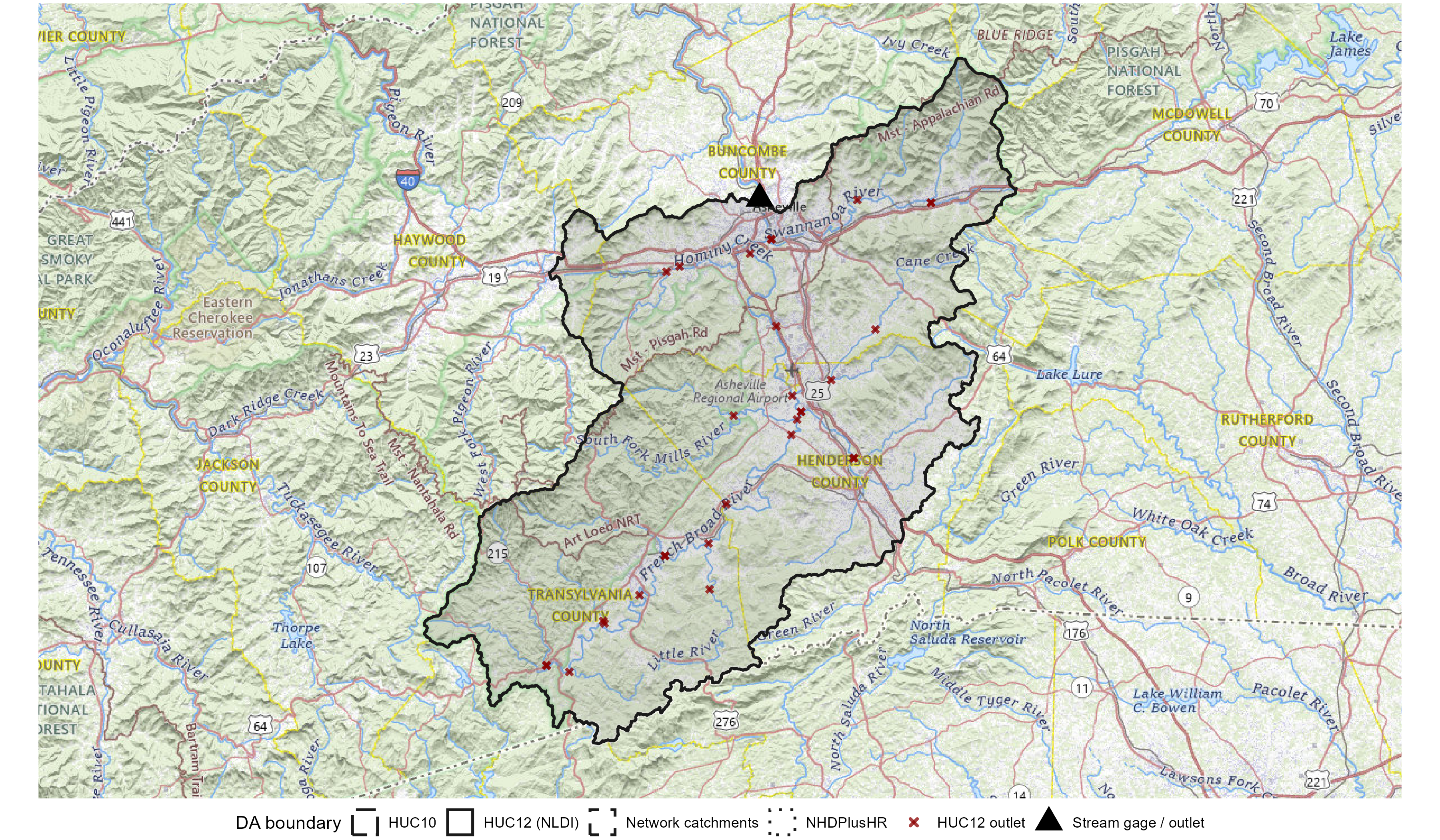

Drainage Area Boundaries

plot_boundaries(da_results$french_broad, "French Broad")

basin_summary_table(da_results$french_broad, "french_broad")
Drainage area estimates by source
Source Area (sq km)
Network 2446.9
HU12 2446.0
HU10 2446.0
HU8 NA
NHDPlusHR 2446.3
NWIS 2447.5
NWIS contributing NA
  • All boundary sources converge tightly around the same watershed outline.
  • The HU12-, HU10-, and HU8-derived boundaries are nearly identical, consistent with a basin whose divides are topographically unambiguous.
  • The gage (triangle) sits on the main stem French Broad River at Asheville.

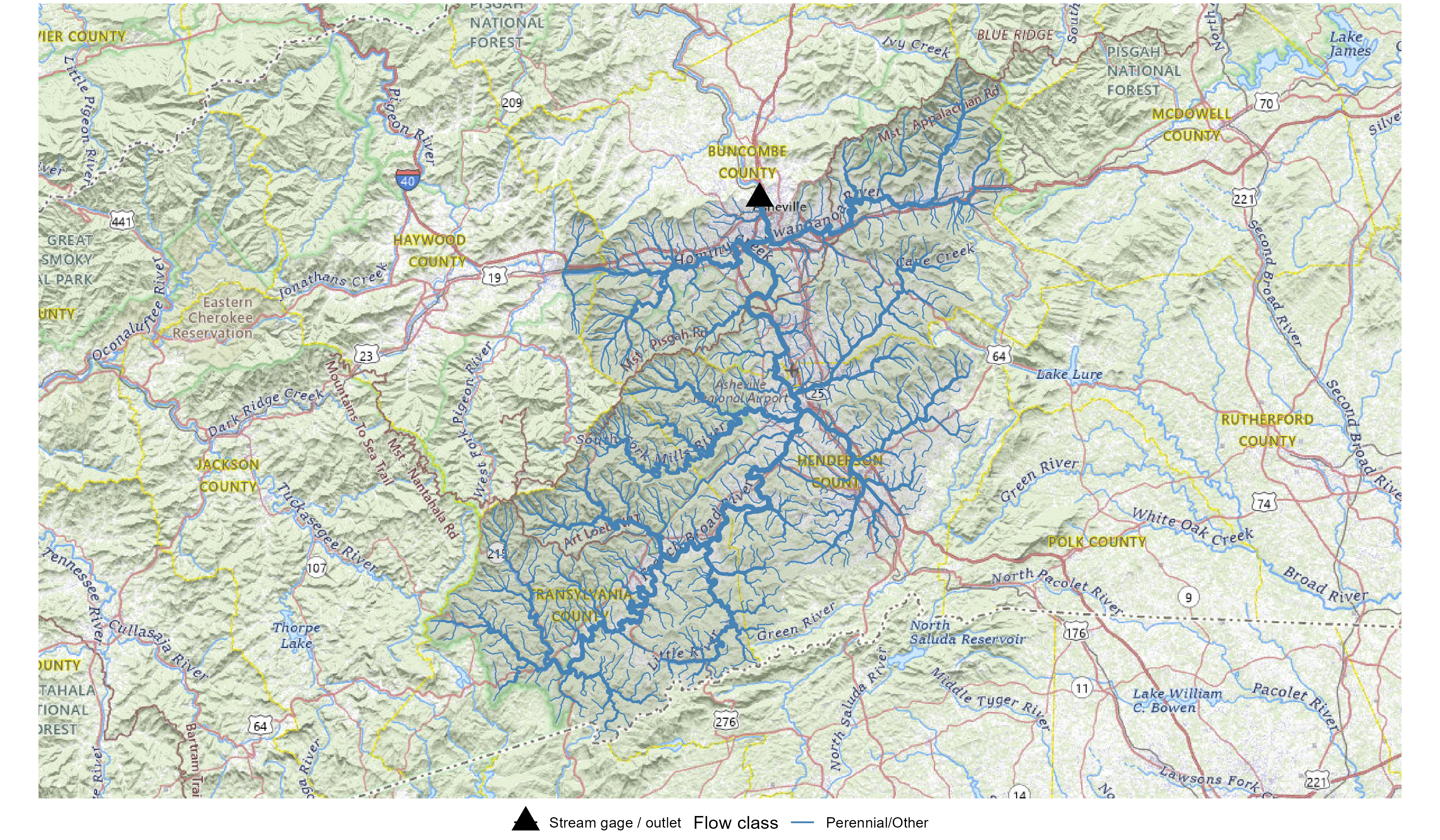

Stream Network

plot_network(da_results$french_broad, flowlines$french_broad,
  "French Broad")

  • The network is predominantly perennial with dense tributary coverage in the Appalachian headwaters.
  • Intermittent reaches are sparse, concentrated in low-order headwater channels.
  • HU12 outlets (x markers) align with major tributary junctions.

HU12 Types

plot_type(da_results$french_broad, flowlines$french_broad,
  "French Broad")

  • Every HU12 in the French Broad basin is classified as Standard.
  • The uniform light-grey fill confirms that all units link to a downstream HU12 through normal surface drainage.

Brazos River, West Texas

Arid/ephemeral connectivity basin (USGS streamgage 08116650). Transmission losses and disconnected uplands create large differences between total and contributing drainage area.

Drainage Area Boundaries

plot_boundaries(da_results$brazos, "Brazos at Rosharon")

basin_summary_table(da_results$brazos, "brazos")
Drainage area estimates by source
Source Area (sq km)
Network 103578.2
HU12 99672.7
HU10 108939.7
HU8 118107.4
NHDPlusHR NA
NWIS 117427.6
NWIS contributing 92651.7
  • Boundary sources diverge substantially. HU-derived boundaries extend further west into arid uplands than the network-derived boundary.
  • The gap between HU12 total area and contributing area reflects large noncontributing designations in western sub-basins.

Stream Network

plot_network_brazos(da_results$brazos, flowlines$brazos,
  "Brazos at Rosharon")
#> Coordinate system already present.
#> ℹ Adding new coordinate system, which will replace the existing one.

  • Extensive intermittent and ephemeral reaches dominate the western (upstream) portion of the basin.
  • Perennial flow is concentrated in the lower main stem and major tributaries east of the Caprock Escarpment, the physiographic boundary between the High Plains (Llano Estacado) and the Rolling Plains traced on the figure.
  • The transition from ephemeral headwaters to perennial mainstem illustrates why contributing area is smaller than total area.

HU12 Types

plot_type(da_results$brazos, flowlines$brazos,
  "Brazos at Rosharon")

  • Closed-basin HU12s (brown) concentrate in the arid western uplands of the Llano Estacado, where surface water never reaches the Brazos.
  • Multiple-outlet HU12s (grey) have more than one outlet to the same downstream system — for example, a HU12 with a braided channel where flow leaves through more than one point.
  • Frontal HU12s (green), where present, are coastal units that drain directly to the Gulf of Mexico rather than to a downstream HU12.
  • Standard HU12s (light grey) dominate the perennial eastern main stem.

James River / Cottonwood Lake

Glacial prairie basin (USGS streamgage 06468000). Prairie potholes create a large noncontributing fraction that varies by sub-basin.

Drainage Area Boundaries

plot_boundaries(da_results$james, "James River")

basin_summary_table(da_results$james, "james")
Drainage area estimates by source
Source Area (sq km)
Network 1442.4
HU12 1436.6
HU10 1655.5
HU8 NA
NHDPlusHR 620.4
NWIS 1849.3
NWIS contributing 722.6
  • Boundary estimates diverge in the upper basin where glacial topography creates ambiguous divides.
  • The HU12-derived total area exceeds the contributing area by a notable margin, reflecting prairie pothole storage.

Stream Network

plot_network(da_results$james, flowlines$james, "James River")

  • The network includes a mix of perennial and intermittent reaches.
  • Intermittent channels are common in the upper basin where glacial drift creates closed depressions and episodic connectivity.
  • The lower main stem is perennial and well-defined.

HU12 Types

plot_type(da_results$james, flowlines$james, "James River")

  • Two closed-basin HU12s (brown) appear in the upper prairie-pothole headwaters — these are units with no surface outlet to the James.
  • The remaining HU12s are Standard (light grey), including the lower perennial main stem.

Black Earth Creek

Small Driftless-Area basin in southern Wisconsin (USGS streamgage 05406500). Well-determined drainage area with minimal noncontributing fraction.

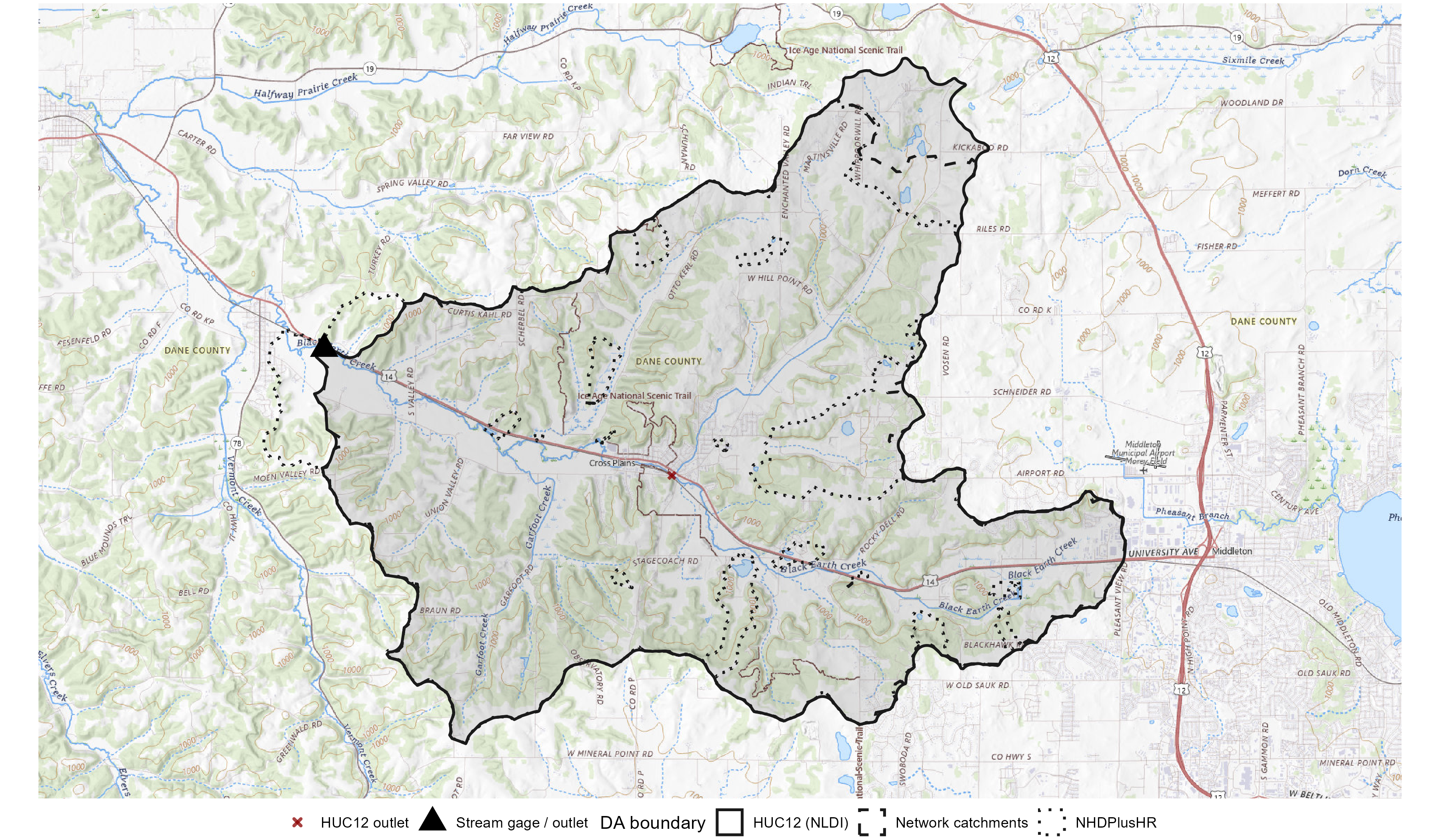

Drainage Area Boundaries

plot_boundaries(da_results$black_earth, "Black Earth Creek")

basin_summary_table(da_results$black_earth, "black_earth")
Drainage area estimates by source
Source Area (sq km)
Network 114.3
HU12 118.0
HU10 NA
HU8 NA
NHDPlusHR 107.1
NWIS 118.1
NWIS contributing 110.9
  • All boundary sources converge on a compact watershed outline.
  • The basin is small enough to fall within a single HU10, so HU10- and HU8-level boundaries are not computed separately.

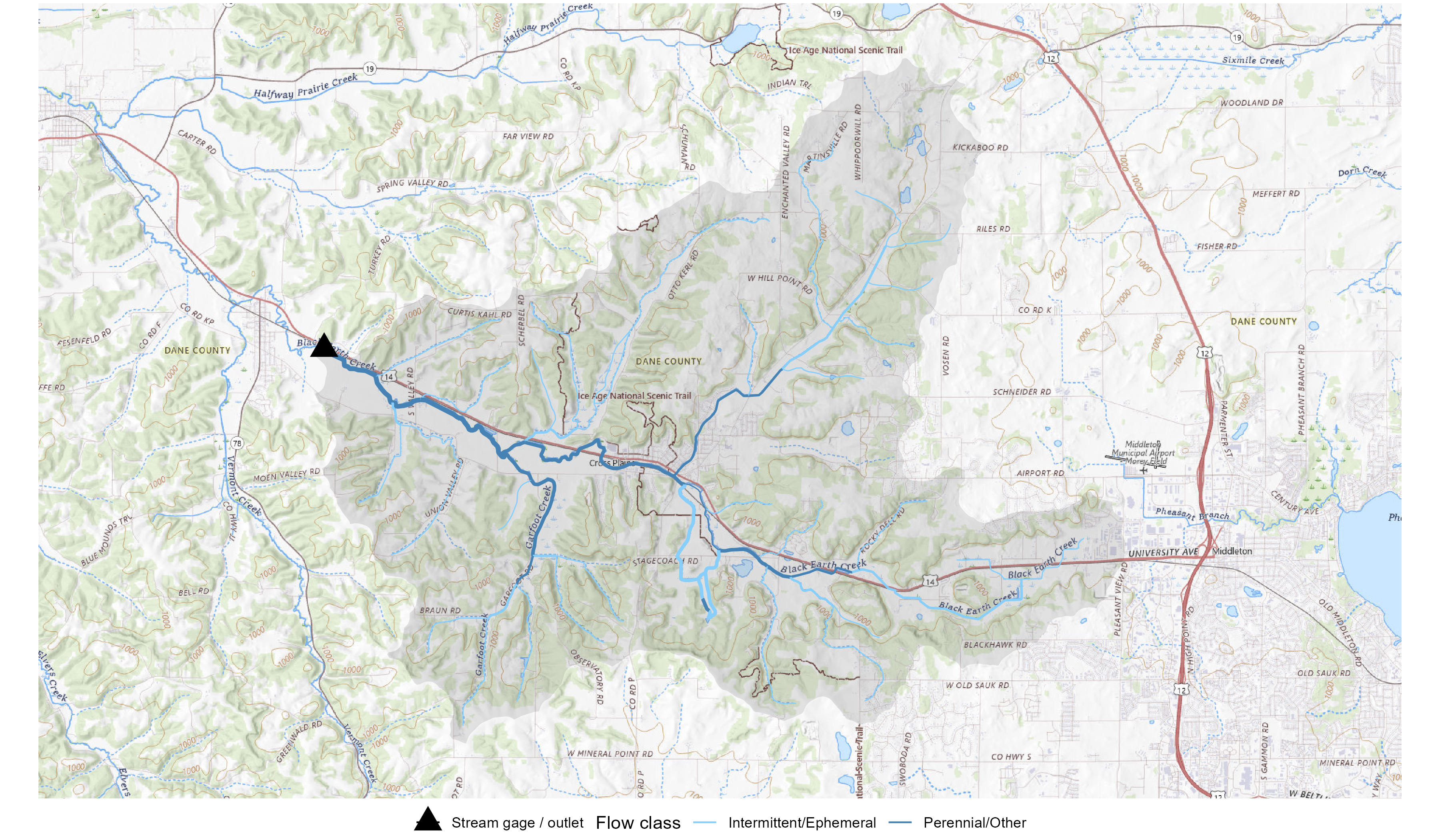

Stream Network

plot_network(da_results$black_earth, flowlines$black_earth,
  "Black Earth Creek")

  • A short, predominantly perennial network drains the Driftless Area landscape.
  • Few intermittent headwater reaches are present.

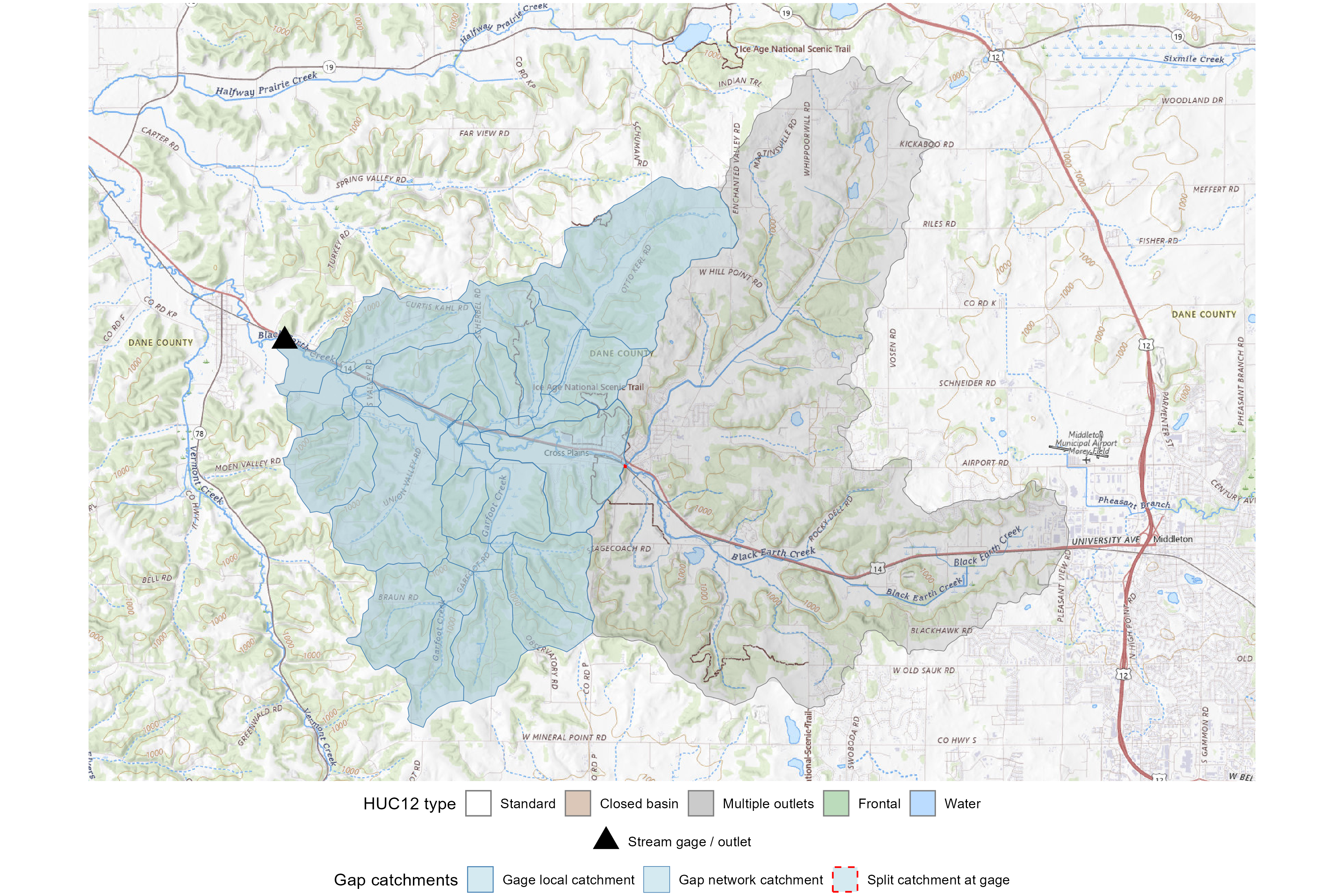

HU12 Types

plot_type(da_results$black_earth, flowlines$black_earth,
  "Black Earth Creek")

  • The single HU12 covering Black Earth Creek is Standard type (light-grey fill), consistent with a well-defined basin in Driftless-Area terrain.

Malheur Lake

Malheur Lake basin is an endorheic (closed) basin with no surface outlet. The terminal feature is a lake rather than a stream gage.

Because the start point falls in a closed-basin HU12 (Malheur Lake, 171200010710) with no flowline pour point on the NHD network, get_drainage_area_estimates() auto-promotes the parent HUC10 (1712000107) into HU_inclusion_override. The HU08 estimate then spans the full Harney-Malheur HU8 17120001 – including the lake itself, Harney Lake, and the frontal HU12s along the lake margins – rather than only the on-network HU12s reachable from the inflow tributaries.

Drainage Area Boundaries

plot_boundaries(da_results$malheur, "Malheur Lake")

basin_summary_table(da_results$malheur, "malheur")
Drainage area estimates by source
Source Area (sq km)
Network 4585.6
HU12 7307.9
HU10 9096.7
HU8 12840.2
NHDPlusHR NA
  • The basin is endorheic – all boundaries terminate at Malheur Lake with no downstream outlet.
  • HU-derived and network-derived boundaries diverge in the surrounding high-desert uplands where surface connectivity is ambiguous.
  • The shaded grey area is the merged basin envelope used as a background underlay, not an HU8 boundary.
  • The start feature (triangle) marks the centroid of the Malheur Lake waterbody polygon rather than a stream gage.

Stream Network

plot_network(da_results$malheur, flowlines$malheur, "Malheur Lake")

  • Intermittent and ephemeral reaches dominate the network, particularly in the southern and eastern tributaries.
  • Perennial flow is limited to the Silvies River and Donner und Blitzen River corridors draining into Malheur and Harney Lakes.
  • The network terminates at the lake with no surface outlet downstream.

HU12 Types

plot_type(da_results$malheur, flowlines$malheur, "Malheur Lake")

  • Closed-basin HU12s (brown) in HU8 17120001 – Malheur Lake itself, Harney Lake, Sunset Valley, and Lower Riddle Creek – mark Harney-Malheur units where surface drainage terminates internally. These are now included in the HU08 estimate via the closed-basin auto-override.
  • The brown HU12s south and southwest of the lake (Hay Lake, Capehart Lake, Mule Springs Valley, Smoky Hollow, Lake On The Trail, Foster Lake) belong to HU8 17120004 Silver Creek-Silver Lake – a separate endorheic basin pulled into the HU08 estimate because Silvies/Donner upstream HU12s share its parent HU8.
  • Water HU12s (blue) — for example, Mud Lake — designate large open water bodies coded as Water type in the current WBD.
  • Multiple-outlet HU12s (grey) appear on the low-gradient flats of the Harney Basin.
  • The surrounding Standard HU12s (light grey) supply the Silvies and Donner und Blitzen corridors that actually reach the lake.

Purgatoire River near Las Animas

Boundary placement uncertainty basin in southeastern Colorado (USGS streamgage 07128500). Flat terrain adjacent to the basin produces a drainage divide that different delineation methods place in different locations, resulting in divergent drainage area estimates for the gage and all downstream stations. Documented in Dupree and Crowfoot (2012, TM 11-C6).

Drainage Area Boundaries

plot_boundaries(da_results$purgatoire, "Purgatoire River")

basin_summary_table(da_results$purgatoire, "purgatoire")
Drainage area estimates by source
Source Area (sq km)
Network 8930.0
HU12 8875.0
HU10 8875.0
HU8 NA
NHDPlusHR 8217.8
NWIS 8912.2
NWIS contributing 8881.6
  • Boundary sources diverge in the flat terrain along the western and southern margins of the basin where the drainage divide is poorly defined.
  • Manual delineation from USGS topographic maps assigned a noncontributing area adjacent to the basin as part of the Purgatoire drainage; the WBD placed that area in the neighboring hydrologic unit to the west.
  • The resulting differences propagate to all downstream gages on the Purgatoire and Arkansas Rivers.

Stream Network

plot_network(da_results$purgatoire, flowlines$purgatoire,
  "Purgatoire River")

  • The upper basin drains steep terrain along the Sangre de Cristo Range with predominantly perennial flow.
  • The lower basin crosses the high plains where intermittent and ephemeral channels are more common and terrain gradients weaken.
  • The transition from montane headwaters to plains illustrates why the divide becomes uncertain in the lower-gradient portions of the basin.

HU12 Types

plot_type(da_results$purgatoire, flowlines$purgatoire,
  "Purgatoire River")

  • Every HU12 in the Purgatoire basin is Standard type (light-grey fill).
  • The boundary-placement-uncertainty story here is about where the WBD places the divide between Standard HU12s, not about closed-basin or multiple-outlet designations within the basin.

Outlet Catchment Splitting

When a gage sits partway along a flowline rather than at its outlet, the gage’s outlet catchment is only partly upstream of the gage. The downstream portion does not contribute to the gage and should be excluded. A similar situation arises at HU12 outlets: the HU boundary cuts through a catchment and the portion upstream of the pour point overlaps with the HU area that is already counted.

get_drainage_area_estimates() handles both splits automatically. The outlet_split_threshold_m parameter (default 100 m) controls the minimum gage-to-outlet distance before the split is performed.

This example uses a small Texas gage (USGS streamgage 08110075, Davidson Creek) where the gage falls roughly two thirds of the way up its flowline.

Overview: Gage and HU Outlet Positions

The gage (triangle) and the nearest HU12 outlet (x) sit on different catchments with a gap between them. The gap catchments (light blue) and split catchment boundaries define the area between the gage and the HU12 boundary.

p_overview <- ggplot() |>
  add_topo(focus_geom) +
  # all catchments as light underlay
  geom_sf(data = all_cat, fill = "gray30", color = NA, alpha = 0.12,
    inherit.aes = FALSE) +
  # gap catchments
  geom_sf(data = extra_cat, fill = "lightblue", color = "steelblue",
    linewidth = 0.3, alpha = 0.5, inherit.aes = FALSE) +
  # HUC12 split catchment — full outline
  geom_sf(data = hu12_catch_full, fill = NA, color = "gray10",
    linewidth = 0.6, linetype = "dashed", inherit.aes = FALSE) +
  # gage outlet catchment — full outline
  geom_sf(data = osc_full, fill = NA, color = "gray10",
    linewidth = 0.6, inherit.aes = FALSE) +
  # flowlines in the gap
  geom_sf(data = gap_fl, color = "steelblue", linewidth = 0.5,
    inherit.aes = FALSE) +
  # HUC12 outlet
  geom_sf(data = hu12_pts[hu12_pts$comid == hu12_comid, ],
    shape = 4, color = "darkred", size = 1, stroke = 0.6, alpha = 0.5,
    inherit.aes = FALSE) +
  # gage point
  geom_sf(data = gage_pt, shape = 17, color = "black",
    fill = "white", size = 5, stroke = 1.4,
    inherit.aes = FALSE) +
  coord_sf(crs = target_crs, xlim = focus_xlim, ylim = focus_ylim,
    expand = FALSE) +
  labs(title = paste0("Davidson Creek (USGS streamgage 08110075)",
    " -- Gage and HU12 Outlet Positions")) +
  map_theme()
print(p_overview)

  • The gage (triangle) and the HU12 pour point (x) sit on different catchments with several gap catchments (light blue) between them.
  • The dashed outline marks the catchment where the HU12 pour point falls; the solid outline marks the gage’s catchment.
  • Both the gage and the HU12 outlet sit partway along their respective flowlines, so splitting is needed at both locations.

HU Outlet Detail

The HU12 split catchment is small enough that it is not visible in the overview. This view zooms to a 500 m square centered on the HU12 outlet.

hu12_outlet_pt <- hu12_pts[hu12_pts$comid == hu12_comid, ]
hu12_coords <- st_coordinates(hu12_outlet_pt)
half_side <- 250 # meters in EPSG:3857
zoom_xlim <- c(hu12_coords[1, "X"] - half_side,
  hu12_coords[1, "X"] + half_side)
zoom_ylim <- c(hu12_coords[1, "Y"] - half_side,
  hu12_coords[1, "Y"] + half_side)

p_huc_zoom <- ggplot() |>
  add_topo(hu12_outlet_pt) +
  # gap catchments
  geom_sf(data = extra_cat, fill = "lightblue", color = "steelblue",
    linewidth = 0.3, alpha = 0.5, inherit.aes = FALSE) +
  # HUC12 split catchment — full outline
  geom_sf(data = hu12_catch_full, fill = NA, color = "gray10",
    linewidth = 0.6, linetype = "dashed", inherit.aes = FALSE) +
  # HUC12 split portion
  geom_sf(data = hu12_catch_split, fill = "orange", color = "gray10",
    linewidth = 0.4, alpha = 0.5, inherit.aes = FALSE) +
  # flowlines in the gap
  geom_sf(data = gap_fl, color = "steelblue", linewidth = 0.5,
    inherit.aes = FALSE) +
  # HUC12 outlet
  geom_sf(data = hu12_outlet_pt,
    shape = 4, color = "darkred", size = 1, stroke = 0.6, alpha = 0.5,
    inherit.aes = FALSE) +
  coord_sf(crs = target_crs, xlim = zoom_xlim, ylim = zoom_ylim,
    expand = FALSE) +
  labs(title = paste0("Davidson Creek -- HU12 Outlet Detail",
    " (500 m view)")) +
  map_theme()
print(p_huc_zoom)

  • The HU12 outlet (x) and its split catchment (orange fill, dashed outline) are visible at this scale.
  • The split catchment upstream of the HU outlet is excluded from the gap area because it overlaps with the HU12 drainage area.

Split Catchments: Upstream and Downstream Portions

Two catchments are split. At the gage, the downstream portion is removed because it does not contribute flow to the gage. At the HU12 outlet, the upstream portion is removed because it overlaps with the HU12 area already counted in the drainage area estimate.

# Build an sf with labeled polygons for a single legend
split_layers <- rbind(
  st_sf(
    role = "Upstream of gage (included)",
    geometry = st_geometry(osc_split)),
  st_sf(
    role = "Downstream of gage (excluded)",
    geometry = st_difference(
      st_geometry(osc_full), st_geometry(osc_split))),
  st_sf(
    role = "Upstream of HU outlet (excluded, overlaps HU)",
    geometry = st_geometry(hu12_catch_split)),
  st_sf(
    role = "Downstream of HU outlet (included as local area)",
    geometry = st_difference(
      st_geometry(hu12_catch_full), st_geometry(hu12_catch_split)))
)

split_colors <- c(
  "Upstream of gage (included)" = "#4DAF4A",
  "Downstream of gage (excluded)" = "#E41A1C",
  "Upstream of HU outlet (excluded, overlaps HU)" = "#FF7F00",
  "Downstream of HU outlet (included as local area)" = "#377EB8"
)

split_layers$role <- factor(split_layers$role,
  levels = names(split_colors))

p_split <- ggplot() |>
  add_topo(focus_geom) +
  # gap catchments as underlay
  geom_sf(data = extra_cat, fill = "gray80", color = "gray60",
    linewidth = 0.2, alpha = 0.3, inherit.aes = FALSE) +
  # split polygons with role-based fill
  geom_sf(data = split_layers,
    aes(fill = role), color = "gray20", linewidth = 0.4,
    alpha = 0.6, inherit.aes = FALSE) +
  scale_fill_manual(values = split_colors, name = NULL) +
  # flowlines
  geom_sf(data = gap_fl, color = "steelblue", linewidth = 0.5,
    inherit.aes = FALSE) +
  # HUC12 outlet
  geom_sf(data = hu12_pts[hu12_pts$comid == hu12_comid, ],
    shape = 4, color = "darkred", size = 1, stroke = 0.6, alpha = 0.5,
    inherit.aes = FALSE) +
  # gage
  geom_sf(data = gage_pt, shape = 17, color = "black",
    fill = "white", size = 5, stroke = 1.4,
    inherit.aes = FALSE) +
  coord_sf(crs = target_crs, xlim = focus_xlim, ylim = focus_ylim,
    expand = FALSE) +
  labs(title = paste0("Davidson Creek -- Split Catchment Roles"),
    subtitle = paste0(
      "Flowline measure at gage: ",
      round(da_dav$outlet_flowline_measure, 1),
      "; downstream removed: ",
      round(osc_full$dasqkm - osc_split$dasqkm, 2), " km\u00B2")) +
  map_theme() +
  guides(fill = guide_legend(ncol = 1))
print(p_split)

  • Green: the portion of the gage’s catchment upstream of the gage — this area is included in the drainage area estimate.
  • Red: the portion downstream of the gage — excluded because it does not contribute flow to the gage.
  • Orange: the portion of the HU12 outlet catchment upstream of the pour point — excluded because this area is already counted as part of the HU12 drainage area.
  • Blue: the portion downstream of the HU12 outlet — included as local area in the gap between the HU boundary and the gage.
  • The outlet_split_threshold_m parameter (default 100 m) controls whether the gage split is performed. If the gage is within the threshold distance of the catchment outlet, no split occurs.
