USGS dataretrieval Python Package get_field_measurements() Examples

This notebook provides examples of using the Python dataretrieval package to retrieve groundwater level field measurements for a United States Geological Survey (USGS) monitoring location. The dataretrieval package provides a collection of functions to get data from the USGS Water Data API and other online sources of hydrology and water quality data.

Install the Package

Use the following code to install the package if it doesn’t exist already within your Jupyter Python environment.

[1]:
!pip install dataretrieval
Requirement already satisfied: dataretrieval in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (0.1.dev1+g7f64c2de7)
Requirement already satisfied: httpx in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from dataretrieval) (0.28.1)
Requirement already satisfied: pandas<4.0.0,>=2.0.0 in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from dataretrieval) (3.0.3)
Requirement already satisfied: numpy>=1.26.0 in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from pandas<4.0.0,>=2.0.0->dataretrieval) (2.4.6)
Requirement already satisfied: python-dateutil>=2.8.2 in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from pandas<4.0.0,>=2.0.0->dataretrieval) (2.9.0.post0)
Requirement already satisfied: six>=1.5 in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from python-dateutil>=2.8.2->pandas<4.0.0,>=2.0.0->dataretrieval) (1.17.0)
Requirement already satisfied: anyio in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from httpx->dataretrieval) (4.13.0)
Requirement already satisfied: certifi in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from httpx->dataretrieval) (2026.5.20)
Requirement already satisfied: httpcore==1.* in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from httpx->dataretrieval) (1.0.9)
Requirement already satisfied: idna in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from httpx->dataretrieval) (3.16)
Requirement already satisfied: h11>=0.16 in /opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages (from httpcore==1.*->httpx->dataretrieval) (0.16.0)

Load the package so you can use it along with other packages used in this notebook.

[2]:
from IPython.display import display

import dataretrieval.waterdata as waterdata

Basic Usage

The dataretrieval package has several functions that allow you to retrieve data from different services of the USGS Water Data API. This example uses the get_field_measurements() function to retrieve groundwater level field measurements. Field measurements are physically measured values collected during a visit to a monitoring location and are commonly used to record groundwater levels. The following arguments are commonly used:

  • monitoring_location_id (string or list of strings): A unique identifier representing one or more monitoring locations. IDs combine the responsible agency code with the location number, separated by a hyphen (e.g. USGS-434400121275801).

  • parameter_code (string or list of strings): One or more 5-digit codes identifying the constituent measured and its units of measure.

  • time (string): The date an observation represents. Accepts a single RFC 3339 date-time, a bounded or half-bounded interval (e.g. "1980-01-01/2000-12-31", "1980-01-01/.."), or an ISO 8601 duration (e.g. "P20Y"). Only observations whose time intersects this value are returned.

  • skip_geometry (boolean): If True, response geometries are omitted and the returned data frame contains no spatial information.

Example 1: Get groundwater level field measurements for a single monitoring location.

[3]:
# Set the parameters needed to retrieve data
site_id = "USGS-434400121275801"

# Retrieve the data
data = waterdata.get_field_measurements(monitoring_location_id=site_id)
print("Retrieved " + str(len(data[0])) + " data values.")
Retrieving: field-measurements · 1 page · 744 rows
No API key detected — register for higher rate limits at https://api.waterdata.usgs.gov/signup/
Retrieved 744 data values.

Interpreting the Result

The get_field_measurements() function returns a tuple of two objects: a pandas data frame containing the requested data and an associated metadata object. The data frame is flat, using a default integer index, and the observation dates are held in its time column.

Once you’ve got the data frame, there are several useful things you can do to explore the data.

Display the data frame as a table

[4]:
display(data[0])
geometry field_measurements_series_id field_visit_id parameter_code monitoring_location_id observing_procedure_code observing_procedure value unit_of_measure time qualifier vertical_datum approval_status measuring_agency last_modified control_condition measurement_rated field_measurement_id
0 POINT (-121.46711 43.73345) df253a1c-d93c-4c08-ac49-6cbdc309712a c722cb49-bca8-446f-9b4d-3b152729bb39 62610 USGS-434400121275801 O GW level, estim, report, observ 4192.65 ft 1945-10-12 22:35:00+00:00 [Static] NGVD29 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 1c77fe40-58ac-4923-a4db-05f6d0ebb147
1 POINT (-121.46711 43.73345) 7e4dd765-b0ea-485b-915c-b89eeb86c83e c722cb49-bca8-446f-9b4d-3b152729bb39 62611 USGS-434400121275801 O GW level, estim, report, observ 4196.67 ft 1945-10-12 22:35:00+00:00 [Static] NAVD88 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 2980c321-aeff-442b-a665-8358a8fc0496
2 POINT (-121.46711 43.73345) f997334d-2dc4-49ff-8fab-2e6d2d7c501e c722cb49-bca8-446f-9b4d-3b152729bb39 72019 USGS-434400121275801 O GW level, estim, report, observ 27.35 ft 1945-10-12 22:35:00+00:00 [Static] Local Assumed Datum Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 46bf0d00-0b47-4e4d-adcf-9ce1073c5cfc
3 POINT (-121.46711 43.73345) 7e4dd765-b0ea-485b-915c-b89eeb86c83e 0217fd12-a22a-4f4f-a43c-3b9907e2fcc3 62611 USGS-434400121275801 O GW level, estim, report, observ 4194.34 ft 1946-07-12 12:00:00+00:00 [Static] NAVD88 Approved OR004 2026-05-09 02:57:58.983507+00:00 None None 92f8aaef-b563-4f7f-9b84-9796e26b2c7f
4 POINT (-121.46711 43.73345) df253a1c-d93c-4c08-ac49-6cbdc309712a 0217fd12-a22a-4f4f-a43c-3b9907e2fcc3 62610 USGS-434400121275801 O GW level, estim, report, observ 4190.32 ft 1946-07-12 12:00:00+00:00 [Static] NGVD29 Approved OR004 2026-05-09 02:57:58.983507+00:00 None None ddd35e5d-4815-4f8d-a1d2-29cd1d9bdca3
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
739 POINT (-121.46711 43.73345) 7e4dd765-b0ea-485b-915c-b89eeb86c83e 065dc2e2-2e2d-4f40-8d50-3cb3afd914fe 62611 USGS-434400121275801 S GW level, steel tape 4195.89 ft 2015-10-22 17:52:00+00:00 [Static] NAVD88 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None bc2c0947-4aea-4bae-a345-ba11445533a6
740 POINT (-121.46711 43.73345) f997334d-2dc4-49ff-8fab-2e6d2d7c501e 065dc2e2-2e2d-4f40-8d50-3cb3afd914fe 72019 USGS-434400121275801 S GW level, steel tape 28.13 ft 2015-10-22 17:52:00+00:00 [Static] Local Assumed Datum Approved USGS 2026-05-09 02:57:58.983507+00:00 None None dcfd8883-a8e7-4f5f-adbd-a5080b0c96ee
741 POINT (-121.46711 43.73345) f997334d-2dc4-49ff-8fab-2e6d2d7c501e 7b45dc93-704a-4b0d-9772-692a09abc95a 72019 USGS-434400121275801 S GW level, steel tape 28.33 ft 2016-10-26 16:22:00+00:00 [Static] Local Assumed Datum Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 8bf92ece-bf8d-44b0-8a50-0bbb9fb2badc
742 POINT (-121.46711 43.73345) df253a1c-d93c-4c08-ac49-6cbdc309712a 7b45dc93-704a-4b0d-9772-692a09abc95a 62610 USGS-434400121275801 S GW level, steel tape 4191.67 ft 2016-10-26 16:22:00+00:00 [Static] NGVD29 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 8cb0f8e4-642e-49db-acea-a724bcf13e7f
743 POINT (-121.46711 43.73345) 7e4dd765-b0ea-485b-915c-b89eeb86c83e 7b45dc93-704a-4b0d-9772-692a09abc95a 62611 USGS-434400121275801 S GW level, steel tape 4195.69 ft 2016-10-26 16:22:00+00:00 [Static] NAVD88 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None c70d9c80-1048-4b12-ba30-e43ef77d4dad

744 rows × 18 columns

Show the data types of the columns in the resulting data frame.

[5]:
print(data[0].dtypes)
geometry                                   geometry
field_measurements_series_id                    str
field_visit_id                                  str
parameter_code                                  str
monitoring_location_id                          str
observing_procedure_code                        str
observing_procedure                             str
value                                       float64
unit_of_measure                                 str
time                            datetime64[us, UTC]
qualifier                                    object
vertical_datum                                  str
approval_status                                 str
measuring_agency                                str
last_modified                   datetime64[us, UTC]
control_condition                            object
measurement_rated                            object
field_measurement_id                            str
dtype: object

Get summary statistics for the measured groundwater level values.

[6]:
data[0]["value"].describe()
[6]:
count     744.000000
mean     2806.776465
std      1969.270464
min        10.900000
25%        27.385000
50%      4194.190000
75%      4199.645000
max      4213.120000
Name: value, dtype: float64

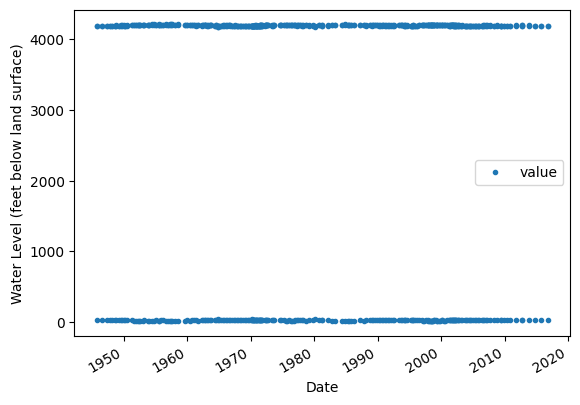

Make a quick time series plot.

[7]:
ax = data[0][["time", "value"]].plot(x="time", y="value", style=".")
ax.set_xlabel("Date")
ax.set_ylabel("Water Level (feet below land surface)")
[7]:
Text(0, 0.5, 'Water Level (feet below land surface)')
../_images/examples_USGS_WaterData_GroundwaterLevels_Examples_16_1.png

The other part of the result returned from the get_field_measurements() function is a metadata object that contains information about the query that was executed to return the data. For example, you can access the URL that was assembled to retrieve the requested data from the USGS Water Data API.

[8]:
print("The query URL used to retrieve the data from the Water Data API was: " + data[1].url)
The query URL used to retrieve the data from the Water Data API was: https://api.waterdata.usgs.gov/ogcapi/v0/collections/field-measurements/items?monitoring_location_id=USGS-434400121275801&skipGeometry=false&limit=50000

Additional Examples

You can also request data for multiple monitoring locations at the same time.

Example 2: Get data for multiple monitoring locations. The monitoring location ids are passed as a list of strings.

[9]:
site_ids = ["USGS-434400121275801", "USGS-375907091432201"]
data2 = waterdata.get_field_measurements(monitoring_location_id=site_ids)
print("Retrieved " + str(len(data2[0])) + " data values.")
display(data2[0])
Retrieving: field-measurements · 1 page · 933 rows
Retrieved 933 data values.
geometry field_measurements_series_id field_visit_id parameter_code monitoring_location_id observing_procedure_code observing_procedure value unit_of_measure time qualifier vertical_datum approval_status measuring_agency last_modified control_condition measurement_rated field_measurement_id
0 POINT (-121.46711 43.73345) df253a1c-d93c-4c08-ac49-6cbdc309712a c722cb49-bca8-446f-9b4d-3b152729bb39 62610 USGS-434400121275801 O GW level, estim, report, observ 4192.65 ft 1945-10-12 22:35:00+00:00 [Static] NGVD29 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 1c77fe40-58ac-4923-a4db-05f6d0ebb147
1 POINT (-121.46711 43.73345) 7e4dd765-b0ea-485b-915c-b89eeb86c83e c722cb49-bca8-446f-9b4d-3b152729bb39 62611 USGS-434400121275801 O GW level, estim, report, observ 4196.67 ft 1945-10-12 22:35:00+00:00 [Static] NAVD88 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 2980c321-aeff-442b-a665-8358a8fc0496
2 POINT (-121.46711 43.73345) f997334d-2dc4-49ff-8fab-2e6d2d7c501e c722cb49-bca8-446f-9b4d-3b152729bb39 72019 USGS-434400121275801 O GW level, estim, report, observ 27.35 ft 1945-10-12 22:35:00+00:00 [Static] Local Assumed Datum Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 46bf0d00-0b47-4e4d-adcf-9ce1073c5cfc
3 POINT (-121.46711 43.73345) 7e4dd765-b0ea-485b-915c-b89eeb86c83e 0217fd12-a22a-4f4f-a43c-3b9907e2fcc3 62611 USGS-434400121275801 O GW level, estim, report, observ 4194.34 ft 1946-07-12 12:00:00+00:00 [Static] NAVD88 Approved OR004 2026-05-09 02:57:58.983507+00:00 None None 92f8aaef-b563-4f7f-9b84-9796e26b2c7f
4 POINT (-121.46711 43.73345) df253a1c-d93c-4c08-ac49-6cbdc309712a 0217fd12-a22a-4f4f-a43c-3b9907e2fcc3 62610 USGS-434400121275801 O GW level, estim, report, observ 4190.32 ft 1946-07-12 12:00:00+00:00 [Static] NGVD29 Approved OR004 2026-05-09 02:57:58.983507+00:00 None None ddd35e5d-4815-4f8d-a1d2-29cd1d9bdca3
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
928 POINT (-91.72294 37.98615) ca0f3961-1a5e-4961-bf55-fd6ac787c98d 48bfbbaa-5db8-4ba2-9e90-742166552bec 72019 USGS-375907091432201 V GW level, calib electric tape 310.46 ft 2020-06-19 16:04:00+00:00 [Static] Local Assumed Datum Approved MO005 2026-05-24 03:45:01.382842+00:00 None None 86a25600-2327-4ded-802e-49da0cda3f0f
929 POINT (-91.72294 37.98615) a2831c0f-120e-4d81-85e0-2a075f3efe93 48bfbbaa-5db8-4ba2-9e90-742166552bec 62610 USGS-375907091432201 V GW level, calib electric tape 878.54 ft 2020-06-19 16:04:00+00:00 [Static] NGVD29 Approved MO005 2026-05-24 03:45:01.382842+00:00 None None a4c2a304-dcdd-4dc7-abca-84327b0c9f6b
930 POINT (-91.72294 37.98615) ca0f3961-1a5e-4961-bf55-fd6ac787c98d 68eeb933-ea4d-4e8c-be48-605c06cb36fc 72019 USGS-375907091432201 V GW level, calib electric tape 313.48 ft 2020-08-31 13:00:00+00:00 [Static] Local Assumed Datum Approved MO005 2026-05-24 03:45:01.382842+00:00 None None 6b812ee5-8821-44fb-93cc-2884257c99bb
931 POINT (-91.72294 37.98615) 4313fc31-8700-42b7-99fd-87076c30d305 68eeb933-ea4d-4e8c-be48-605c06cb36fc 62611 USGS-375907091432201 V GW level, calib electric tape 875.66 ft 2020-08-31 13:00:00+00:00 [Static] NAVD88 Approved MO005 2026-05-24 03:45:01.382842+00:00 None None 7bbcdb45-2154-4fe3-aee7-c3e2bba2bb9b
932 POINT (-91.72294 37.98615) a2831c0f-120e-4d81-85e0-2a075f3efe93 68eeb933-ea4d-4e8c-be48-605c06cb36fc 62610 USGS-375907091432201 V GW level, calib electric tape 875.52 ft 2020-08-31 13:00:00+00:00 [Static] NGVD29 Approved MO005 2026-05-24 03:45:01.382842+00:00 None None 83f31c13-a956-4b43-aa3a-e9cdfe7d674d

933 rows × 18 columns

The following example requests the same data as the previous example, again passing the monitoring location ids as a list of strings.

[10]:
site_ids = ["USGS-434400121275801", "USGS-375907091432201"]
data2 = waterdata.get_field_measurements(monitoring_location_id=site_ids, )
print("Retrieved " + str(len(data2[0])) + " data values.")
display(data2[0])
Retrieving: field-measurements · 1 page · 933 rows
Retrieved 933 data values.
geometry field_measurements_series_id field_visit_id parameter_code monitoring_location_id observing_procedure_code observing_procedure value unit_of_measure time qualifier vertical_datum approval_status measuring_agency last_modified control_condition measurement_rated field_measurement_id
0 POINT (-121.46711 43.73345) df253a1c-d93c-4c08-ac49-6cbdc309712a c722cb49-bca8-446f-9b4d-3b152729bb39 62610 USGS-434400121275801 O GW level, estim, report, observ 4192.65 ft 1945-10-12 22:35:00+00:00 [Static] NGVD29 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 1c77fe40-58ac-4923-a4db-05f6d0ebb147
1 POINT (-121.46711 43.73345) 7e4dd765-b0ea-485b-915c-b89eeb86c83e c722cb49-bca8-446f-9b4d-3b152729bb39 62611 USGS-434400121275801 O GW level, estim, report, observ 4196.67 ft 1945-10-12 22:35:00+00:00 [Static] NAVD88 Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 2980c321-aeff-442b-a665-8358a8fc0496
2 POINT (-121.46711 43.73345) f997334d-2dc4-49ff-8fab-2e6d2d7c501e c722cb49-bca8-446f-9b4d-3b152729bb39 72019 USGS-434400121275801 O GW level, estim, report, observ 27.35 ft 1945-10-12 22:35:00+00:00 [Static] Local Assumed Datum Approved USGS 2026-05-09 02:57:58.983507+00:00 None None 46bf0d00-0b47-4e4d-adcf-9ce1073c5cfc
3 POINT (-121.46711 43.73345) 7e4dd765-b0ea-485b-915c-b89eeb86c83e 0217fd12-a22a-4f4f-a43c-3b9907e2fcc3 62611 USGS-434400121275801 O GW level, estim, report, observ 4194.34 ft 1946-07-12 12:00:00+00:00 [Static] NAVD88 Approved OR004 2026-05-09 02:57:58.983507+00:00 None None 92f8aaef-b563-4f7f-9b84-9796e26b2c7f
4 POINT (-121.46711 43.73345) df253a1c-d93c-4c08-ac49-6cbdc309712a 0217fd12-a22a-4f4f-a43c-3b9907e2fcc3 62610 USGS-434400121275801 O GW level, estim, report, observ 4190.32 ft 1946-07-12 12:00:00+00:00 [Static] NGVD29 Approved OR004 2026-05-09 02:57:58.983507+00:00 None None ddd35e5d-4815-4f8d-a1d2-29cd1d9bdca3
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
928 POINT (-91.72294 37.98615) ca0f3961-1a5e-4961-bf55-fd6ac787c98d 48bfbbaa-5db8-4ba2-9e90-742166552bec 72019 USGS-375907091432201 V GW level, calib electric tape 310.46 ft 2020-06-19 16:04:00+00:00 [Static] Local Assumed Datum Approved MO005 2026-05-24 03:45:01.382842+00:00 None None 86a25600-2327-4ded-802e-49da0cda3f0f
929 POINT (-91.72294 37.98615) a2831c0f-120e-4d81-85e0-2a075f3efe93 48bfbbaa-5db8-4ba2-9e90-742166552bec 62610 USGS-375907091432201 V GW level, calib electric tape 878.54 ft 2020-06-19 16:04:00+00:00 [Static] NGVD29 Approved MO005 2026-05-24 03:45:01.382842+00:00 None None a4c2a304-dcdd-4dc7-abca-84327b0c9f6b
930 POINT (-91.72294 37.98615) ca0f3961-1a5e-4961-bf55-fd6ac787c98d 68eeb933-ea4d-4e8c-be48-605c06cb36fc 72019 USGS-375907091432201 V GW level, calib electric tape 313.48 ft 2020-08-31 13:00:00+00:00 [Static] Local Assumed Datum Approved MO005 2026-05-24 03:45:01.382842+00:00 None None 6b812ee5-8821-44fb-93cc-2884257c99bb
931 POINT (-91.72294 37.98615) 4313fc31-8700-42b7-99fd-87076c30d305 68eeb933-ea4d-4e8c-be48-605c06cb36fc 62611 USGS-375907091432201 V GW level, calib electric tape 875.66 ft 2020-08-31 13:00:00+00:00 [Static] NAVD88 Approved MO005 2026-05-24 03:45:01.382842+00:00 None None 7bbcdb45-2154-4fe3-aee7-c3e2bba2bb9b
932 POINT (-91.72294 37.98615) a2831c0f-120e-4d81-85e0-2a075f3efe93 68eeb933-ea4d-4e8c-be48-605c06cb36fc 62610 USGS-375907091432201 V GW level, calib electric tape 875.52 ft 2020-08-31 13:00:00+00:00 [Static] NGVD29 Approved MO005 2026-05-24 03:45:01.382842+00:00 None None 83f31c13-a956-4b43-aa3a-e9cdfe7d674d

933 rows × 18 columns

Some groundwater level data have dates that include only a year or a month and year, but no day.

Example 3: Retrieve groundwater level data that have dates without a day.

[11]:
data3 = waterdata.get_field_measurements(monitoring_location_id="USGS-425957088141001")
print("Retrieved " + str(len(data3[0])) + " data values.")

# Print the date/time index values, which show up as NaT because
# the dates can't be converted to a date/time data type
print(data3[0].index)
Retrieving: field-measurements · 1 page · 102 rows
Retrieved 102 data values.
RangeIndex(start=0, stop=102, step=1)

If you want to inspect the request that was sent, you can get the URL for the query that was issued to the USGS Water Data API.

[12]:
# Print the URL used to retrieve the data
print("You can examine the data retrieved from the Water Data API at: " + data3[1].url)
You can examine the data retrieved from the Water Data API at: https://api.waterdata.usgs.gov/ogcapi/v0/collections/field-measurements/items?monitoring_location_id=USGS-425957088141001&skipGeometry=false&limit=50000

You can also retrieve data for a monitoring location within a specified time window by giving a start and end date.

Example 4: Get groundwater level data for a monitoring location between a start and end date.

[13]:
data4 = waterdata.get_field_measurements(monitoring_location_id=site_id, time="1980-01-01/2000-12-31")
print("Retrieved " + str(len(data4[0])) + " data values.")
Retrieving: field-measurements · 1 page · 213 rows
Retrieved 213 data values.
