10a: Particle tracking with MODFLOW 6 PRT
In this exercise, we will use the MODFLOW 6 Particle Tracking (PRT) Model to simulate advective transport with a quadtree version of the Freyberg flow model.
The PRT Model calculates three-dimensional, advective particle trajectories in flowing groundwater. The PRT Model is designed to work with the MODFLOW 6 Groundwater Flow (GWF) Model and uses the same spatial discretization, which may be represented using either a structured (DIS) or an unstructured (DISV) grid. The PRT Model replicates much of the functionality of MODPATH 7 and offers support for a much broader class of unstructured grids. The PRT Model can be run in the same simulation as the associated GWF Model or in a separate simulation that reads previously calculated flows from a binary budget file. Currently, the PRT Model documented does not support grids of DISU type, tracking of particles through advanced stress package features such as lakes or streams reaches, or exchange of particles between PRT models.
This exercise demonstrates setting up and running the PRT Model in a separate simulation contained in a subfolder of the groundwater flow model workspace. We will also do some basic post-processing- making plots and exporting results to a GeoPackage for visualization in a GIS environment.
[1]:
from IPython.display import clear_output, display
import os
from pathlib import Path
import numpy as np
import pandas as pd
import geopandas as gpd
import matplotlib.pyplot as plt
from flopy.utils.gridintersect import GridIntersect
import flopy
The location of the contamination patch and the nodes that the define bounding cells of the patch are calculated below.
[2]:
# patch upper left and lower right
xmin, xmax = 250. * 1, 250. * 3
ymin, ymax = (40 - 14) * 250., (40 - 11) * 250.
csx, csy = [xmin, xmin, xmax, xmax, xmin], [ymin, ymax, ymax, ymin, ymin]
polygon = [list(zip(csx, csy))]
(xmin, ymax), (xmax, ymin)
[2]:
((250.0, 7250.0), (750.0, 6500.0))
Define the workspace, model names and key options.
[3]:
load_ws = Path('data/quadtree')
gwf_ws = Path("temp/ex10a")
gwf_name = "project"
#name_mp = f"{name}_mp"
exe_name = 'mf6'
# flow model output files to use with PRT
headfile = f"{gwf_name}.hds"
budgetfile = f"{gwf_name}.cbc"
prt_name = f"{gwf_name}-prt"
prt_model_ws = gwf_ws / 'prt'
# PRT output files
budgetfile_prt = f"{prt_name}.cbc"
trackfile_prt = f"{prt_name}.trk"
trackcsvfile_prt = f"{prt_name}.trk.csv"
# if using "local_z" option
# 1=start particles at top of cell
# 0=start particles at bottom of cell
# 1 resulted in Error: release point (z=29.899951638778955) is above grid top 29.886768340000000
particle_release_zrpt = .99
Load the MODFLOW 6 Model
Load a simulation object using flopy.mf6.MFSimulation().load().
[4]:
%%capture
sim = flopy.mf6.MFSimulation.load(sim_name=gwf_name, exe_name=exe_name,
sim_ws=load_ws)
Load the groundwater flow model
[5]:
gwf = sim.get_model(gwf_name)
gwf.modelgrid
[5]:
xll:0.0; yll:0.0; rotation:0.0; units:meters; lenuni:2
Change the workspace
(so that we don’t modify the original flow model)
[6]:
sim.set_sim_path(gwf_ws)
Add save_saturation and save_flows to the NPF Package
(required for PRT)
[7]:
gwf.npf.save_saturation = True
gwf.npf.save_flows = True
Write the model files
[8]:
%%capture
sim.write_simulation()
Add IFLOWFACE=6 information to the SFR Package
This may not be necessary here because of the quadtree grid (that is refined in the stream cells), but it is often best practice.
Particle tracking with numerical models is prone to the problem of weak sinks, where a sink (flux of water leaving a cell) is not strong enough to capture all of the flow through that cell. In other words, one or more cell faces still has outward flow, allowing water to pass through the cell. By default, PRT and MODPATH assume that sinks are distributed uniformly throughout a cell (IFLOWFACE=0 or IFACE=0; see below). This setting is appropriate for wells, but for surface water features
(especially small streams), this often prevents particles from discharging, leading to unrealistic pathlines and travel times. Some possible solutions:
reduce the grid size until all cells of interest are strong sinks
set
STOP_AT_WEAK_SINK=Truein the PRT Particle Release (PRP) input (or the equivalent setting in MODPATH), causing all particles to terminate at weak sinks. This option is often not appropriate for small streams, which in many cases should act as weak sinks (only capturing the shallowest particles).set
IFLOWFACE=-1orIFACE=6for cells with surface water boundary conditions, to instruct PRT or MODPATH to apply the sink discharge to the top face. In cells with small (weak) streams, assuming the stream bottom corresponds to the cell top, shallow particles that are near the top of the cell will discharge, while deeper particles will be allowed to pass through realistically. Abrams and others (2013) discuss this concept in more detail.
From the MODFLOW 6 I/O guide: By default, flows associated with stress packages are assumed to be distributed uniformly over the volume of a cell. Distributed external inflows and outflows are reflected in the cell-cell flows calculated by the GWF Model, but they are not directly involved in determining the normal face velocities used to track a particle through the cell. The user can optionally assign a flow associated with a stress package to any face of the cell. Assignment of external flows is done by setting the value of an auxiliary package variable called IFLOWFACE to a value that corresponds to one of the cell faces. To accommodate non-rectangular cells, the IFLOWFACE numbering scheme in the PRT Model is based on clockwise ordering of the lateral cell faces. For a DIS-grid cell, IFLOWFACE = 1 corresponds to the “western” face, i.e., the face parallel to the y axis that has the lesser x coordinate. For a DISV-grid cell, IFLOWFACE = 1 corresponds to the face that extends in the clockwise direction from the first vertex listed for that cell in the CELL2D input block. IFLOWFACE numbering of lateral cell faces proceeds in clockwise direction. IFLOWFACE = -2 corresponds to the cell bottom, and IFLOWFACE = -1 corresponds to the cell top.
In MODPATH 7 (and earlier) IFACE is equivalent to IFLOWFACE in MODFLOW 6 PRT. Default IFACE values can be specified by package, or IFACE can be specified by cell (see the docs). A key difference is that IFACE=6 corresponds to the top of the cell, and IFACE=5 corresponds to the bottom.
1) Using Flopy
Add an auxiliary column named 'iflowface' to the Options block
[9]:
from copy import deepcopy
gwf2 = deepcopy(gwf)
[10]:
gwf2.sfr.auxiliary = ['iflowface']
gwf2.sfr.auxiliary
[10]:
{internal}
(rec.array([('auxiliary', 'iflowface')],
dtype=[('auxiliary_0', 'O'), ('auxiliary_1', 'O')]))
Add iflowface to the package data
[11]:
packagedata = pd.DataFrame(gwf2.sfr.packagedata.array)
# insert the auxiliary column before the existing boundname column
# (so that the boundname column is still last)
packagedata.insert(len(packagedata.columns)-1, 'iflowface', -1)
# make sure the iflowface column is an integer!
packagedata['iflowface'] = packagedata['iflowface'].astype(int)
# cast packagedata back to a recarray (required by Flopy)
# Note: index=False is needed here,
# otherwise the extra index column inserted by pandas edges out the boundnames column
# resulting in no boundnames being passed to Flopy
gwf2.sfr.packagedata.set_data(packagedata.to_records(index=False))
[12]:
gwf2.sfr.packagedata.array[:5]
[12]:
rec.array([(0, (2, 18), 15.65968373, 5.00315229, 0.00016104, 16.49873908, 0.50063046, 3.5, '0.035', 1, 1., 0, -1, 'upstream'),
(1, (2, 20), 15.65968373, 5.00945687, 0.00016104, 16.49621725, 0.50189137, 3.5, '0.035', 2, 1., 0, -1, 'upstream'),
(2, (2, 23), 15.65968373, 5.01576145, 0.00016104, 16.49369542, 0.50315229, 3.5, '0.035', 2, 1., 0, -1, 'upstream'),
(3, (2, 25), 15.65968373, 5.02206603, 0.00016104, 16.49117359, 0.50441321, 3.5, '0.035', 2, 1., 0, -1, 'upstream'),
(4, (2, 29), 15.65968373, 5.02837061, 0.00016104, 16.48865175, 0.50567412, 3.5, '0.035', 2, 1., 0, -1, 'upstream')],
dtype=[('ifno', '<i8'), ('cellid', 'O'), ('rlen', '<f8'), ('rwid', '<f8'), ('rgrd', '<f8'), ('rtp', '<f8'), ('rbth', '<f8'), ('rhk', '<f8'), ('man', 'O'), ('ncon', '<i8'), ('ustrf', '<f8'), ('ndv', '<i8'), ('iflowface', '<i8'), ('boundname', 'O')])
Alternatively, we can write the model files, and then edit the SFR Package file directly.
[13]:
write_iflowface = True
set_iflowface = -1
#original_sfr_filename = load_ws / gwf.sfr.filename
sfr_filename = gwf_ws / gwf.sfr.filename
original_sfr_filename = sfr_filename
new_sfr_lines = list()
package_already_has_iflowface = False
aux_entry_added = False
boundnames = False
with open(original_sfr_filename) as src:
for line in src:
normalized_line = ' '.join(line.lower().split()).lower()
if 'begin options' in normalized_line:
new_sfr_lines.append(line)
for line in src:
normalized_line = ' '.join(line.lower().split()).lower()
if 'boundnames' in normalized_line:
boundnames = True
if 'auxiliary' in normalized_line:
if 'iflowface' not in normalized_line:
items = line.strip().split()
items.append('iflowface')
new_sfr_lines.append(f" {' '.join(items)}\n")
else:
new_sfr_lines.append(line)
package_already_has_iflowface = True
aux_entry_added = True
elif not aux_entry_added and 'end options' in normalized_line:
new_sfr_lines.append(' auxiliary iflowface\n')
new_sfr_lines.append(line)
aux_entry_added = True
break
elif 'end options' in normalized_line:
break
else:
new_sfr_lines.append(line)
elif 'begin packagedata' in normalized_line:
new_sfr_lines.append(line)
for line in src:
if 'end packagedata' in line.lower():
new_sfr_lines.append(line)
break
items = line.strip().split()
# if there's a boundname column, it needs to be last
if boundnames:
items.insert(-1, str(set_iflowface))
else:
items.append(set_iflowface)
new_sfr_lines.append(f" {' '.join(items)}\n")
else:
new_sfr_lines.append(line)
if write_iflowface and not package_already_has_iflowface:
with open(sfr_filename, 'w') as dest:
for line in new_sfr_lines:
dest.write(line)
Run the simulation.
[14]:
sim.run_simulation()
FloPy is using the following executable to run the model: ../../../../../../../../../.local/bin/mf6
MODFLOW 6
U.S. GEOLOGICAL SURVEY MODULAR HYDROLOGIC MODEL
VERSION 6.7.0 02/05/2026
MODFLOW 6 compiled Feb 05 2026 22:38:38 with Intel(R) Fortran Intel(R) 64
Compiler Classic for applications running on Intel(R) 64, Version 2021.6.0
Build 20220226_000000
This software has been approved for release by the U.S. Geological
Survey (USGS). Although the software has been subjected to rigorous
review, the USGS reserves the right to update the software as needed
pursuant to further analysis and review. No warranty, expressed or
implied, is made by the USGS or the U.S. Government as to the
functionality of the software and related material nor shall the
fact of release constitute any such warranty. Furthermore, the
software is released on condition that neither the USGS nor the U.S.
Government shall be held liable for any damages resulting from its
authorized or unauthorized use. Also refer to the USGS Water
Resources Software User Rights Notice for complete use, copyright,
and distribution information.
MODFLOW runs in SEQUENTIAL mode
Run start date and time (yyyy/mm/dd hh:mm:ss): 2026/06/18 20:06:40
Writing simulation list file: mfsim.lst
Using Simulation name file: mfsim.nam
Solving: Stress period: 1 Time step: 1
Run end date and time (yyyy/mm/dd hh:mm:ss): 2026/06/18 20:06:40
Elapsed run time: 0.390 Seconds
WARNING REPORT:
1. OPTIONS BLOCK VARIABLE 'UNIT_CONVERSION' IN FILE 'project.sfr' WAS
DEPRECATED IN VERSION 6.4.2. SETTING UNIT_CONVERSION DIRECTLY.
Normal termination of simulation.
[14]:
(True, [])
Create and Run the PRT model

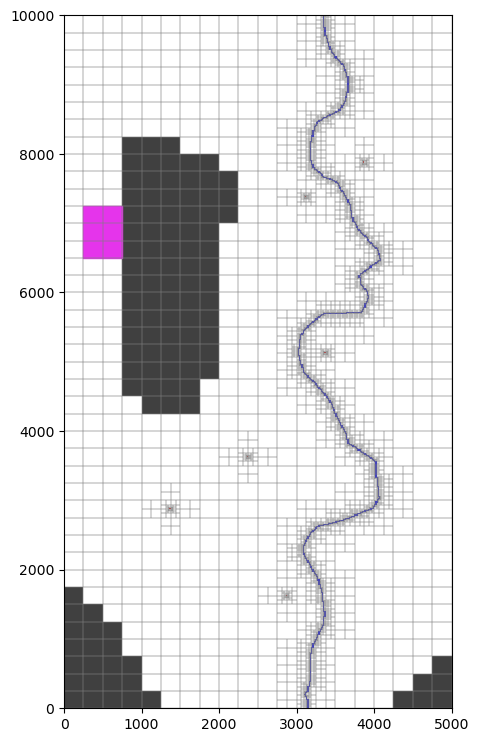

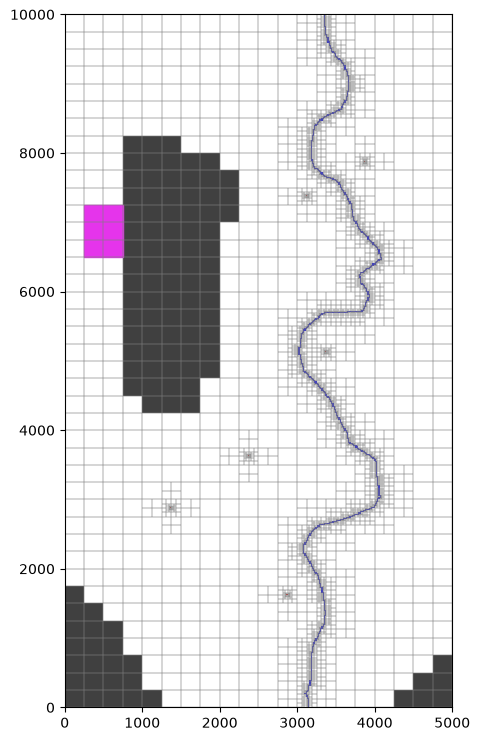

Plot the model grid and the location of the contamination patch
[15]:
fig, ax = plt.subplots(figsize=(5, 9))
mm = flopy.plot.PlotMapView(gwf, layer=0, ax=ax)
mm.plot_bc('SFR', color="b", plotAll=True)
mm.plot_bc('WEL', plotAll=True)
mm.plot_inactive(alpha=0.75)
mm.plot_grid(lw=0.25, color='grey')
ax.fill(csx, csy, color='#e534eb');
Get the model cells intersecting the contamination patch
The GridIntersect utility in Flopy has an intersect method that can find the model cells intersecting a set of points, lines, or polygons. Since this is a DISV grid, these will be cell2d values (that are the same across the model layers). Similarly, for a structured grid, GridIntersect would return row, column locations.
[16]:
gx = GridIntersect(gwf.modelgrid)
results = gx.intersect(polygon, 'Polygon')
particle_start_nodes = results.cellids.astype(int)
particle_start_nodes
[16]:
array([1352, 1353, 1459, 1460, 1581, 1582])
Instantiate the MODFLOW 6 prt model
and discretization packages
[17]:
prt_sim = flopy.mf6.MFSimulation(sim_name=prt_name, sim_ws=prt_model_ws)
# Instantiate the MODFLOW 6 temporal discretization package
flopy.mf6.modflow.mftdis.ModflowTdis(
prt_sim,
time_units="DAYS",
nper=1,
perioddata=[(1, 1, 1)], # perlen, nstp, tsmult
)
prt = flopy.mf6.ModflowPrt(
prt_sim, modelname=prt_name, model_nam_file=f"{prt_name}.nam"
)
# Instantiate the MODFLOW 6 prt discretization package
nlay, ncells_per_layer = gwf.dis.botm.array.shape
disv = flopy.mf6.ModflowGwfdisv(
prt,
nlay=nlay,
ncpl=gwf.dis.ncpl.array,
nvert=gwf.dis.nvert.array,
length_units=gwf.dis.length_units.array,
top=gwf.dis.top.array,
botm=gwf.dis.botm.array,
vertices=gwf.dis.vertices.array,
cell2d=gwf.dis.cell2d.array,
idomain=gwf.dis.idomain.array,
xorigin=gwf.dis.xorigin.array,
yorigin=gwf.dis.yorigin.array,
)
Instantiate the MODFLOW 6 PRT Model Input Package.
First make an ``izone`` array with a zone number for each cell. The “izone” for the model cell will be reported in the PRT output, allowing us to more easily track where particles go, and where they ultimately discharge. For example, if we start particles at the water table, we can determine the contributing area for a stream or other boundary condition, by assigning an izone to those cells. One of the izone numbers can be designated as an istopzone; particles entering this zone will be
terminated regardless of whether the zone is a strong sink or not.
In this example, we’ll assign different izone numbers to SFR and Well Package cells.
[18]:
# start with a default zone of 0
izone_array = np.zeros((nlay, ncells_per_layer), dtype=int)
# get the locations of SFR cells
sfr_k, sfr_cellid = zip(*gwf.sfr.packagedata.array['cellid'])
sfr_k[:10], sfr_cellid[:10]
izones = {
'wel': 1,
'sfr': 2
}
Assign SFR cells to zone 2
[19]:
izone_array[sfr_k, sfr_cellid] = izones['sfr']
Assign wells to zone 1 Using the stress period data. Note that in models with more than one stress period, different wells may be represented in different stress periods.
[20]:
well_k = list()
well_cellid = list()
for per, recarray in gwf.wel.stress_period_data.data.items():
well_k_per, well_cellid_per = zip(*recarray['cellid'])
well_k.append(well_k_per)
well_cellid.append(well_cellid_per)
izone_array[well_k, well_cellid] = izones['wel']
Make the package
[21]:
flopy.mf6.ModflowPrtmip(prt,
porosity=0.1,
izone=izone_array
)
[21]:
package_name = mip
filename = project-prt.mip
package_type = mip
model_or_simulation_package = model
model_name = project-prt
Block griddata
--------------------
porosity
{constant 0.1}
izone
Layer_1{internal}
(array([0, 0, 0, ..., 0, 0, 0], shape=(5108,), dtype=int32))
Layer_2{internal}
(array([0, 0, 0, ..., 0, 0, 0], shape=(5108,), dtype=int32))
Layer_3{internal}
(array([0, 0, 0, ..., 0, 0, 0], shape=(5108,), dtype=int32))
Create the particle start data
From the nodes intersecting the polygon we made above, develop a DataFrame of particle start locations. For simplicity, we are just starting a single particle in each cell, but since the x and y are in local (model) coordinates, it would be fairly straightforward to start multiple particles in each cell on a finer spacing.
[22]:
# release particles at each row, column location
prt_start_x, prt_start_y = gwf.modelgrid.get_local_coords(
gwf.modelgrid.xcellcenters[particle_start_nodes],
gwf.modelgrid.ycellcenters[particle_start_nodes])
prt_start_data = pd.DataFrame({
'irptno': np.arange(len(prt_start_x.ravel())),
'k': 0,
'cell2d': particle_start_nodes,
'xrpt': prt_start_x.ravel(),
'yrpt': prt_start_y.ravel(),
# start particles near top of saturation in cell with local_z=True
'zrpt': particle_release_zrpt, #[1] * len(prt_i) ,
# generic boundname for now;
# could be used to differentiate source areas
'boundname': [f'prt_{cell2d}' for cell2d in particle_start_nodes]
})
#prt_start_data = prt_particle_data
prt_start_data
[22]:
| irptno | k | cell2d | xrpt | yrpt | zrpt | boundname | |
|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 1352 | 375.0 | 7125.0 | 0.99 | prt_1352 |
| 1 | 1 | 0 | 1353 | 625.0 | 7125.0 | 0.99 | prt_1353 |
| 2 | 2 | 0 | 1459 | 375.0 | 6875.0 | 0.99 | prt_1459 |
| 3 | 3 | 0 | 1460 | 625.0 | 6875.0 | 0.99 | prt_1460 |
| 4 | 4 | 0 | 1581 | 375.0 | 6625.0 | 0.99 | prt_1581 |
| 5 | 5 | 0 | 1582 | 625.0 | 6625.0 | 0.99 | prt_1582 |
Alternatively, the Modflow 6 Examples illustrate functionality in Flopy to generate evenly spaced particles along cell faces for MODPATH models, and then convert the results to PRT format (if you can get it to work; search the MODFLOW 6 Examples repository for “ModflowPrtprp”)
[23]:
sd = flopy.modpath.CellDataType()
mp7_particle_data = flopy.modpath.NodeParticleData(subdivisiondata=sd,
nodes=[cell2d for cell2d in particle_start_nodes])
prt_particle_data = list(mp7_particle_data.to_prp(prt.modelgrid, localz=True))
prt_particle_data
[23]:
[(0,
(0, 1352),
np.float64(291.6666666666667),
np.float64(7041.666666666667),
0.16666666666666666),
(1,
(0, 1352),
np.float64(375.0),
np.float64(7041.666666666667),
0.16666666666666666),
(2,
(0, 1352),
np.float64(458.33333333333337),
np.float64(7041.666666666667),
0.16666666666666666),
(3,
(0, 1352),
np.float64(291.6666666666667),
np.float64(7125.0),
0.16666666666666666),
(4, (0, 1352), np.float64(375.0), np.float64(7125.0), 0.16666666666666666),
(5,
(0, 1352),
np.float64(458.33333333333337),
np.float64(7125.0),
0.16666666666666666),
(6,
(0, 1352),
np.float64(291.6666666666667),
np.float64(7208.333333333334),
0.16666666666666666),
(7,
(0, 1352),
np.float64(375.0),
np.float64(7208.333333333334),
0.16666666666666666),
(8,
(0, 1352),
np.float64(458.33333333333337),
np.float64(7208.333333333334),
0.16666666666666666),
(9,
(0, 1352),
np.float64(291.6666666666667),
np.float64(7041.666666666667),
0.5),
(10, (0, 1352), np.float64(375.0), np.float64(7041.666666666667), 0.5),
(11,
(0, 1352),
np.float64(458.33333333333337),
np.float64(7041.666666666667),
0.5),
(12, (0, 1352), np.float64(291.6666666666667), np.float64(7125.0), 0.5),
(13, (0, 1352), np.float64(375.0), np.float64(7125.0), 0.5),
(14, (0, 1352), np.float64(458.33333333333337), np.float64(7125.0), 0.5),
(15,
(0, 1352),
np.float64(291.6666666666667),
np.float64(7208.333333333334),
0.5),
(16, (0, 1352), np.float64(375.0), np.float64(7208.333333333334), 0.5),
(17,
(0, 1352),
np.float64(458.33333333333337),
np.float64(7208.333333333334),
0.5),
(18,
(0, 1352),
np.float64(291.6666666666667),
np.float64(7041.666666666667),
0.8333333333333333),
(19,
(0, 1352),
np.float64(375.0),
np.float64(7041.666666666667),
0.8333333333333333),
(20,
(0, 1352),
np.float64(458.33333333333337),
np.float64(7041.666666666667),
0.8333333333333333),
(21,
(0, 1352),
np.float64(291.6666666666667),
np.float64(7125.0),
0.8333333333333333),
(22, (0, 1352), np.float64(375.0), np.float64(7125.0), 0.8333333333333333),
(23,
(0, 1352),
np.float64(458.33333333333337),
np.float64(7125.0),
0.8333333333333333),
(24,
(0, 1352),
np.float64(291.6666666666667),
np.float64(7208.333333333334),
0.8333333333333333),
(25,
(0, 1352),
np.float64(375.0),
np.float64(7208.333333333334),
0.8333333333333333),
(26,
(0, 1352),
np.float64(458.33333333333337),
np.float64(7208.333333333334),
0.8333333333333333)]
Instantiate the MODFLOW 6 prt particle release point (PRP) package
Notes:
local_z—indicates that “zrpt” [in the particle start data] defines the local z coordinate of the release point within the cell, with value of 0 at the bottom and 1 at the top of the cell. If the cell is partially saturated at release time, the top of the cell is considered to be the water table elevation (the head in the cell) rather than the top defined by the user.
istopzone—integer value defining the stop zone number. If cells have been assigned IZONE values in the GRIDDATA block, a particle terminates if it enters a cell whose IZONE value matches ISTOPZONE. An ISTOPZONE value of zero indicates that there is no stop zone. The default value is zero. This way we can allow weak sinks but have exceptions where the particles will stop anyways.
See the MODFLOW 6 Description of Input and Output for more options
[24]:
flopy.mf6.ModflowPrtprp(
prt,
nreleasepts=len(prt_start_data),
#packagedata=prt_particle_data,
packagedata=prt_start_data.to_records(index=False).tolist(),
local_z=True,
boundnames=True,
perioddata={0: ["FIRST"]},
exit_solve_tolerance=1e-5,
extend_tracking=True,
#istopzone=istopzone
)
[24]:
package_name = prp_0
filename = project-prt.prp
package_type = prp
model_or_simulation_package = model
model_name = project-prt
Block options
--------------------
boundnames
{internal}
(True)
exit_solve_tolerance
{internal}
(1e-05)
local_z
{internal}
(True)
extend_tracking
{internal}
(True)
Block dimensions
--------------------
nreleasepts
{internal}
(6)
Block packagedata
--------------------
packagedata
{internal}
(rec.array([(0, (0, 1352), 375., 7125., 0.99, 'prt_1352'),
(1, (0, 1353), 625., 7125., 0.99, 'prt_1353'),
(2, (0, 1459), 375., 6875., 0.99, 'prt_1459'),
(3, (0, 1460), 625., 6875., 0.99, 'prt_1460'),
(4, (0, 1581), 375., 6625., 0.99, 'prt_1581'),
(5, (0, 1582), 625., 6625., 0.99, 'prt_1582')],
dtype=[('irptno', '<i8'), ('cellid', 'O'), ('xrpt', '<f8'), ('yrpt', '<f8'), ('zrpt', '<f8'), ('boundname', 'O')]))
Block period
--------------------
perioddata
{internal}
(rec.array([('FIRST', None)],
dtype=[('releasesetting', 'O'), ('releasesetting_data', 'O')]))
Instantiate the MODFLOW 6 PRT output control package
Notes: PRT outputs a record each time a:
particle was released
particle exited a cell
time step ended
particle terminated
particle entered a weak sink cell
user-specified tracking time
The code below shows how to input user-specified tracking times to Flopy. Depending on the problem, this may not be necessary in a real-world context, as there may already be many records from particles exiting cells. Therefore, tracktimes=None (no user-specified times) is ultimately input to Flopy.
[25]:
budget_record = [budgetfile_prt]
track_record = [trackfile_prt]
trackcsv_record = [trackcsvfile_prt]
# track positions every year for 100 years
track_nyears = 100
tracktimes = np.linspace(0, track_nyears*365.25, track_nyears+1)
flopy.mf6.ModflowPrtoc(
prt,
budget_filerecord=budget_record,
track_filerecord=track_record,
trackcsv_filerecord=trackcsv_record,
ntracktimes=0,#len(tracktimes),
tracktimes=None,#[(t,) for t in tracktimes],
saverecord=[("BUDGET", "ALL")],
)
[25]:
package_name = oc
filename = project-prt.oc
package_type = oc
model_or_simulation_package = model
model_name = project-prt
Block options
--------------------
budget_filerecord
{internal}
(rec.array([('project-prt.cbc',)],
dtype=[('budgetfile', 'O')]))
track_filerecord
{internal}
(rec.array([('project-prt.trk',)],
dtype=[('trackfile', 'O')]))
trackcsv_filerecord
{internal}
(rec.array([('project-prt.trk.csv',)],
dtype=[('trackcsvfile', 'O')]))
Block dimensions
--------------------
ntracktimes
{internal}
(0)
Block period
--------------------
saverecord
{internal}
(rec.array([('BUDGET', 'ALL', None)],
dtype=[('rtype', 'O'), ('ocsetting', 'O'), ('ocsetting_data', 'O')]))
printrecord
None
Instantiate the PRT Flow Model Interface and Explicit Model Solution Packages
[26]:
fmi_pd = [
("GWFHEAD", os.path.relpath(gwf_ws / headfile, prt_model_ws)), #Path(f"../{gwf_ws.name}/{headfile}")),
("GWFBUDGET", os.path.relpath(gwf_ws / budgetfile, prt_model_ws)) #Path(f"../{gwf_ws.name}/{budgetfile}")),
]
flopy.mf6.ModflowPrtfmi(prt, packagedata=fmi_pd)
# Create an explicit model solution (EMS) for the MODFLOW 6 prt model
ems = flopy.mf6.ModflowEms(
prt_sim,
filename=f"{prt_name}.ems",
)
prt_sim.register_solution_package(ems, [prt.name])
Write the PRT input files and run the model
[27]:
prt_sim.write_simulation()
writing simulation...
writing simulation name file...
writing simulation tdis package...
writing solution package ems_-1...
writing model project-prt...
writing model name file...
writing package disv...
writing package mip...
writing package prp_0...
writing package oc...
writing package fmi...
[28]:
prt_sim.run_simulation()
FloPy is using the following executable to run the model: ../../../../../../../../../../.local/bin/mf6
MODFLOW 6
U.S. GEOLOGICAL SURVEY MODULAR HYDROLOGIC MODEL
VERSION 6.7.0 02/05/2026
MODFLOW 6 compiled Feb 05 2026 22:38:38 with Intel(R) Fortran Intel(R) 64
Compiler Classic for applications running on Intel(R) 64, Version 2021.6.0
Build 20220226_000000
This software has been approved for release by the U.S. Geological
Survey (USGS). Although the software has been subjected to rigorous
review, the USGS reserves the right to update the software as needed
pursuant to further analysis and review. No warranty, expressed or
implied, is made by the USGS or the U.S. Government as to the
functionality of the software and related material nor shall the
fact of release constitute any such warranty. Furthermore, the
software is released on condition that neither the USGS nor the U.S.
Government shall be held liable for any damages resulting from its
authorized or unauthorized use. Also refer to the USGS Water
Resources Software User Rights Notice for complete use, copyright,
and distribution information.
MODFLOW runs in SEQUENTIAL mode
Run start date and time (yyyy/mm/dd hh:mm:ss): 2026/06/18 20:06:41
Writing simulation list file: mfsim.lst
Using Simulation name file: mfsim.nam
Solving: Stress period: 1 Time step: 1
ERROR REPORT:
1. Error in PRP: Flow model interface does not contain
ICELLTYPE. ICELLTYPE is required for PRT to distinguish convertible
cells from confined cells if LOCAL_Z release coordinates are provided.
Make sure a GWFGRID entry is configured in the PRT FMI package.
[28]:
(False, [])
Post-Process the MODFLOW and PRT Results
Load MODFLOW and PRT results from the heads and pathline files
Load the MODFLOW heads
[29]:
hobj = gwf.output.head()
[30]:
hds = hobj.get_data()
Load the tracking CSV file
[31]:
particle_data = pd.read_csv(prt_model_ws / trackcsvfile_prt)
particle_data.head()
[31]:
| kper | kstp | imdl | iprp | irpt | ilay | icell | izone | istatus | ireason | trelease | t | x | y | z | name |
|---|

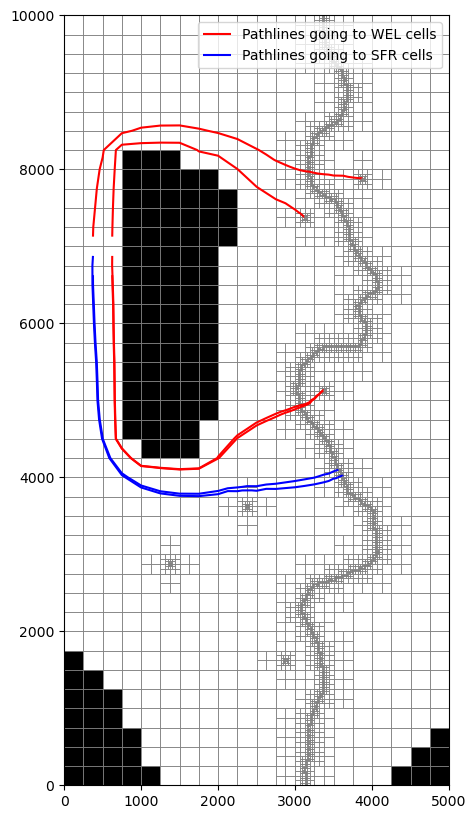

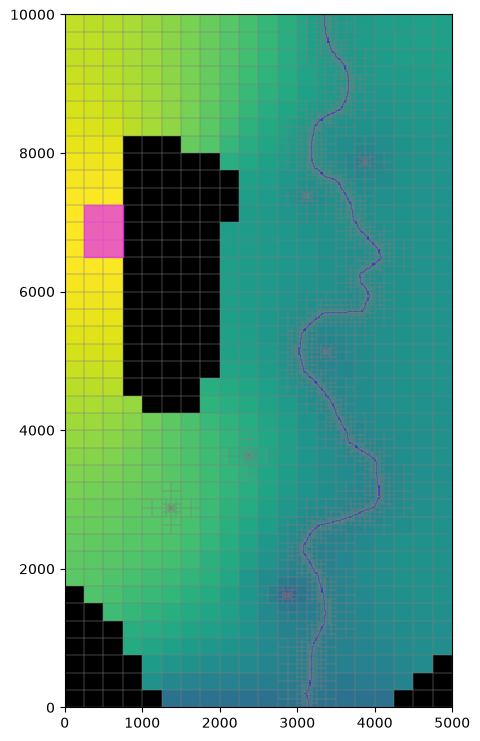

Plot the heads and pathlines
[32]:
fig, ax = plt.subplots(figsize=(5, 9))
mm = flopy.plot.PlotMapView(model=gwf, layer=0, ax=ax)
mm.plot_array(hds, masked_values=[1e30])
mm.plot_bc('SFR', color='b', plotAll=True)
mm.plot_bc('WEL', plotAll=True)
mm.plot_ibound()
mm.plot_pathline(particle_data, layer='all', color='blue', lw=1)
mm.plot_grid(lw=0.2, color="0.5")
ax = plt.gca()
ax.fill(csx, csy, color='#e534eb', zorder=100, alpha=.75);

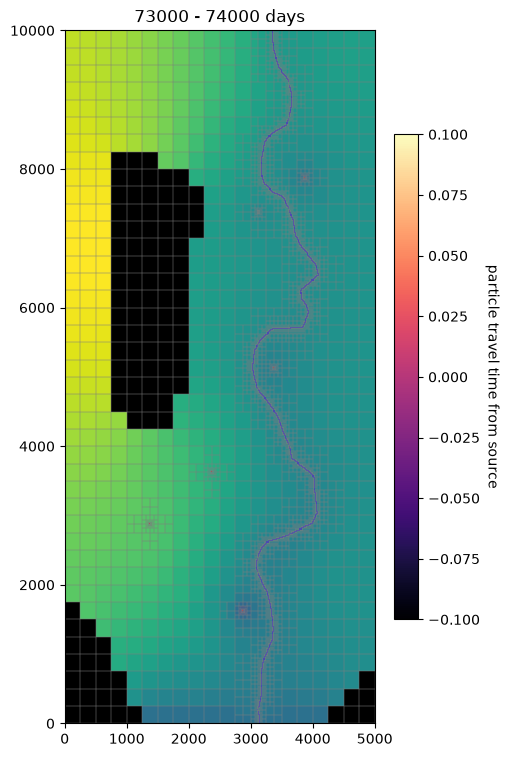

[33]:
fig, ax = plt.subplots(figsize=(5, 9))
mm = flopy.plot.PlotMapView(model=gwf, ax=ax, layer=0)
mm.plot_array(hds, masked_values=[1e30])
mm.plot_bc('SFR', color='b', plotAll=True)
mm.plot_bc('WEL', plotAll=True)
mm.plot_ibound()
mm.plot_grid(lw=0.2, color="0.5")
df = particle_data
vmin, vmax = df['t'].min(), df['t'].max()
times = list(range(0, 74001, 1000))
for ix in range(1, len(times)):
tmp = df[(df['t'] >= times[ix - 1]) & (df['t'] < times[ix])]
s = ax.scatter(tmp['x'].values, tmp['y'].values, s=5, c=tmp['t'].values,
vmin=vmin, vmax=vmax, cmap="magma")
ax.set_title(f"{times[ix - 1]} - {times[ix]} days")
if ix == 1:
cbar = fig.colorbar(s, shrink=0.7)
cbar.set_label('particle travel time from source', rotation=270, labelpad=14)
display(fig)
clear_output(wait=True)
plt.pause(0.1)
Export the pathlines to a GeoPackage
GeoPackages allow for subsequent adding of layers; delete any pre-existing version of this GeoPackage to clear any pre-existing layers (often good practice in real projects).
[34]:
output_geopackage = Path(prt_model_ws / 'Pathlines.gpkg')
output_geopackage.unlink(missing_ok=True)
In the real world, the model coordinates also need to be converted to real world coordinates.
We may also want to convert the travel times from the typical model time units of days to years.
We may want to decompose the
cellidinto model layer (k) andcell2d(location in each layer, in this case), or layer, row column if the model has a regular structured grid.Finally, the GeoDataFrame will need a coordinate reference (to write to the GeoPackage) defining the coordinate reference system for the real-world coordinates (for example, UTM zone 15 north, represented by EPSG code 29615).
[35]:
gwf.modelgrid.crs # no CRS attached
[36]:
gwf.modelgrid.crs = 26915
[37]:
df['t_years'] = df['t'] / 325.25
df['k'] = df['icell'] // ncells_per_layer
df['cell2d'] = df['icell'] % ncells_per_layer
[38]:
x_crs, y_crs = gwf.modelgrid.get_coords(df['x'], df['y'])
gdf = gpd.GeoDataFrame(df,
geometry=gpd.points_from_xy(x_crs, y_crs),
crs=gwf.modelgrid.crs)
/home/runner/micromamba/envs/pyclass-docs/lib/python3.14/site-packages/flopy/discretization/grid.py:973: Pandas4Warning: The copy keyword is deprecated and will be removed in a future version. Copy-on-Write is active in pandas since 3.0 which utilizes a lazy copy mechanism that defers copies until necessary. Use .copy() to make an eager copy if necessary.
x, y = x.astype(float, copy=True), y.astype(float, copy=True)
/home/runner/micromamba/envs/pyclass-docs/lib/python3.14/site-packages/flopy/discretization/grid.py:973: Pandas4Warning: The copy keyword is deprecated and will be removed in a future version. Copy-on-Write is active in pandas since 3.0 which utilizes a lazy copy mechanism that defers copies until necessary. Use .copy() to make an eager copy if necessary.
x, y = x.astype(float, copy=True), y.astype(float, copy=True)
Write particles terminating in Well and SFR cells to separate layers
[39]:
for package, izone in izones.items():
layer_name = f"Particles going to {package.upper()} cells"
izone_df = gdf.loc[gdf['izone'] == izone]
izone_df.to_file(output_geopackage, index=False, layer=layer_name)
gdf.loc[gdf['izone'] == 0].to_file(
output_geopackage, index=False, layer='All other particles')
The previous layers that we added to the GeoPackage were points representing particle locations at discrete points in time. We can also combine these in to pathlines (linestrings) to better visualize the paths taken by the particles. In real-world projects, for example where are particle is started in every cell of a large model, we may also have too many points to work with easily; showing a single pathline for each particle may be advantageous.
[40]:
from shapely.geometry import LineString
# create set of pathlines with start and end information
# first group by particle
by_particle = gdf.sort_values(by=['irpt', 't']).groupby('irpt')
lines = by_particle.last()
lines.crs = gdf.crs # CRS isn't retained in groupby
lines.rename(columns={'k': 'end_k', 'cell2d': 'end_cell2d'}, inplace=True)
line_starts = by_particle.first()
lines['start_k'] = line_starts['k']
lines['start_cell2d'] = line_starts['cell2d']
# above we sorted the results by particle and then time
# use the .agg method on the grouby object to create a LineString
# from the (sorted) sequence of points defining each particle path
linestring_geoms = by_particle['geometry'].agg(lambda x: LineString(x))
lines['geometry'] = linestring_geoms
[41]:
for package, izone in izones.items():
layer_name = f"Pathlines going to {package.upper()} cells"
izone_df = lines.loc[lines['izone'] == izone]
izone_df.to_file(output_geopackage, index=False, layer=layer_name)
izone_df.loc[izone_df['izone'] == 0].to_file(
output_geopackage, index=False, layer='All other pathlines')
Plot pathlines going to SFR and WEL cells
[42]:
fig, ax = plt.subplots(figsize=(6, 10))
pmv = flopy.plot.PlotMapView(gwf, ax=ax)
pmv.plot_grid(lw=0.5)
line_colors = {
'sfr': 'b',
'wel': 'r'
}
for package, izone in izones.items():
izone_df = lines.loc[lines['izone'] == izone]
izone_df.plot(ax=ax, ec=line_colors[package],
label=f'Pathlines going to {package.upper()} cells')
lines.loc[lines['izone'] == 0].plot(
ax=ax, ec='g',
label=f'All other pathlines')
pmv.plot_ibound()
pmv.ax.legend()
/tmp/ipykernel_12697/3686669298.py:10: UserWarning: The GeoDataFrame you are attempting to plot is empty. Nothing has been displayed.
izone_df.plot(ax=ax, ec=line_colors[package],
/tmp/ipykernel_12697/3686669298.py:12: UserWarning: The GeoDataFrame you are attempting to plot is empty. Nothing has been displayed.
lines.loc[lines['izone'] == 0].plot(
/tmp/ipykernel_12697/3686669298.py:16: UserWarning: No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
pmv.ax.legend()
[42]:
<matplotlib.legend.Legend at 0x7fe2fe4a0440>
[43]:
lines
[43]:
| kper | kstp | imdl | iprp | ilay | icell | izone | istatus | ireason | trelease | ... | x | y | z | name | t_years | end_k | end_cell2d | geometry | start_k | start_cell2d | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| irpt |
0 rows × 21 columns
References
Abrams, D., Haitjema, H. and Kauffman, L. (2013), On Modeling Weak Sinks in MODPATH. Groundwater, 51: 597-602. https://doi.org/10.1111/j.1745-6584.2012.00995.x
